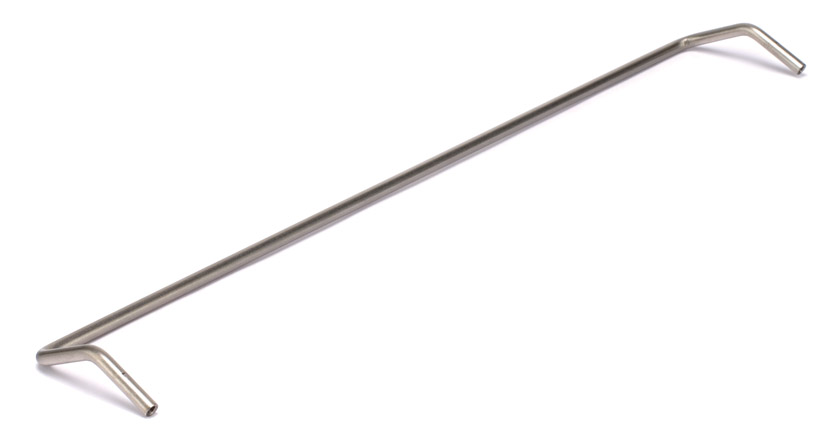

CANFORD LACING BAR For angled tailgate panel, cranked, 65mm

Stock code
45-3044
Brand
Canford
GTIN
5056704792920
CANFORD LACING BAR For angled tailgate panel, cranked, 65mm
CANFORD LACING BAR For angled tailgate panel, cranked, 65mmCANFORD LACING BAR For angled tailgate panel, cranked, 65mm

CANFORD LACING BARS

Used for the orderly management of cables wired to such items as jackfields and connector panels, these simple items of hardware are offered to the installer or custom builder as a convenient method of tidying cable looms etc.

Jackfield types

Manufactured from stainless steel rod, bent into a ‘flattened U’ shape, tapped at each end with a mounting thread. Type A is as used on Mosses & Mitchell type bantam jackfields. Type B is as used on Mosses & Mitchell type B-gauge jackfields. Type C is a variation of Type B, for use when the cable has to be tied offset from the mounting points, giving angled ends to the lacing bar, allowing a 22.6mm deviation of the tying cross section of the bar relative to the mounting points. Supplied complete with both nickel finish and black finish countersunk fixing screws.

Technical Specification:
45-028 45-029 45-027
Type A Type B Type C
Rod diameter (mm): 6.3 6.3 6.3
Mounting pitch (mm): 435 420.7 420.7
Stand off from panel (mm): 90 110 90
Thread × depth (mm): M4 × 12 M4 × 12 M4 × 12

Tailgate Types

Other variations are offered for use with the Canford "flat" and "angled" tailgate panels in various depths.

Technical Specification:
45-3041 45-3042 45-3043 45-3044
Rod diameter (mm): 6.35 6.35 6.35 6.35
Mounting pitch (mm): 422.6 414.6 422.6 414.6
Stand off from panel (mm): 97 99 65 65
Thread × depth (mm): M4 × 10.5 M4 × 10.5 M4 × 10.5 M4 × 10.5
Note:

For customers wishing to use a lacing bar solution for individual Universal series connectors, on smaller or custom-made panels, the Canford designed U-bar provides a mini lacing bar solution as well as replacing the rear nuts fixings that are required. See CANFORD UNIVERSAL CONNECTOR U-BAR - Lacing bar for details.
