FUSEHOLDER 20mm

Stock code
42-201
FUSEHOLDER 20mm
FUSEHOLDER 20mmFUSEHOLDER 20mmFUSEHOLDER 20mmFUSEHOLDER 20mm

FUSES AND FUSEHOLDERS

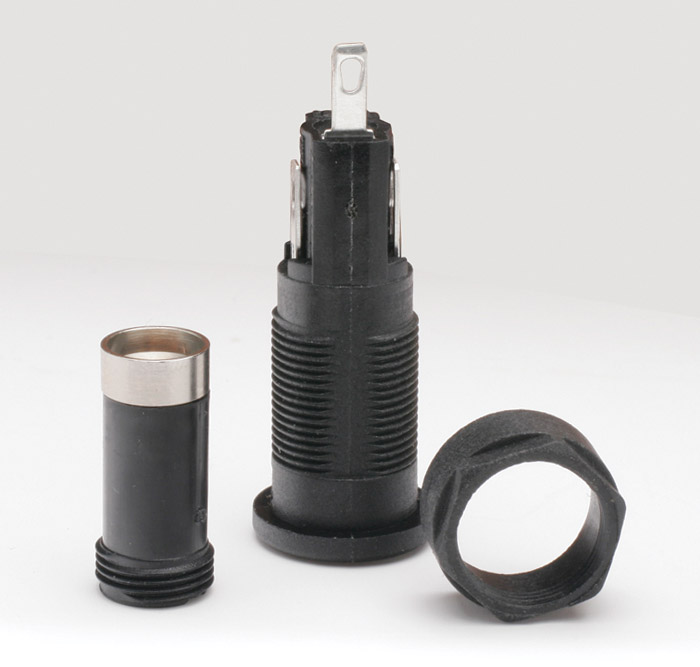

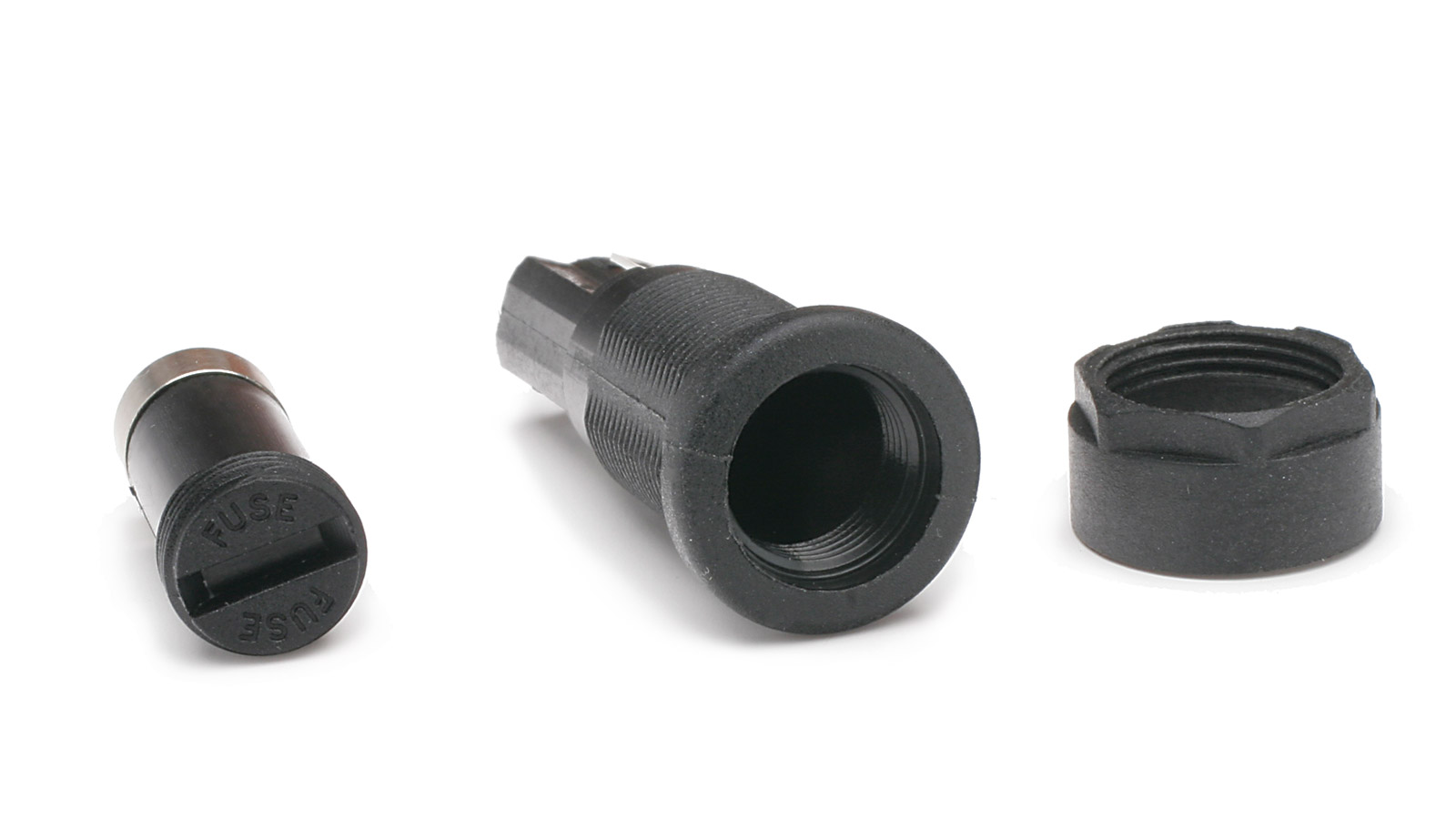

Fuseholder

Low-profile panel mounting (12.8mm hole) with ‘pip’ keyway, touch-safe (to BS3042, IE257) screwdriver release 20mm fuse carrier. Hex nut fixing, max panel thickness 6.4mm. Depth behind panel 38mm. Terminals accept 2.8mm push-on receptacles, or can be directly soldered. Rated 10A, 250V AC. Moulded insulating covers also available.

20mm HBC ceramic fuses

20 × 5mm ceramic fuses, delay types, rated for up to 250V AC, and have breaking capacity of 1500 amps. They comply with BS4265 and IEC127. Pack of 10.

1 inch (25.4mm) HBC ceramic fuses

25.4 × 6.3mm ceramic fuses, for use in UK domestic 13 amp plugs. Rated 240V AC, comply with BS1362. ASTA certified. Pack of 10.

Usage note:

For mains input fuses, the use of HBC types is preferred.

Ordering note:

Fuse holders and covers are priced and sold singly. Fuses are priced and sold in packs of 10, eg. 1 ×42-282 orders 1 pack of 10 fuses 20mm delay 250mA.

  Description Price £
ex. VAT
Add to basket
Delivery
FUSEHOLDER 20mm Stock code: 42-201
92 in stock Need more?
1+ £3.64
10+ £3.46
FUSEHOLDER 20mm insulating cover, red Red Stock code: 42-209
20 in stock Need more?
1+ £0.74
10+ £0.70
FUSES 20mm HBC DELAY 125mA (Pack of 10) Stock code: 42-283
2 in stock Need more?
1+ £4.75
5+ £4.61
FUSES 20mm HBC DELAY 250mA (pack of 10) Stock code: 42-282
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ £7.10
5+ £6.89
per pack
FUSES 20mm HBC DELAY 500mA (pack of 10) Stock code: 42-276
3 in stock Need more?
1+ £4.75
5+ £4.61
per pack
FUSES 20mm HBC DELAY 1A (pack of 10) Stock code: 42-271
8 in stock Need more?
1+ £2.81
5+ £2.73
per pack
FUSES 20mm HBC DELAY 2A (pack of 10) Stock code: 42-272
2 in stock Need more?
1+ £4.75
5+ £4.61
per pack
FUSES 20mm HBC DELAY 3.15A (pack of 10) Stock code: 42-273
Ordered on demand, available in 1‑2 working days. Need it sooner? Call us
1+ £4.75
5+ £4.61
per pack
FUSES 20mm HBC DELAY 5A (pack of 10) Stock code: 42-274
Ordered on demand, available in 1‑2 working days. Need it sooner? Call us
1+ £4.75
5+ £4.61
per pack
FUSES 20mm HBC DELAY 6.3A (pack of 10) Stock code: 42-275
2 in stock Need more?
1+ £4.75
5+ £4.61
per pack
FUSES 20mm HBC DELAY 10A (pack of 10) Stock code: 42-281
11 in stock Need more?
1+ £4.69
5+ £4.55
per pack
FUSES 1 inch HBC 3A (pack of 10) Stock code: 42-292
Ordered on demand, available in 1‑2 working days. Need it sooner? Call us
1+ £2.30
5+ £2.23
per pack
FUSES 1 inch HBC 5A (pack of 10) Stock code: 42-293
2 in stock Need more?
1+ £2.68
5+ £2.60
per pack
FUSES 1 inch HBC 13A (pack of 10) Stock code: 42-295
6 in stock Need more?
1+ £2.30
5+ £2.23
per pack
