C&K 7101MYZQE TOGGLE SWITCH 6.35mm bush, 1 pole, 2 position, on/on

Stock code
58-241
Brand
C&K
Model number
  • 7101MYZQE
C&K 7101MYZQE TOGGLE SWITCH 6.35mm bush, 1 pole, 2 position, on/on
C&K 7101MYZQE TOGGLE SWITCH 6.35mm bush, 1 pole, 2 position, on/on

C&K MINIATURE TOGGLE SWITCHES

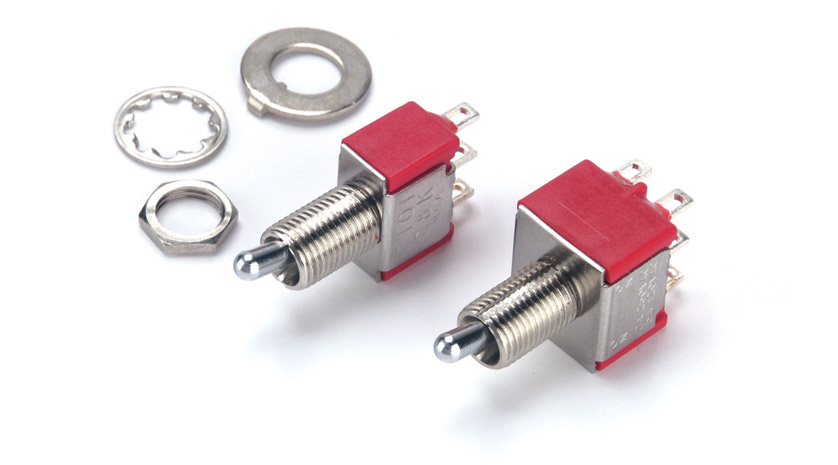

C&K manufacture an extremely large number of switches. The 7000 series of miniature toggle switches comes in a variety of versions, one being the "M" toggle variety. This has a short, recessed lever, that withstands knocks and is extremely resistant to damage. The "21" toggle variety has a broad black plastic lever, with a rectangular mounting profile. The "J2" type is for PCB mounting behind a panel, without bezel.

Contact rating: 2A @ 120VAC, 5A @ 28VDC
Mounting bush (M toggle): 6.35mm diameter × 9mm (1/4–40NS)
Mounting bush (21 toggle and bezel): 6.35mm diameter × 9mm (1/4–40NS)
Stock code Type code Poles Switching (position 1/2/3) Actuator Termination
58-241 7101 1 ON/NONE/ON Recessed metal toggle, threaded bush Solder tab, silver
58-242 7201 2 ON/NONE/ON Recessed metal toggle, threaded bush Solder tab, silver
58-243 7211 2 ON/ON/ON Recessed metal toggle, threaded bush Solder tab, gold
58-244 7207 2 ON/OFF/MOM Black plastic lever, black plastic bezel Solder tab, gold
58-245 7101 1 ON/NONE/ON Black plastic lever PCB pins, gold
