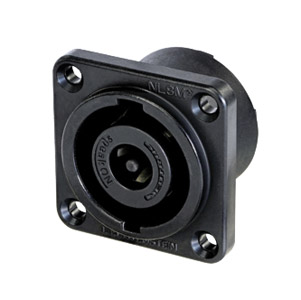

NEUTRIK NL8MPRXX-BAG SPEAKON Panel connector

Stock code
43-084
Brand
Neutrik
Model number
  • NL8MPR-BAG
NEUTRIK NL8MPRXX-BAG SPEAKON Panel connector

NEUTRIK SPEAKON LOUDSPEAKER CONNECTORS - Panel types

The Neutrik ‘Speakon’ loudspeaker/amplifier connectors are robust, versatile, easy to assemble, and are used extensively by amplifier and loudspeaker manufacturers as their standard connector.

The contacts are designed to operate with high currents and inductive loads, and to prevent any damage from arcing when disconnected under load. All contacts are touch-proof and the connectors meet the safety requirements of IEC60065 (“test finger” procedures). Contacts are rated 30A RMS 250VAC (unless stated otherwise), with high inrush/outrush capability (300A 200mSec).

Panel connectors are all airtight, 'male' pattern, and with silver plated contacts (except NL4MP-B). 2 and 4-pole types (except NL4MPRXX) use the Neutrik 'D' series panel cutout. All panel connectors (except NL4MP-ST and NL4MPXX-UC) have male 4.8mm tab terminals, designed to accept 'Faston' female crimp connectors. NL4MPXX-UC, a higher current rated version, accepts larger 6.3mm 'Faston' connectors, available from most electrical parts retailers. 'Faston' crimps are a special version of the traditional tab connectors incorporating a spring latch, which engages with a hole in the tab to permit more secure retention even in the event of vibration, and are recommended by Neutrik for use with the Speakon range. 'Tab' connectors are also known as 'spade' connectors.

NL2MPXX Mates with 2-pole cable connector only. 30A rating.
NL2MDXX-V As NL2MPXX but for PCB mounting (vertical)
NL2MDXX-H As NL2MPXX but for PCB mounting (horizontal) and for self-tap screws.
NL4MPXX Mates with 2-pole and 4-pole cable connectors. 30A rating.
NL4MPXX-3 As NL4MPXX but for self-tap screws
NL4MP-M3 As NL4MP but with M3 tapped screw inserts
NL4MP-B As NL4MPXX but gold plated contacts
NL4MDXX-V As NL4MPXX but for PCB mounting (vertical)
NL4MDXX-V-3 As NL4MDXX-V but for self-tap screws
NL4MDXX-V-2 As NL4MDXX-V but with mirrored position mounting holes
NL4MDXX-V-S As NL4MDXX-V but switched (used for splitting away crossovers)
NL4MD-H As NL4MP but for PCB mounting (horizontal), grey housing, for self-tap screws
NL4MD-H-1 As NL4MD-H but black housing and normal plain fixing holes
NL4MDXX-H-2 As NL4MD-H-1 but with mirrored position mounting holes
NL4MDXX-H-3 As NL4MD-H-1 but for self-tap screws
NL4MPRXX As NL4MPXX but round front plate (EP/AP style panel cutout)
NL4MPXX-UC As NL4MPXX but 6.3mm x 0.5mm tab terminals. 40A rating. The larger “Faston” crimp connectors also permit “daisy chain” wiring
NL4MP-ST As NL4MP but screw terminals
SPMRC Moulded soft rear insulating cover (“boot”) for NL2MP, NL4MP and NL4MPR (not suitable for other versions).
NL8MPRXX Mates with 8 pole cable connector. 30A rating. Square nickel finish front plate (EP/AP style panel cutout).
NL8MPRXX-BAG As NL8MPRXX but black chrome metal front plate.
NL8MDXX-V-BAG As NL8MPRXX-BAG but for PCB mounting (vertical).
  Description Price £
ex. VAT
Add to basket
Delivery
NEUTRIK NL2MPXX SPEAKON Panel connector Stock code: 43-039
31 in stock. Need more?
1+ £2.42
10+ £2.20
50+ £2.08
100+ £1.84
NEUTRIK NL2MDXX-V SPEAKON Panel connector, PCB mounting vertical Stock code: 43-409
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £2.58
10+ £2.35
50+ £2.22
100+ £1.96
NEUTRIK NL2MDXX-H-3 SPEAKON Panel connector, PCB mounting horizontal Stock code: 43-408
41 in stock. Need more?
£3.10
Clearance
£1.00
NEUTRIK NL4MPXX SPEAKON Panel connector Stock code: 43-042
154 in stock. Need more?
1+ £2.00
10+ £1.82
50+ £1.72
100+ £1.52
NEUTRIK NL4MPXX-3 SPEAKON Panel connector Stock code: 43-414
90 in stock. Need more?
1+ £2.00
10+ £1.82
50+ £1.72
100+ £1.52
NEUTRIK NL4MP-M3 SPEAKON Panel connector Stock code: 43-420
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK NL4MP-B SPEAKON Panel connector, gold plated contacts Gold Stock code: 43-059
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £3.96
10+ £3.60
50+ £3.41
100+ £3.01
NEUTRIK NL4MDXX-V SPEAKON Panel connector, PCB mounting vertical Stock code: 43-046
80 in stock. Need more?
1+ £2.30
10+ £2.09
50+ £1.98
100+ £1.75
NEUTRIK NL4MDXX-V-3 SPEAKON Panel connector, PCB mounting vertical Stock code: 43-418
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £2.36
10+ £2.15
50+ £2.03
100+ £1.79
NEUTRIK NL4MDXX-V-2 SPEAKON Panel connector, PCB mounting vertical Stock code: 43-419
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £2.70
10+ £2.46
50+ £2.32
100+ £2.05
NEUTRIK NL4MD-V-S SPEAKON Panel connector, PCB mnt. vertical, switched Stock code: 43-051
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK NL4MD-H SPEAKON Panel connector, PCB mounting horizontal Stock code: 43-040
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK NL4MD-H-1 SPEAKON Panel connector, PCB mounting horizontal Stock code: 43-410
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK NL4MDXX-H-2 SPEAKON Panel connector, PCB mounting horizontal Stock code: 43-411
5 in stock. Need more?
1+ £3.10
10+ £2.82
50+ £2.67
100+ £2.36
NEUTRIK NL4MDXX-H-3 SPEAKON Panel connector, PCB mounting horizontal Stock code: 43-412
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £3.02
10+ £2.75
50+ £2.60
100+ £2.30
NEUTRIK NL4MPRXX SPEAKON Panel connector Stock code: 43-045
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £2.80
10+ £2.55
50+ £2.41
100+ £2.13
NEUTRIK NL4MPXX-UC SPEAKON Panel connector Stock code: 43-057
58 in stock. Need more?
1+ £3.68
10+ £3.35
50+ £3.16
100+ £2.80
NEUTRIK NL4MP-ST SPEAKON Panel connector Stock code: 43-038
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ £4.98
10+ £4.53
50+ £4.28
100+ £3.78
CANFORD SPMRC Moulded rear cover, red Red Stock code: 43-018
2 in stock. Need more?
1+ £1.13
10+ £1.03
50+ £0.97
100+ £0.86
NEUTRIK NL8MPRXX SPEAKON Panel connector Stock code: 43-085
2 in stock. Need more?
1+ £8.32
10+ £7.57
50+ £7.16
100+ £6.32
NEUTRIK NL8MPRXX-BAG SPEAKON Panel connector Stock code: 43-084
Temporarily out of stock, expected on: 18/05/2022.
1+ £8.32
10+ £7.57
50+ £7.16
100+ £6.32
NEUTRIK NL8MDXX-V-BAG SPEAKON Panel connector, PCB mounting vertical Stock code: 43-086
Ordered on demand, available in Call.
1+ £9.28
10+ £8.44
50+ £7.98
100+ £7.05
NEUTRIK NLFASTON Crimp spade terminals 4.8mm (pack of 100) Stock code: 43-047
7 in stock. Need more?
1+ £22.91
5+ £21.54
per pack
