NEUTRIK SPEAKON LOUDSPEAKER CONNECTORS - Panel types

The Neutrik ‘Speakon’ loudspeaker/amplifier connectors are robust, versatile, easy to assemble, and are used extensively by amplifier and loudspeaker manufacturers as their standard connector.

The contacts are designed to operate with high currents and inductive loads, and to prevent any damage from arcing when disconnected under load. All contacts are touch-proof and the connectors meet the safety requirements of IEC60065 (“test finger” procedures). Contacts are rated 30A RMS 250VAC (unless stated otherwise), with high inrush/outrush capability (300A 200mSec).

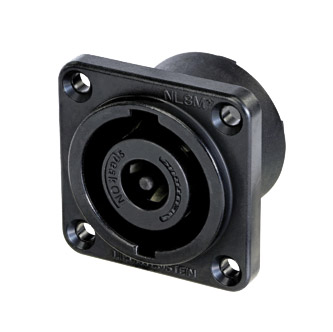

SP and SPX series panel connectors

Panel connectors are all airtight, 'male' pattern, and with silver plated contacts (except NL4MP-B). 2 and 4-pole types (except NL4MPR) use the Neutrik 'D' series panel cutout. All panel connectors (except NL4MP-ST and NL4MP-UC) have male 4.8mm tab terminals, designed to accept 'Faston' female crimp connectors. NL4MP-UC, a higher current rated version, accepts larger 6.3mm 'Faston' connectors, available from most electrical parts retailers. 'Faston' crimps are a special version of the traditional tab connectors incorporating a spring latch, which permit more secure retention even in the event of vibration, and are recommended by Neutrik for use with the Speakon range. 'Tab' connectors are also known as 'spade' connectors.

NL2MP	Mates with 2-pole cable connector only. 30A rating.
NL2MDV	As NL2MP but for PCB mounting (vertical)
NL2MDH	As NL2MP but for PCB mounting (horizontal)
NL4MP	Mates with 2-pole and 4-pole cable connectors. 30A rating
NL4MP3	As NL4MP but for self-tap screws
NL4MP-M3	As NL4MP but with M3 tapped screw inserts
NL4MPB	As NL4MP but gold plated contacts
NL4MD-V	As NL4MP but for PCB mounting (vertical)
NL4MD-V-1	As NL4MD-V but grey housing and for self-tap screws
NL4MD-V-2	As NL4MD-V but with mirrored position mounting holes
NL4MD-V-S	As NL4MD-V but switched (used for splitting away crossovers)
NL4MD-H	As NL4MP but for PCB mounting (horizontal), grey housing, for self-tap screws
NL4MD-H-1	As NL4MD-H but black housing and normal plain fixing holes
NL4MD-H-2	As NL4MD-H-1 but with mirrored position mounting holes
NL4MD-H-3	As NL4MD-H-1 but for self-tap screws
NL4MPR	As NL4MP but round front plate (EP/AP style panel cutout)
NL4MP-UC	As NL4MP but 6.3mm x 0.5mm tab terminals. 40A rating. The larger “Faston” crimp connectors also permit “daisy chain” wiring
NL4MP-ST	As NL4MP but screw terminals
SPMRC	Moulded soft rear insulating cover (“boot”) for NL2MP, NL4MP and NL4MPR (not suitable for other versions).
NL8MPR	Mates with 8 pole cable connector. 30A rating. Square nickel finish front plate (EP/AP style panel cutout).
NL8MPR-BAG	As NL8MPR but black chrome metal front plate.
NL8MD-V-BAG	As NL8MPR-BAG but for PCB mounting (vertical).

Pin convention (AES45 standard, provisional IEC standard)
