This cable enables the connection of an external earpiece/headphones and separate microphone to any Tecpro headset outstation. Typical applications include in-vision where the presenter wears an earpiece and reverse talkback uses a split feed of the presenter’s microphone; alternatively, a headset station is remotely sited and a separate microphone and headphones are used.
Please note we do not recommend the use of cables greater than 5 m with this lead.

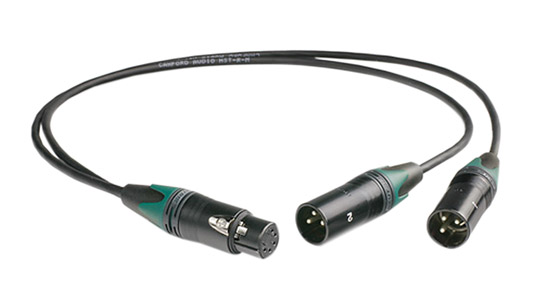

There are two standard 'Y'- leads available to enable transfer from separately wired dual circuit systems to systems using 5-pin connectors. Both leads utilise 0.5m HST-R-M cable, YL971 has two 3-pin male XLRs to one 5-pin female XLR, YL972 has two 3-pin female XLRs and one 5-pin male XLR. XLR 5-pin connectors have green glands to identify them as intercom circuit cables.
There are two standard 'Y'- leads available to enable transfer from separately wired dual circuit systems to systems using 6 pin connectors. Both leads utilise 0.5m HST-R-M cable, YL917 has two 3 pin male XLRs and one 6 pin female XLR, YL918 has two 3 pin female XLRs to one 6 pin male XLR.
