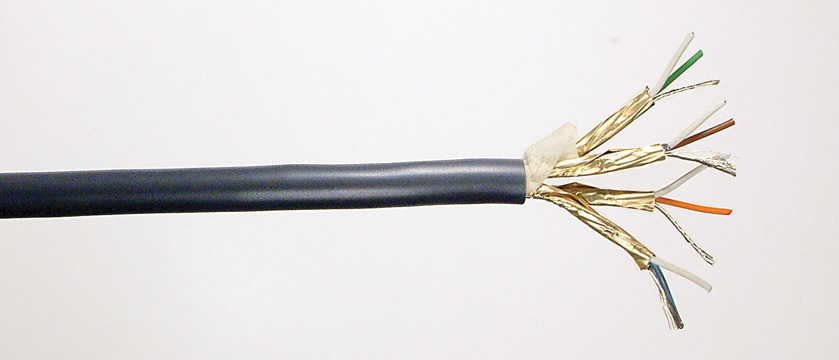

CANFORD FSM CABLE 4 pair, Black

Stock code
31-004
Brand
Canford
Model number
  • FSM4
  • FSM
GTIN
5056704795358
Colour
  • BlackBlack
CANFORD FSM CABLE 4 pair, Black
CANFORD FSM CABLE 4 pair, BlackCANFORD FSM CABLE 4 pair, Black

CANFORD FSM SERIES - FOIL SCREENED STRANDED CONDUCTOR MULTIPAIR CABLE

This D'n'A series (Digital and Analogue) cable is designed to be suitable for both digital and analogue audio signals, with an impedance of 100 ohms which has been proven to be suitable for AES/EBU digital audio as well as analogue microphone and line level signals. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene).

Technical Specification:
Conductors: 30/0.10mm (0.235mm²) tinned copper wire
Insulation: Foamed polypropylene, 1.50mm overall diamater, according to IEC Cable Colour Codes
Lay-up: Two insulated conductors twisted together, laid up with 30/0.10mm tinned copper drain wire, overall aluminium/polyester "S-profile" foil tape screen
Overall jacket: Soft PVC, black, printed with metre markings
Impedance: 100 ohms (+/- 10 ohms)
Pair capacitance: 41pF/m core to core, 102pF/m core + core to screen
Overall diameter: FSM2 7.1mm, FSM4 9.0mm, FSM8 11.0mm, FSM12 14.1mm, FSM16 17.3mm, FSM24 19.6mm
Weight (kg/100 metres): FSM2 4.3kg, FSM4 6.8kg, FSM8 11.4kg, FSM12 16.5kg, FSM16 22.3kg, FSM24 32.7kg
Reel lengths: 1000m (FSM2, FSM4), 500m (FSM8, FSM12)
Cut lengths: Available in any multiple of 1 metre
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD FSM CABLE 2 pair, Black Black Stock code: 31-002
Ordered on demand, available in Call.
3 cable oddments available
1+ £1.97
100+ £1.58
500+ £1.54
1,000+ £1.48
per metre
CANFORD FSM CABLE 4 pair, Black Black Stock code: 31-004
3974 in stock Need more?
1 cable oddment available
1+ £2.58
100+ £2.06
500+ £2.01
1,000+ £1.94
per metre
CANFORD FSM CABLE 8 pair, Black Black Stock code: 31-008
7811 in stock Need more?
1 cable oddment available
1+ £5.00
100+ £4.00
500+ £3.90
1,000+ £3.75
per metre
CANFORD FSM CABLE 12 pair, Black Black Stock code: 31-012
1783 in stock Need more?
4 cable oddments available
1+ £7.52
100+ £6.02
500+ £5.87
1,000+ £5.64
per metre
CANFORD FSM CABLE 16 pair, Black Black Stock code: 31-016
Discontinued. Please contact Technical Support for alternatives.
CANFORD FSM CABLE 24 pair, Black Black Stock code: 31-024
Discontinued. Please contact Technical Support for alternatives.
1 cable oddment available
