CANFORD HSJ - DOUBLE HELICAL SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE

The softest, “sexiest”, most flexible multipair in the world? Probably! Canford’s ultimate development, using the latest composite plastics technology. A multipair cable for users requiring an individually jacketed pair construction. HSJ8 is designed specifically to fit into the 20 way metal EDAC multiway connector covers.

Technical Specification:

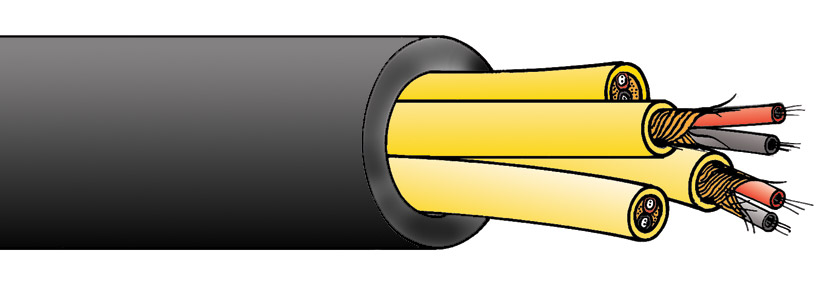

Construction: Twin conductors of plain copper wire, PVC insulated, twisted together, 2 helically wound plain copper wire screens opposite lays (“Reussen” screen), PVC jacketed. A number of these cores numbered and laid up together, sheathed overall soft semi-matt extra-flexible PVC
Pair conductors: 25/0.1 (0.19mm²) plain copper wire
Pair insulation: PVC OD 1.0mm, red, black
Screen 1: 48/0.1mm plain copper wire, wound helically left hand lay
Screen 2: 48/0.1mm plain copper wire, wound helically right hand lay
Pair jacket: PVC, Yellow. OD 2.8mm
Overall lay-up: Each individual jacket sequentially numbered along its length
Outer sheath: Soft semi-matt PVC, Black
Overall diameter: HSJ4 8.5mm, HSJ8 11.5mm, HSJ16 15.5mm
Capacitance: 150pF/metre core to core 280pF/metre core to core +screen
Maximum conductor resistance: 92 ohms/km
Weight (kg/100m): HSJ4 9.5kg, HSJ8 18.9kg, HSJ16 33.4kg
Reel length: 500 metres
Cut lengths: Available in any multiple of 1 metre
  Description Price (£) Add to basket
Show carriage
CANFORD HSJ CABLE 4 pair, Black Black Stock code: 31-454
Please login for stock availability and lead times.
1+ £3.36
100+ £2.69
500+ £2.62
1,000+ £2.52
per metre
CANFORD HSJ CABLE 8 pair, Black Black Stock code: 31-458
Please login for stock availability and lead times.
1+ £7.97
100+ £6.38
500+ £6.22
1,000+ £5.98
per metre
CANFORD HSJ CABLE 16 pair, Black Black Stock code: 31-466
Please login for stock availability and lead times.
1+ £15.28
100+ £12.22
500+ £11.92
1,000+ £11.46
per metre
