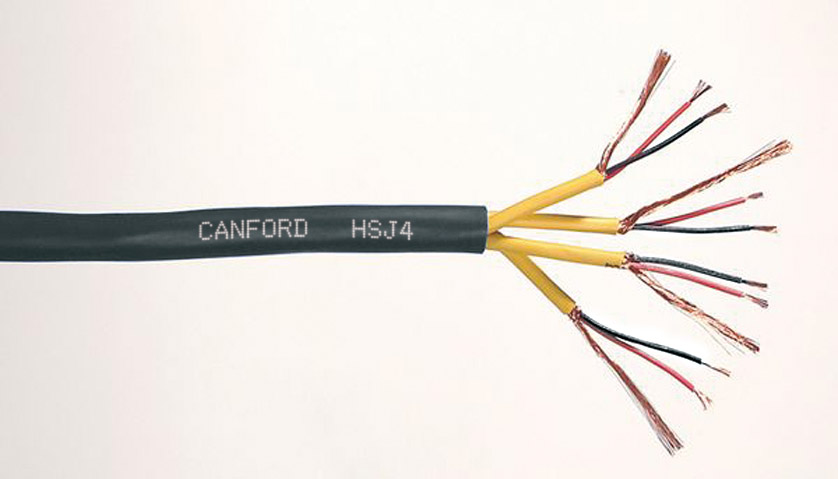

CANFORD HSJ CABLE 4 pair, Black

Stock code
31-454
Brand
Canford
Model number
  • HSJ4
  • HSJ
GTIN
5056704741607
Colour
  • BlackBlack
CANFORD HSJ CABLE 4 pair, Black
CANFORD HSJ CABLE 4 pair, BlackCANFORD HSJ CABLE 4 pair, Black

Order

VAT / Delivery
$7.45
per metre (ex. VAT)
100+ $5.96
500+ $5.82
1,000+ $5.59
Out of stock but available to backorder, stock expected: 21/10/2024.
? 1 cable oddment available
Canford 2 year warranty
RoHS Compliant

CANFORD HSJ - DOUBLE HELICAL SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE

The softest, “sexiest”, most flexible multipair in the world? Probably! Canford’s ultimate development, using the latest composite plastics technology. A multipair cable for users requiring an individually jacketed pair construction. HSJ8 is designed specifically to fit into the 20 way metal EDAC multiway connector covers.

Technical Specification:
Construction: Twin conductors of plain copper wire, PVC insulated, twisted together, 2 helically wound plain copper wire screens opposite lays (“Reussen” screen), PVC jacketed. A number of these cores numbered and laid up together, sheathed overall soft semi-matt extra-flexible PVC
Pair conductors: 25/0.1 (0.19mm²) plain copper wire
Pair insulation: PVC OD 1.0mm, red, black
Screen 1: 48/0.1mm plain copper wire, wound helically left hand lay
Screen 2: 48/0.1mm plain copper wire, wound helically right hand lay
Pair jacket: PVC, Yellow. OD 2.8mm
Overall lay-up: Each individual jacket sequentially numbered along its length
Outer sheath: Soft semi-matt PVC, Black
Overall diameter: HSJ4 8.5mm, HSJ8 11.5mm, HSJ16 15.5mm
Capacitance: 150pF/metre core to core 280pF/metre core to core +screen
Maximum conductor resistance: 92 ohms/km
Weight (kg/100m): HSJ4 9.5kg, HSJ8 18.9kg, HSJ16 33.4kg
Reel length: 500 metres
Cut lengths: Available in any multiple of 1 metre
