CANFORD CABLE DRUM CDR310

Stock code
35-5032
Brand
Canford
Model number
  • CDR310
GTIN
5056704712645

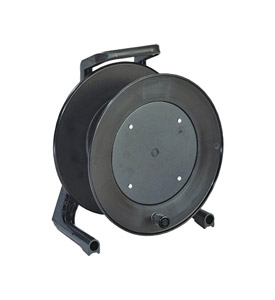

CANFORD CABLE DRUM CDR310
CANFORD CABLE DRUM CDR310

CANFORD CABLE DRUMS - Rubber drum

This range of extremely durable cable-drums all have drums made from synthetic rubber, with moulded high-strength plastic frames. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums are available with three different styles of side flange - with blanking-plate, with cable tail supports or with hinged access door.

‘Blank plate’ versions have a removeable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable. ‘Cable tail’ types have an open hub plus four brackets on the flange face to enable the cable tail to be brought out from the hub of the drum at a gentle angle (important for coaxial and essential for fibre cables) and coiled and secured around the brackets. ‘Hinged access door’ types have a latching door, enabling cable tails to be safely stored inside during un-reeling, re-reeling, storage and transport.

Models CDR235 and CDR310 have a fixed winding-handle on the drum flange, CDR380 and CDR450 have a folding handle. Drums and frames are black. This range of rubber cable drums carries a five year warranty.

Dimensions

Code Model Flange Hub Hub Flange Weight
diam.(mm) diam.(mm) width(mm) style (kg)
35-5031 CDR235 235mm 135mm 110mm Blank plate 1.20
35-5032 CDR310 310mm 170mm 112mm Blank plate 2.20
35-5033 CDR380 380mm 236mm 166mm Blank plate 4.60
35-5034 CDR450 445mm 295mm 177mm Blank plate 6.90
35-5035 CDR310CTS 310mm 170mm 112mm Cable tail 2.20
35-5036 CDR380CTS 380mm 236mm 166mm Cable tail 4.60
35-5037 CDR450CTS 445mm 295mm 177mm Cable tail 6.70
35-5038 CDR310HAD 310mm 170mm 112mm Hinged door 2.20
35-5039 CDR380HAD 380mm 236mm 166mm Hinged door 4.60
35-5040 CDR450HAD 445mm 295mm 177mm Hinged door 6.70

Capacities (tight pack)

Code Model 6.5mm cable 12.5mm cable 15.9mm cable
(HST, SDV-L) (FSM12, PSF1/9) (FSJ8, FSM24)
35-5031 CDR235 60m 22m 9m
35-5032 CDR310 118m 26m 24m
35-5033 CDR380 255m 56m 45m
35-5034 CDR450 329m 91m 59m
35-5035 CDR310CTS 118m 26m 24m
35-5036 CDR380CTS 255m 56m 45m
35-5037 CDR450CTS 329m 91m 59m
35-5038 CDR310HAD 118m 26m 24m
35-5039 CDR380HAD 255m 56m 45m
35-5040 CDR450HAD 329m 91m 59m

For help finding a cable drum to meet your requirements see the Cable Drum Capacity Calculator.

Ordering Note

All figures given are based upon a theoretical ‘tight pack’ and do not take into account any maximum weight loadings for drums being exceeded. It is recommended that an allowance of up to 30% be made to accommodate loose winding. A lower percentage could be used if the crew are known to always wind the drums neatly!
