CANFORD CABLE DRUM CDP240
CANFORD CABLE DRUM CDP240CANFORD CABLE DRUM CDP266CANFORD CABLE DRUM CDP280CANFORD CABLE DRUM CDP300CANFORD CABLE DRUM CDP301CANFORD CABLE DRUM CDP380CANFORD CABLE DRUM CDP266UNICANFORD CABLE DRUM CDP266XFMCANFORD CABLE DRUM CDP266XFM

This range of robust and lightweight cable drums all have plastic drums, with frames of either steel tube or moulded high-strength plastic. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums have either a plain side flange, or a flange with a removeable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable.

All models except CDP380 have a fixed winding-handle on the drum flange. The CDP380 has a folding handle Drums are orange, frames are black.

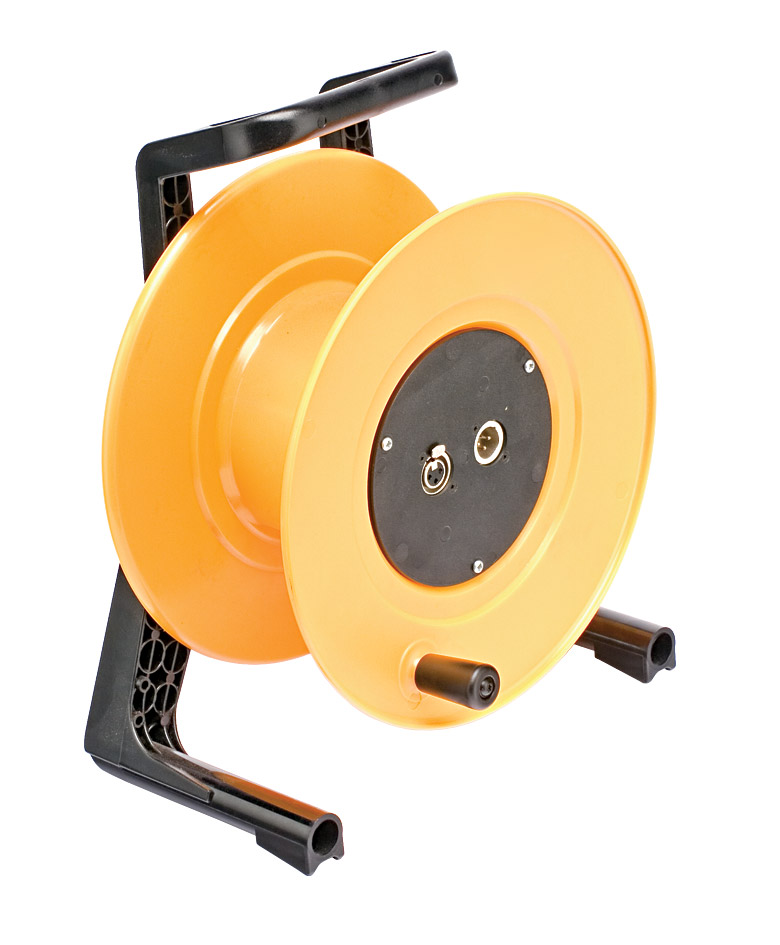

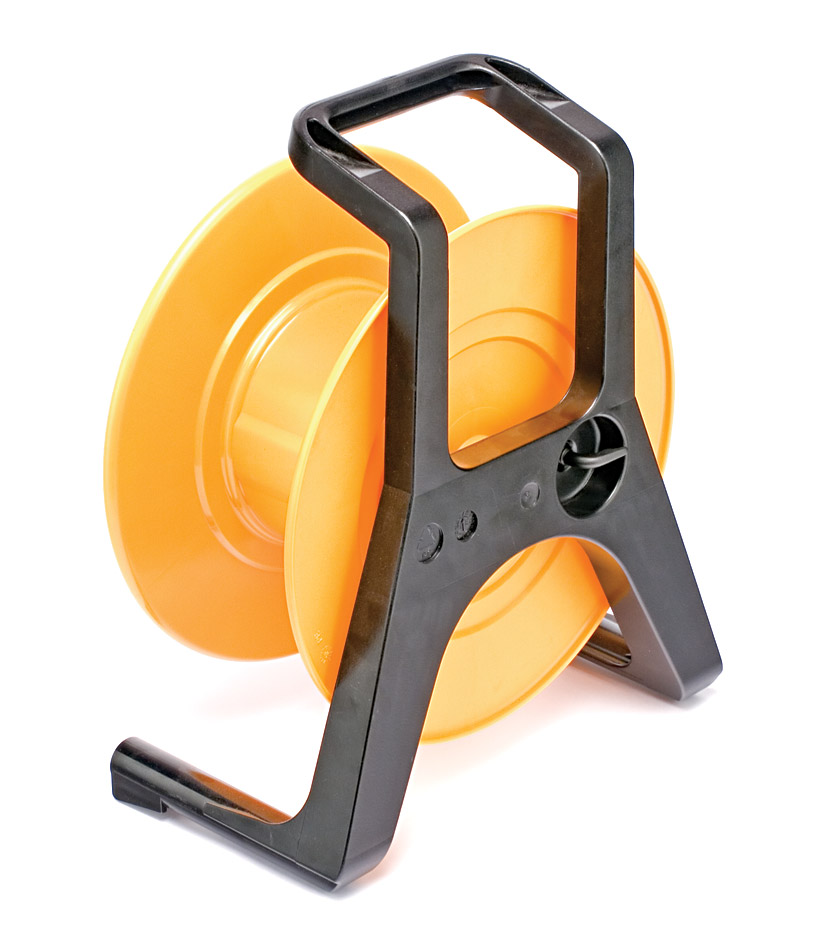

Cable drum type CDP266 is also available with the centre flange punched to accept 2 Neutrik D-series or Canford ‘Universal’ series connectors. CDP266UNI is supplied without connectors or mounting hardware. CDP266XFM is fitted with a Neutrik NC3FD-LX 3-pin female and an NC3MD-LX 3-pin male connector. Dimensions and capacity are the same as the standard CDP266.

Dimensions

Code Model Flange Hub Hub Flange Frame Weight
diam.(mm) diam.(mm) width(mm) style (kg)
35-5001 CDP240 240mm 135mm 125mm Plain Steel 2.00
35-5002 CDP266 280mm 135mm 110mm Blank plate Plastic 1.60
35-5003 CDP280 280mm 153mm 140mm Blank plate Steel 1.80
35-5004 CDP300 305mm 135mm 125mm Plain Plastic 2.14
35-5005 CDP301 305mm 178mm 142mm Blank plate Steel 2.70
35-5006 CDP380 385mm 178mm 142mm Blank plate Steel 4.30

Capacities (tight pack)

Code Model 6.5mm cable 12.5mm cable 15.9mm cable
(HST, SDV-L) (FSM12, PSF1/9) (FSJ8, FSM24)
35-5001 CDP240 85m 28m 11m
35-5002 CDP266 108m 22m 17m
35-5003 CDP280 120m 34m 14m
35-5004 CDP300 161m 36m 20m
35-5005 CDP301 134m 38m 16m
35-5006 CDP380 260m 70m 36m

Ordering Note

All figures given are based upon a theoretical ‘tight pack’ and do not take into account any maximum weight loadings for drums being exceeded. It is recommended that an allowance of up to 30% be made to accommodate loose winding. A lower percentage could be used if the crew are known to always wind the drums neatly!

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD CABLE DRUM CDP240 Stock code: 35-5001
Please login for stock availability and lead times.
1+ £107.70
10+ £105.00
CANFORD CABLE DRUM CDP266 Stock code: 35-5002
Please login for stock availability and lead times.
1+ £63.51
10+ £61.92

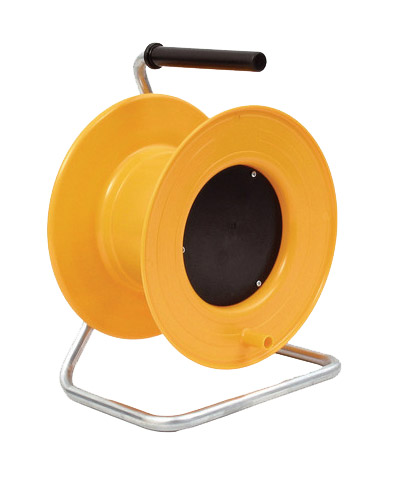

CANFORD CABLE DRUM CDP280 Stock code: 35-5003
Please login for stock availability and lead times.
1+ £55.82
10+ £54.42

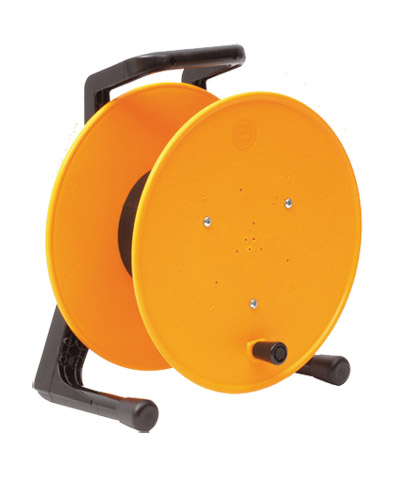

CANFORD CABLE DRUM CDP300 Stock code: 35-5004
Please login for stock availability and lead times.
1+ £121.20
10+ £118.20
CANFORD CABLE DRUM CDP301 Stock code: 35-5005
Please login for stock availability and lead times.
1+ £134.70
10+ £131.30
CANFORD CABLE DRUM CDP380 Stock code: 35-5006
Please login for stock availability and lead times.
1+ £149.30
10+ £145.60
CANFORD CABLE DRUM CDP266UNI Stock code: 35-5007
Please login for stock availability and lead times.
1+ £76.52
10+ £74.61
CANFORD CABLE DRUM CDP266XFM Stock code: 35-5008
Please login for stock availability and lead times.
1+ £85.04
10+ £82.91
