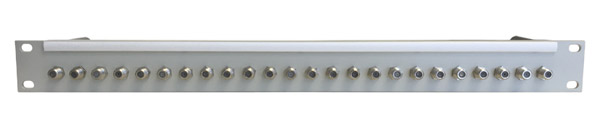

A range of termination panels supplied fully-populated with double-sided F-type female connectors. Typically used for RF distribution, CATV and CCTV. Two types are available as standard to suit different earthing requirements.
Standard types have connectors fitted directly into the panel so are nominally insulated from the panel by the powder coating, but they cannot be classed as either insulated or earthed. The fully-earthed types have an exposed metal area on the rear of the panel under each star washer and mounting nut, giving a guaranteed earth connection between each connector and the panel. They are also fitted with an earthing stud for common connection to a technical earthing point.
Connectors fitted with fully insulating washers may also be supplied to special order.

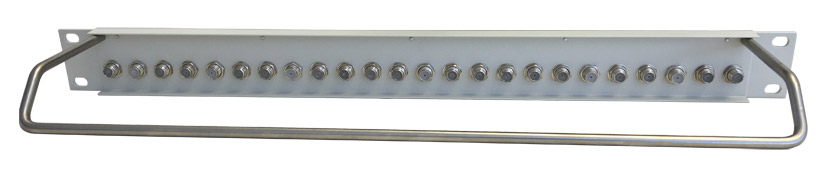

Manufactured from a rigid aluminium extrusion, panels are fitted with cranked lacing-bar to give easy access to the rear sockets. A designation-strip holder with snap-on cover is fitted above the connector row and permit paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.
Available finished in Dawn Grey (BS4800-10A03) or Black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see Designation strips - snap on.
Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.
Manufactured by Canford.
