Canare BNC connectors are true 75 ohm types, with impedance-matched performance characteristics, suitable for HDTV, SDI (serial digital) and analogue video. They fully meet the requirements of the SMPTE424M HDTV specification, and pass DC to 1.5GHz, with >26dB return loss (1.1VSWR) except for BCP-A25F which has >20dB return loss (1.2VSWR). All Canare BNC connectors will mate mechanically with 50 ohm BNC’s.
Canare crimp tool TC-1 (stock code 55-841) should be used, with appropriate jaw set (see Canare crimp tools).
Male cable types

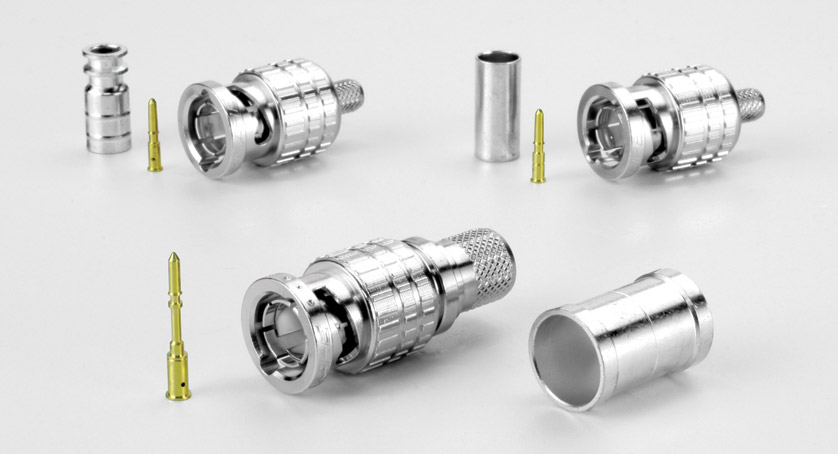

These crimp connectors have an elongated body for better finger grip, and a gold-plated centre pin that snap locks into place. A beryllium-copper outer contact retains its shape exceptionally well, to provide reliable mating. Bodies are nickel plated, and the long crimp ferrule provides for extra cable pull-strength. Silicon rubber strain-relief bushes are also available – see Canare Strain Relief Bushes - BNC, RCA (phono), F type connectors.
Canare connectors for Group Q cables are denoted as Q1 and are suitable for RG59B/U, Canare LV-61S and Belden 8241.
