CANFORD CONNECT BNC CONNECTORS - Male, cable - Crimp - 12G 4K UHD

4 items
CANFORD CONNECT BNC CONNECTORS - Male, cable - Crimp - 12G 4K UHD
CANFORD CONNECT BNC CONNECTORS - Male, cable - Crimp - 12G 4K UHDCANFORD CONNECT CCBNCX BNC 12G, crimp, 75 ohm, Group XCANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group YCANFORD CONNECT CCBNCQ BNC 12G, crimp, 75 ohm, Group QCANFORD CONNECT CCBNCB BNC 12G, crimp, 75 ohm, Belden 1855A, 4855R

These high-performance, 4K, UHDTV, 75 ohm crimp type BNCs have been specifically developed for Canford to meet the demands of the video professional. Rated to 500 mating cycles, these BNC's have nickel plated brass ferrules, nickel plated zinc alloy coupling nut along with a gold plated brass pin to maintain signal integrity. Suitable for video signals up to and including 12GHz.

Stock code Compatibility Cable exceptions Crimp tool
48-6025 Canford Group X Belden 1855A, 4855R see 48-6028 55-8182
48-6026 Canford Group Y Unsuitable for SDV-F (36-550 to 36-559) and SDV-F-R (36-660) 55-8182
48-6027 Canford Group Q Unsuitable for RG59B/U and Canare LV61S 55-8187 or 55-752 with 55-769
48-6028 Belden 1855A, 4855R Unsuitable for other Group X cables 55-8187 or 55-752 with 55-769

Note: For further termination details and full technical specifications please see the relevant datasheets.

Optional accessories: Coloured strain reliefs are recommended for crimp types, see CANFORD STRAIN RELIEF BUSHES - For BNC and MUSA.

For an explanation of the terminology used in this entry and the advantages of crimping and solder termination, as well as advice on termination procedure and choice of connectors and tooling to suit specific cables, please see the linked resources: Crimp Die selection chart, Coaxial connector selection Guide and BNC Connectors - Terminology and Termination.

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD CONNECT CCBNCX BNC 12G, crimp, 75 ohm, Group X Stock code: 48-6025
4469 in stock Need more?
1+ £1.83
10+ £1.75
50+ £1.71
100+ £1.67
CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y Stock code: 48-6026
339 in stock Need more?
1+ £1.83
10+ £1.75
50+ £1.71
100+ £1.67

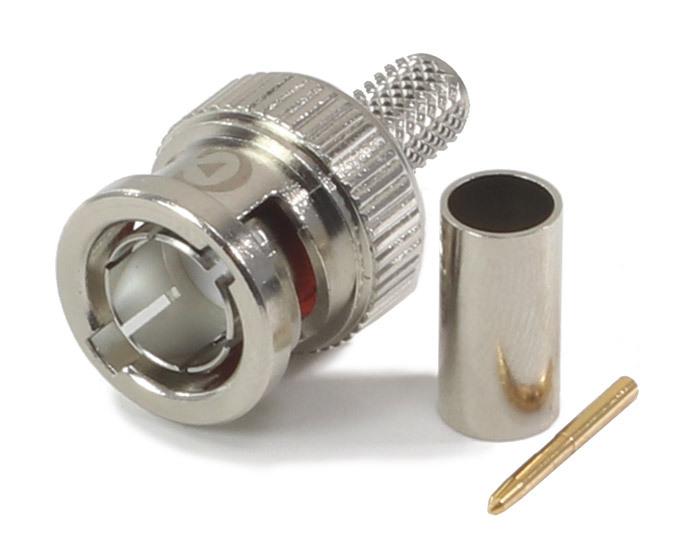

CANFORD CONNECT CCBNCQ BNC 12G, crimp, 75 ohm, Group Q Stock code: 48-6027
917 in stock Need more?
1+ £1.83
10+ £1.75
50+ £1.71
100+ £1.67

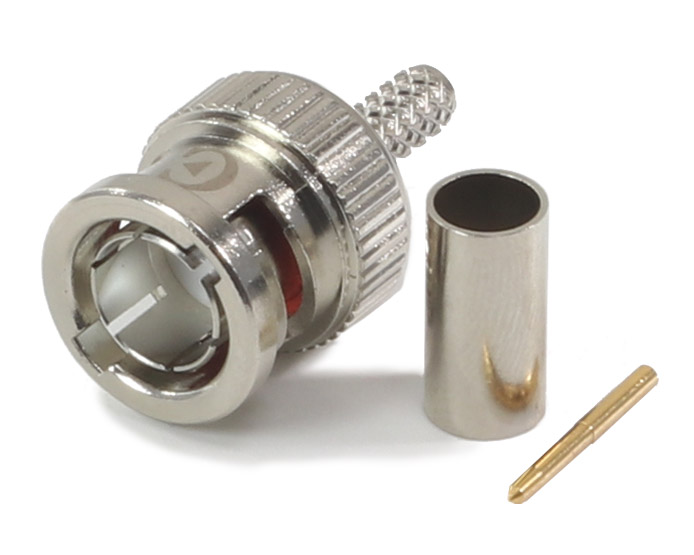

CANFORD CONNECT CCBNCB BNC 12G, crimp, 75 ohm, Belden 1855A, 4855R Stock code: 48-6028
4863 in stock Need more?
1+ £1.83
10+ £1.75
50+ £1.71
100+ £1.67
