COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)

Stock code
48-5072
Brand
Coax Connectors
Model number
  • 10-005-W126-FB
Colour
  • BlackBlack
COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)
COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)

COAX CONNECTORS BNC - Male, cable - Crimp - 12G 4K UHD - KORUS series

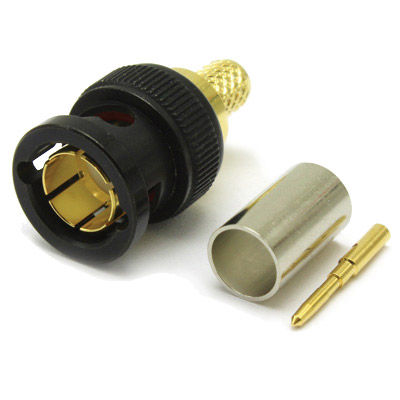

These high-performance, 75 ohm types have been developed specifically for 4K UHDTV applications. They have extremely low return-loss and are rated to 1000 mating cycles. The impedance-matched, gold-plated, crimp centre-pin 'clicks' home into a PTFE insulator in a black nickel plated body with crimp outer sleeve ('ferrule'). Return loss is typically 29dB at 3GHz and 19dB at 12GHz. Straight body and right angled body types are available.

Stock Code Compatibility
48-5076 Belden 1855A
48-5064, 48-5074 Canare L2.5CHWS
48-5061, 48-5071 Canford group X cables including Canford SDV, SDV-LFH, SDV-X-LFH, Belden 1855ENH, 4855R, 4855ANH, 4855ELW, 70080NH, Draka 0.6/2.8AF HD PRO 0.6/2.8AF
48-5065, 48-5075 Canford SDV-UHD-LFH and Draka Ultra HD PRO 50 UHD
48-5062, 48-5072 Most Canford group Q cables including RG59B/U, URM90, Belden 1505A, also Belden 70081NH
48-5078 Belden 1505F
48-5063, 48-5073 Canford group Y cables including SDV-L, SDV-XF, Belden 1694A, 1695A, 4694R, 4694ANH, 4694F, RG6, CT100, CX100 (NOT suitable for SDV-F).
48-5069, 48-5079 Canford group Z cables including SDV-HD, Belden 4731R.
48-5067, 48-5077 Canford SDV-F.
48-5070, 48-5080 Canford SDV-F-HD, SDV-L-UHD, Draka Ultra HD Pro100.
48-5094, 48-5084 Canford SDV-F-UHD

For cable group Y, the standard version of the connector has crimp sizes 1.72mm and 8.23mm. An alternative version is available (code FC1) with the American standard 1.07mm and 7.06mm sizes. The latter is suitable for use with crimp tools designed for American manufactured connectors. Both have ferrules that are 12.7mm long. For Canford group Y flexible video cables, type FC1 should be used with SDV-F and type FC with SDV-XF. Coax Connectors crimp tool 96-HTS-75A (55-8182) should be used with type FC connectors, crimp tool 96-HTS-77 (55-8187) should be used with type FC1 connectors.

Optional accessories: Coloured strain reliefs are recommended for crimp types, see CANFORD STRAIN RELIEF BUSHES - For BNC and MUSA.

Canford offers several ranges of BNC connectors of a less stringent specification, including 75 ohm 3G types for HD-SDI, and 50 ohm types suitable for RF purposes; these are listed separately.

Coax Connectors crimp tools are also stocked, see COAX CONNECTORS CRIMP TOOLS. These are supplied complete with appropriate dies. However tools and dies from other manufacturers may also be used, see Crimp tools. Crimp dies must be the correct type for the connector and cable size. Due to the precise dimensions of the centre pins required to achieve superior performance at UHD bit-rates, crimp-dies used generally for SD BNCs may not be suitable for Coax Connectors BNC 12G UHD connectors.

For an explanation of the terminology used in this entry and the advantages of crimping and solder termination, as well as advice on termination procedure and choice of connectors and tooling to suit specific cables, please see the linked resources: Crimp Die Selection Chart, Coaxial Connector Selection Guide and BNC Connectors - Terminology And Termination.

  Description Price £
ex. VAT
Add to basket
Delivery
COAX CONNS 10-005-W126-EF1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Belden 1855A (pack of 100) Black Stock code: 48-5076
5 in stock Need more?
1+ £266.60
5+ £258.60
per pack
COAX CONNS 10-005-W126-EJ1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Canare L-2.5CHWS Black Stock code: 48-5064
230 in stock Need more?
1+ £3.84
10+ £3.74
50+ £3.65
100+ £3.55
COAX CONNS 10-005-W126-EJ1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Canare L-2.5CHWS (pk of100) Black Stock code: 48-5074
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £351.60
5+ £341.10
per pack
COAX CONNS 10-005-W126-FA BNC 12G UHD Male cable, crimp, 75 ohm, black, group X Black Stock code: 48-5061
Temporarily out of stock but available to backorder, available in 1‑2 working days. Need it sooner? Call us
1+ £2.67
10+ £2.60
50+ £2.54
100+ £2.47
COAX CONNS 10-005-W126-FA BNC 12G UHD Male cable, crimp, 75 ohm, black, group X (pack of 100) Black Stock code: 48-5071
10 in stock Need more?
1+ £245.00
5+ £237.60
per pack
COAX CONNS 10-005-W126-FR BNC 12G UHD Male cable, crimp, 75 ohm, black, SDV-UHD-LFH Black Stock code: 48-5065
554 in stock Need more?
1+ £3.31
10+ £3.23
50+ £3.14
100+ £3.06
COAX CONNS 10-005-W126-FR BNC 12G UHD Male cable, crimp, 75 ohm, black, SDV-UHD-LFH(pack of 100) Black Stock code: 48-5075
11 in stock Need more?
1+ £298.30
5+ £289.30
per pack
COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q Black Stock code: 48-5062
13 in stock Need more?
1+ £2.85
10+ £2.78
50+ £2.71
100+ £2.64
COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100) Black Stock code: 48-5072
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ £261.60
5+ £253.80
per pack
COAX CONNS 10-005-W126-FE BNC 12G UHD Male cable, crimp, 75 ohm, black, Belden 1505F (pack of 100) Black Stock code: 48-5078
No longer manufactured. See the product page for suggested alternatives.
COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y Black Stock code: 48-5063
1297 in stock Need more?
1+ £3.02
10+ £2.94
50+ £2.87
100+ £2.79
COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100) Black Stock code: 48-5073
14 in stock Need more?
1+ £276.60
5+ £268.30
per pack
COAX CONNS 10-005-W126-FC1 BNC 12G UHD Male cable, crimp, 75 ohm, black, USA ferrule, group Y Black Stock code: 48-5067
700 in stock Need more?
1+ £3.13
10+ £3.05
50+ £2.97
100+ £2.90
COAX CONNS 10-005-W126-FC1 BNC 12G UHD Male cable, crimp, 75 ohm, blk, USA ferrule, gp Y (pk of 100) Stock code: 48-5077
4 in stock Need more?
1+ £286.60
5+ £278.00
per pack
COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-L-UHD,SDV-F-HD Black Stock code: 48-5070
68 in stock Need more?
1+ £3.76
10+ £3.67
50+ £3.57
100+ £3.48
COAX CONNS 10-005-W126-FF BNC 12G UHD Male cable, crimp, 75 ohm, black, Canford SDV-F-HD (pk of 100) Black Stock code: 48-5080
7 in stock Need more?
1+ £345.00
5+ £334.60
per pack
COAX CONNS 10-005-W126-FD BNC 12G UHD Male cable, crimp, 75 ohm, black, group Z Black Stock code: 48-5069
49 in stock Need more?
1+ £4.27
10+ £4.16
50+ £4.06
100+ £3.95
COAX CONNS 10-005-W126-FD BNC 12G UHD Male cable, crimp, 75 ohm, black, group Z (pack of 100) Black Stock code: 48-5079
1 in stock Need more?
1+ £391.60
5+ £379.90
per pack
COAX CONNS 10-104-W66-FA BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group X Black Stock code: 48-5081
10 in stock Need more?
1+ £11.85
10+ £11.55
50+ £11.26
100+ £10.96
COAX CONNS 10-104-W66-FA BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp X (pack of 100) Black Stock code: 48-5091
Assembled to order, available in 3‑5 working days. Need it sooner? Call us
1+ £1,080.00
5+ £1,050.00
per pack
COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y Black Stock code: 48-5082
28 in stock Need more?
1+ £11.18
10+ £10.90
50+ £10.62
100+ £10.34
COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100) Black Stock code: 48-5092
Assembled to order, available in 3‑5 working days. Need it sooner? Call us
1+ £1,020.00
5+ £994.00
per pack
COAX CONNS 10-005-W126-FS BNC 12G UHD Male cable, crimp, 75 ohm, black, SDV-F-UHD (Pack of 100) Black Stock code: 48-5094
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ £361.60
5+ £350.80
per pack
COAX CONNS 10-005-W126-FS BNC 12G UHD Male cable, crimp, 75 ohm, black, SDV-F-UHD Black Stock code: 48-5084
100 in stock Need more?
1+ £3.95
5+ £3.83
