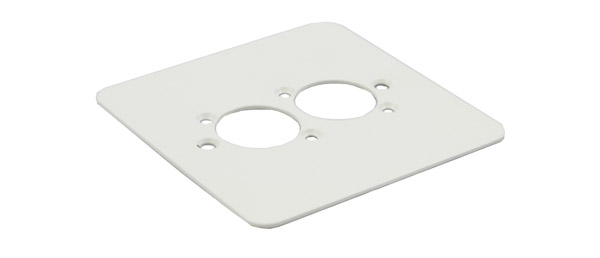

CANFORD F2W CONNECTOR PLATE 1-gang, 2 mounting holes, white

Stock code
49-614
Brand
Canford
Model number
  • F2W
GTIN
5056704714175
Colour
  • WhiteWhite
CANFORD F2W CONNECTOR PLATE 1-gang, 2 mounting holes, white
CANFORD F2W CONNECTOR PLATE 1-gang, 2 mounting holes, white

CANFORD CONNECTOR PLATES

A large range of plates designed to fit BS4662 and BS1363 standard electrical flush or surface boxes. Plates are supplied with mounting holes for 1, 2, 3, 4, 6 or 8 connectors in the Canford “Universal” or Neutrik “D” series (24mm mounting hole), or blank for other punching by the user. Plate fixing screws plus appropriate connector mounting hardware is included. Connectors should be ordered separately as required. Note that due to the size of the mating connector, Neutrik NL4MP connectors should not be used in adjacent holes in F2 and F4 size plates).

For blank plates, users should take great care when punching mounting holes with Q-max type two-part punches, as the lacquered finish on the front face will be damaged unless only the male part of the punch set is used on the front face. Similarly, care should be taken to ensure that the punches to be used are suitable to punch 1.5mm sheet steel.

Type F - Metal, flat

Flat 1.5mm thick steel or brass plates, with rounded corners. Plates are available with both plated and painted finishes. Plated finishes are satin nickel (SN suffix) and polished brass (PB suffix). Painted types have an eggshell semi-gloss finish, and are available in white (W suffix) and black (B suffix). Colour references are RAL9010 Pure White and BS4800-00E53 (approx. RAL9005 Jet Black).

Type P - Plastic

Off white hard plastic, with contours and rounded-corner style to match MK ‘Logic Plus’ and many other electrical fittings. Designed for connectors to be fitted on the front surface (mounting holes are not countersunk). Suitable rounded corner surface boxes are 49-4402 and 49-4404.

Type PN – Plastic, convex

Off white plastic, with gently convex front face and rounded corners. Designed for connectors to be fitted on the front surface (mounting holes are not countersunk). Suitable rounded corner surface boxes are 49-4402 and 49-4404. Type PN1 and PN2 are 1-gang, PN3 is 2-gang.

Mounting boxes

It is recommended that boxes with a minimum depth of 31mm are used. (If the flush boxes are being installed in the building by a different contractor, remember to specify deep boxes are required.) Canford stocks suitable flush mount steel boxes with knockouts, which are suitable for all plates. Type F metal plates can be surface mounted using cast alloy boxes, finished black. Type P and PN plastic plates can be surface mounted with matching white plastic boxes.

Type1 No. of Size3 Suitable Suitable
connectors2 flush box4 surface box4
F0 0 1-gang 49-578 49-549
F00 0 2-gang 49-579 49-551
F1 1 1-gang 49-578 49-549
F2 2 1-gang 49-578 49-549
F3 3 2-gang 49-579 49-551
F41 4 1-gang 49-578 49-549
F4 4 2-gang 49-579 49-551
F6 6 2-gang 49-579 49-551
F8 8 2-gang 49-579 49-551
P1 1 1-gang 49-578 49-4402
P3 3 2-gang 49-579 49-4404
PN1 1 1-gang 49-578 49-4402
PN2 2 1-gang 49-578 49-4402
PN3 3 2-gang 49-579 49-4404
Notes:

1 The plate finish is denoted by suffix letters.
2 Connectors are NOT supplied, order separately as required.
3 ‘1-gang’ is the electrical industry term for ‘normal-width’ size plate, ‘2 gang’ for ‘double-width’.
4 47mm deep flush boxes are available for when more depth is required.

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD F0SN CONNECTOR PLATE 1-gang, blank, satin nickel Nickel Stock code: 49-595
44 in stock Need more?
£11.54
CANFORD F0PB CONNECTOR PLATE 1-gang, blank, polished brass Polished Brass Stock code: 49-596
Discontinued. Please contact Technical Support for alternatives.
CANFORD F00SN CONNECTOR PLATE 2-gang, blank, satin nickel Nickel Stock code: 49-585
28 in stock Need more?
£16.10
CANFORD F00PB CONNECTOR PLATE 2-gang, blank, polished brass Polished Brass Stock code: 49-586
Discontinued. Please contact Technical Support for alternatives.
CANFORD F1B CONNECTOR PLATE 1-gang, 1 mounting hole, black Black Stock code: 49-611
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£7.40
CANFORD F1W CONNECTOR PLATE 1-gang, 1 mounting hole, white White Stock code: 49-612
3 in stock Need more?
£7.40
CANFORD F1SN CONNECTOR PLATE 1-gang, 1 mounting hole, satin nickel Nickel Stock code: 49-591
47 in stock Need more?
£10.28
CANFORD F1PB CONNECTOR PLATE 1-gang, 1 mounting hole, polished brass Polished Brass Stock code: 49-594
3 in stock Need more?
£15.50
CANFORD F2B CONNECTOR PLATE 1-gang, 2 mounting holes, black Black Stock code: 49-613
82 in stock Need more?
£7.44
CANFORD F2W CONNECTOR PLATE 1-gang, 2 mounting holes, white White Stock code: 49-614
86 in stock Need more?
£7.44
CANFORD F2SN CONNECTOR PLATE 1-gang, 2 mounting holes, satin nickel Nickel Stock code: 49-589
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£11.20
CANFORD F2PB CONNECTOR PLATE 1-gang, 2 mounting holes, polished brass Polished Brass Stock code: 49-590
8 in stock Need more?
£15.58
CANFORD F41B CONNECTOR PLATE 1-gang, 4 mounting hole, black Black Stock code: 49-607
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£7.54
CANFORD F41W CONNECTOR PLATE 1-gang, 4 mounting hole, white White Stock code: 49-608
25 in stock Need more?
£7.54
CANFORD F41SN CONNECTOR PLATE 1-gang, 4 mounting hole, satin nickel Nickel Stock code: 49-609
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
£11.40
CANFORD F3B CONNECTOR PLATE 2-gang, 3 mounting holes, black Black Stock code: 49-615
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£8.14
CANFORD F3W CONNECTOR PLATE 2-gang, 3 mounting holes, white White Stock code: 49-616
41 in stock Need more?
£8.14
CANFORD F3SN CONNECTOR PLATE 2-gang, 3 mounting holes, satin nickel Nickel Stock code: 49-592
23 in stock Need more?
£14.92
CANFORD F4B CONNECTOR PLATE 2-gang, 4 mounting holes, black Black Stock code: 49-617
6 in stock Need more?
£8.26
CANFORD F4W CONNECTOR PLATE 2-gang, 4 mounting holes, white White Stock code: 49-618
22 in stock Need more?
£8.26
CANFORD F4SN CONNECTOR PLATE 2-gang, 4 mounting holes, satin nickel Nickel Stock code: 49-598
32 in stock Need more?
£15.00
CANFORD F4PB CONNECTOR PLATE 2-gang, 4 mounting holes, polished brass Polished Brass Stock code: 49-588
No longer manufactured. Please contact Technical Support for alternatives.
CANFORD F6B CONNECTOR PLATE 2-gang, 6 mounting holes, black Black Stock code: 49-619
4 in stock Need more?
£8.42
CANFORD F6W CONNECTOR PLATE 2-gang, 6 mounting holes, white White Stock code: 49-620
10 in stock Need more?
£8.42
CANFORD F8B CONNECTOR PLATE 2-gang, 8 mounting holes, black Black Stock code: 49-621
7 in stock Need more?
£8.62
CANFORD F8W CONNECTOR PLATE 2-gang, 8 mounting holes, white White Stock code: 49-622
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£8.62
CANFORD P1 CONNECTOR PLATE 1-gang, 1 mounting hole, plastic Stock code: 49-581
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£6.16
CANFORD P3 CONNECTOR PLATE 2-gang, 3 mounting holes, plastic Stock code: 49-582
9 in stock Need more?
£11.88
CANFORD PN1 CONNECTOR PLATE 1-gang, 1 mounting hole, plastic, convex Stock code: 49-574
No longer manufactured. See the product page for suggested alternatives.
CANFORD PN2 CONNECTOR PLATE 1-gang, 2 mounting holes, plastic, convex Stock code: 49-575
No longer manufactured. Please contact Technical Support for alternatives.
CANFORD PN3 CONNECTOR PLATE 2-gang, 3 mounting holes, plastic, convex Stock code: 49-576
No longer manufactured. See the product page for suggested alternatives.
STEEL FLUSH BOX 1 gang Stock code: 49-578
3 in stock Need more?
£1.48
STEEL FLUSH BOX 2 gang Stock code: 49-579
23 in stock Need more?
£1.93
STEEL FLUSH BOX 1 gang, 47mm deep Stock code: 49-601
9 in stock Need more?
£1.80
STEEL FLUSH BOX 2 gang, 47mm deep Stock code: 49-602
Out of stock but available to backorder, expected in 3‑5 working days. Need it sooner? Call us
£3.02
CAST STEEL SURFACE BOX 1 gang Stock code: 49-549
15 in stock Need more?
£38.45
CAST ALLOY SURFACE BOX 2 gang Stock code: 49-551
4 in stock Need more?
£62.14
PLASTIC SURFACE BOX 1 gang Stock code: 49-519
Discontinued. See the product page for suggested alternatives.
PLASTIC SURFACE BOX 2 gang Stock code: 49-520
Discontinued. See the product page for suggested alternatives.
