BELDEN 7804EPU SMPTE311 FIBRE HDTV CAMERA CABLE, PUR

Stock code
60-7804EPU
Brand
Belden
Model number
  • 7804EPU
BELDEN 7804EPU SMPTE311 FIBRE HDTV CAMERA CABLE, PUR
BELDEN 7804EPU SMPTE311 FIBRE HDTV CAMERA CABLE, PURBELDEN 7804EPU SMPTE311 FIBRE HDTV CAMERA CABLE, PUR

Order

VAT / Delivery
$10.56
per metre (ex. VAT)
100+ $8.44
500+ $8.24
1,000+ $7.92
88236 in stock Need more?

BELDEN SMPTE311 FIBRE HDTV CAMERA CABLES

A hybrid cable containing single-mode fibre optic and copper cores, meeting the SMPTE311M standard for HDTV camera connections. It handles video, audio and control signals plus powering between camera and base units. It is suitable for use with the special hybrid connectors produced by manufacturers such as Canare and Lemo. Available in three jacket versions. The robust but flexible polyurethane (PU) outer sheath version is suitable for OB and studio floor use, the PVC sheathed version is flexible and suitable for studio applications, and the low-smoke, halogen-free (FRNC), low fire hazard (LFH) version meets or exceeds IEC 60332-1, IEC 60754-2. for building installation. Low-smoke, halogen-free (FRNC), low fire hazard (LFH) versions are also comply to the CPR Euroclass requirements up to Cca.

Technical Specification:

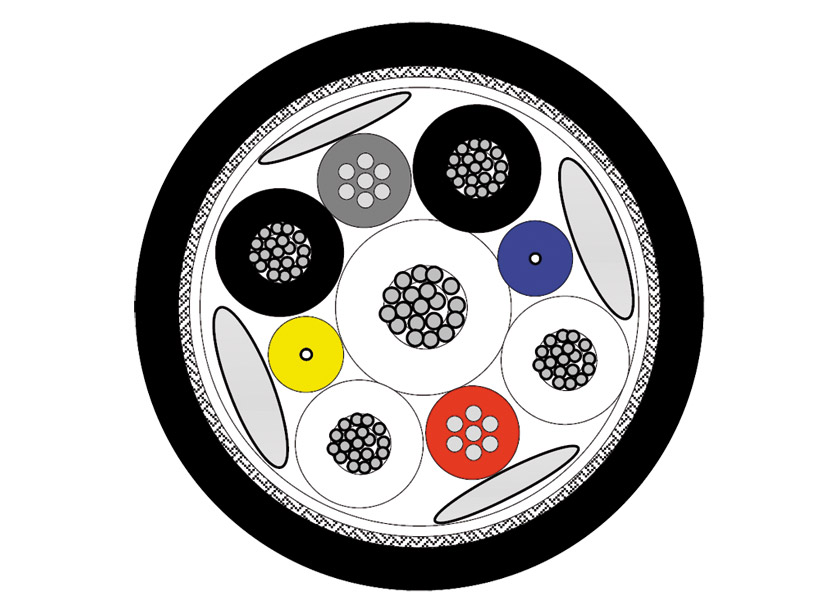

Auxiliary conductors: Four cores 19/0.2mm (0.6mm sq.) tinned copper wire, insulated with HDPE, black, white, black/white and white/black.
Signal conductors: Two cores 7/0.2mm (0.22mm sq.) tinned copper wire, insulated with HDPE, red, grey.
Fibre optic cores: Two bend-insensitive cores (to ITU G.657A) single-mode fibre 9 micron diameter, cladding 125 micron diameter, with UV-cross-linked acrylate coating and 0.9mm diameter thermoplastic outer; blue, yellow.
Strength member: One stranded stainless steel wire reinforcement (1.6mm diameter), insulated with HDPE (2.1mm diameter), laid centrally.

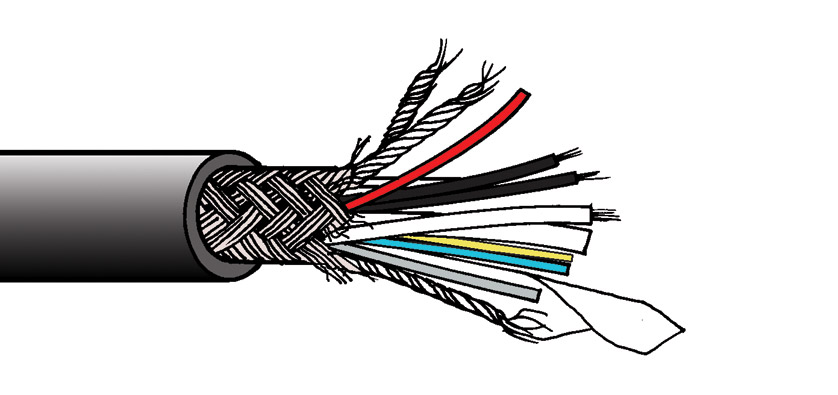

Lay-up: Conductors and fibre laid up around steel wire, packed with fibrilated polypropylene, wound overall with paper tape. Tinned copper wire braid screen, 80% optical coverage.
Outer Jacket: Polyurethane (PU), PVC or FRNC Low Fire Hazard (LFH); 9.2mm OD, black.
CPR Euroclass: 60-7804ELY (Dca-s1,d1,a1), 60-7804ELW (Cca-s1,d1,a1)
Weight: 13.5kg/100m
Reel length: 1000m
Cut Lengths: Available in any multiple of 1 metre, Except 7804ELW, only available on full drums of 1000m.
Ordering note:

Canford offers an in-house, fibre termination service. See SMPTE 311M cable assemblies.
