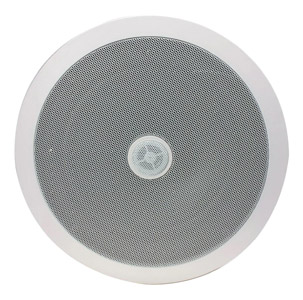

ADS OMEGA MAX LOUDSPEAKER Ceiling, circular, 100V, 40W, white

Stock code
76-1645
Brand
ADS (Audio Design Services)
Model number
  • OMEGA MAX
Colour
  • WhiteWhite
ADS OMEGA MAX LOUDSPEAKER Ceiling, circular, 100V, 40W, white
ADS OMEGA MAX LOUDSPEAKER Ceiling, circular, 100V, 40W, whiteADS OMEGA MAX LOUDSPEAKER Ceiling, circular, 100V, 40W, whiteADS OMEGA MAX LOUDSPEAKER Ceiling, circular, 100V, 40W, white

Order

VAT / Delivery
$91.83
each (ex. VAT)
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us

ADS LOUDSPEAKERS - Ceiling

Designed to be fitted into suspended ceilings, this economic range of loudspeakers have an attractive low profile when fitted.

Transformers are fitted to match the loudspeakers to 100V line systems.


Omega Spot - 6W, 100V/8ohm

A 2.5-inch driver housed in a compact casing designed to fit into 95mm diameter cut out as normally used for halogen spotlights. An adaptable spring with hook allows for fastfit installation.

Power Taps: 6.3/1.5W, at 100V; 8ohms, on low impedance systems. Response: 120Hz-20kHz. Sensitivity: 87dB, +/-3dB. Output: 6W RMS. Cut-out: 95mm diameter. Dimensions (Diam x H): 103 x 80mm. Weight: 500g.


Omega 6 - 6W, 100V

A 165mmm driver, with a smooth response, is concealed behind an attractive steel grille finished in matt white. Connection is by terminal block.

Power Taps: 6/4/2/1/0.5W, at 100V. Response: 90Hz-20kHz. Output: 92dB SPL, 1W/1m. Cut-out: 195mm diameter. Dimensions (Diam x H): 230 x 128mm. Weight: 1.1kg.

Included accessories: Support bridge.
Optional accessories: The SD6 steel dome may be used to protect the rear of the unit from falling debris. It is supplied complete with three fixing slides.


Omega 6 Plus - 6W, 100V/8ohm

With dual-coned 165mm driver, Omega 6 Plus is a 6watt flush-mounted ceiling loudspeaker supplied with Fast-Fit Support Bridge for 'really easy installation'. It has 'excellent frequency response' between 90Hz and 20KHz, as well as in and out terminals for easy connectivity. The transformer is secondary tapped for extra safety on installation.

Power Taps: 6/3/1/0.5W, at 100V. Response: 90Hz-20kHz. Output: 91dB SPL, 1W/1m. Cut-out: 200mm diameter. Dimensions (Diam x H): 230 x 127mm. Weight: 1.2kg.


Omega 6 Plus WD - 6W, 100V, with dome

Omega 6 Plus WD is a 6watt flush-mounted ceiling loudspeaker supplied with steel dome for mechanical protection and featuring a dual cone driver for 'excellent frequency response' between 90Hz and 20KHz, as well as in and out terminals for easy connectivity. The transformer is secondary tapped for extra safety on installation.

Power Taps: 6/3/1/0.5W, at 100V. Response: 90Hz-20kHz. Output: 91dB SPL, 1W/1m. Cut-out: 200mm diameter. Dimensions (Diam x H): 230 x 127mm. Weight: 1.4kg.


Omega 10 Trade - 10W, 100V

Discontinued

A 'value for money', 10watt ceiling loudspeaker designed for general purpose speech and music use in department stores, schools, offices, hotels, and restaurants.

Power Taps: 10/5W, at 100V. Response: 130Hz-18kHz. Sensitivity: 93dB, +/-3dB. Cut-out: 165-170mm diameter. Dimensions (Diam x H): 186 x 70mm.


Omega Max - 40W, 100V/8ohm

Designed for applications where 'high quality music is essential', Omega Max is a 40watt flushmount ceiling speaker with 203mm low frequency driver and 25mm high frequency tweeter. Omega Max has a power output of 40watts RMS and is able to operate on 100V line or low impedance 8ohm system.

Power Taps: 40/20/10/5/2.5W, at 100V; 8ohms, on low impedance systems. Response: 50Hz-20kHz. Sensitivity: 87dB, +/-3dB, 1w/1m. Output: 6W RMS. Cut-out: 240mm diameter. Dimensions (Diam x H): 270 x 95mm. Weight: 1.8kg.
