TOA INSTALLATION SPEAKERS

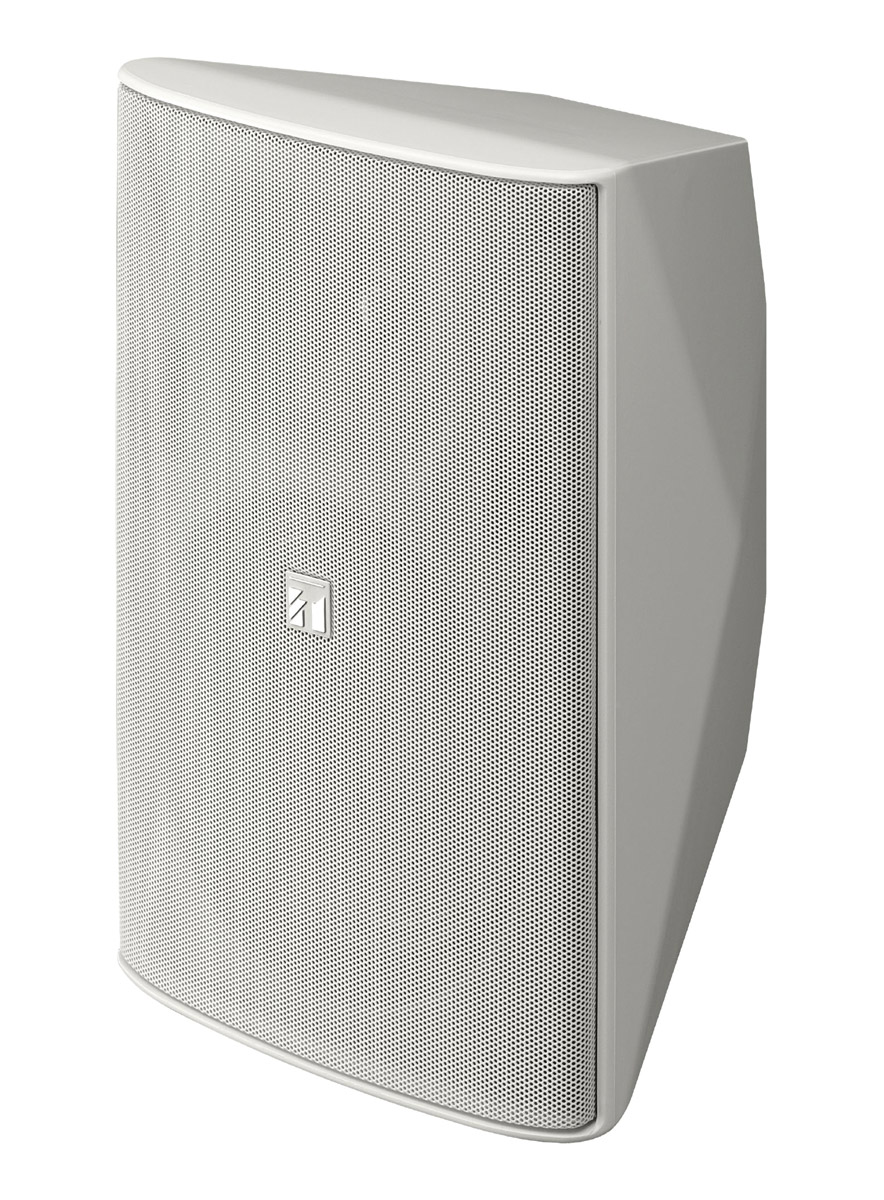

Intended for general purpose applications, these ‘universal’ speakers have a compact two-way bass-reflex design in a moulded ABS trapezoid enclosure. The IP-X3 ‘splash-proof’ design and curved steel-plate grille makes them suitable for outdoor use in sheltered positions. They can be connected as low impedance, 70V or 100V line.
Supplied with a yoke bracket which offers a number of mounting angles, and ‘keyhole’ slots to facilitate direct fixing to a wall, they are fitted with line transformers, and may be switched to off, low impedance, 70V or 100V line, and a variety of power ratings at 100V or 70V line. Connection is a captive lead, 600mm. The IP-X3 ‘splash-proof’ construction permits them to be installed outdoors under eaves and in other locations where the speaker is not directly exposed to the elements, provided that the speaker grill is vertical, or pointing downwards. Drivers are 120mm cone and 25mm dome.
||8ohms: 30W. 70V/100V line: 30, 20, 15, 10, 5W.
||90dB SPL, 1W, 1 metre
||-10 to +50°C
||IP-X3 (when the angle of the installed speaker is vertical or horizontal)
|Dimensions (w x h x d):
||196 x 290 x 150 mm
Included accessories: Yoke mounting bracket.
