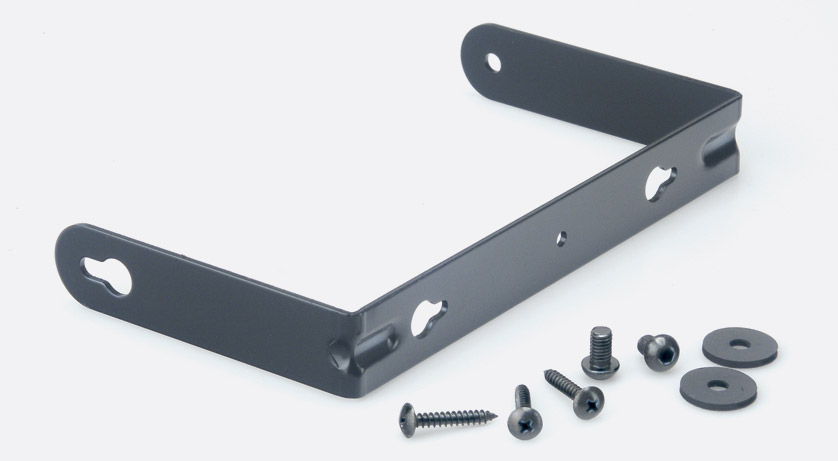

CANFORD BRACKET U shaped for Canford Diecast loudspeaker, allows flush wall mounting

Stock code
76-428
Brand
Canford
CANFORD BRACKET U shaped for Canford Diecast loudspeaker, allows flush wall mounting

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD POWERED DIECAST LOUDSPEAKER

This is a development of the standard diecast loudspeakers, and is designed to fill the need for an economical, robust, powered loudspeaker. Uses include talkback, line listening, cue programme, office monitoring and even small PA applications. Mains connection is IEC 60320 C14 type (cable not supplied), audio input is transformer balanced on XLR 3 pin female, mating connectors not supplied. Units are constructed in a virtually airtight diecast aluminium housing, to give enhanced LF performance. Front panel mains on/off and volume controls.

Two simple wall fixings are available: a 'U' bracket 76-428 permits flush wall fixing with restricted horizontal or vertical tilt adjustment, and a universal angle bracket 18-092 with horizontal adjustment also available (speaker can be mounted horizontally or vertically). Mic stand adapter enables units to mount on 3/8 inch or 5/8 inch thread microphone stands. Loudspeaker has M6 tapped insert in the top and base.

Units are also available in single or dual 19 inch rackmount versions (3U), to provide convenient rackmount ‘check-listen’ facilities.

Technical Specification:
Enclosure: Aluminium diecast
Drive unit: 10cm, full range single cone
Frequency range: 90Hz–13kHz (amplifier section 40Hz–20kHz)
Max. output power
(amplifier section): 10 watts at 0.2% THD, 13 watts at 3% THD
Input impedance: >20k ohms
Input sensitivity: 0dBu @ 10W output
Power: 220–240V AC
Dimensions: 181(h) x 114(w) x 105(d) mm (free standing unit)
3U(h) x 105(d) mm (19 inch rackmounting)
Weight: 2.5kg

Priced and sold singly.

  Description Price (£) Add to basket
Show carriage
CANFORD POWERED DIECAST LOUDSPEAKER Freestanding IEC   Stock code: 76-361
Please login for stock availability and lead times.
£213.30
CANFORD POWERED DIECAST LOUDSPEAKER Rackmount, IEC   Stock code: 76-362
Please login for stock availability and lead times.
£238.60
CANFORD POWERED DIECAST LOUDSPEAKER Dual, rackmount, IEC   Stock code: 76-363
Please login for stock availability and lead times.
£449.70
CANFORD POWERED DIECAST LOUDSPEAKER Spare loudspeaker   Stock code: 76-399
Please login for stock availability and lead times.
£17.43
CANFORD POWERED DIECAST LOUDSPEAKER Spare grille   Stock code: 76-398
Please login for stock availability and lead times.
£5.11
CANFORD BRACKET For Canford Diecast loudspeaker, allows tilt-angle adjustment   Stock code: 18-092
Please login for stock availability and lead times.
£13.62
MICROPHONE STAND ADAPTER For Fostex 6301, Canford Diecast speakers, items with M5 female thread   Stock code: 76-309
Please login for stock availability and lead times.
£12.63
CANFORD BRACKET U shaped for Canford Diecast loudspeaker, allows flush wall mounting   Stock code: 76-428
Please login for stock availability and lead times.
£12.89
