RADIAL MIXERS

2 items

A series of products by Radial Engineering that have been designed to combine and mix audio input signals for presentations, stage, and studio environments.


MIX 2:1

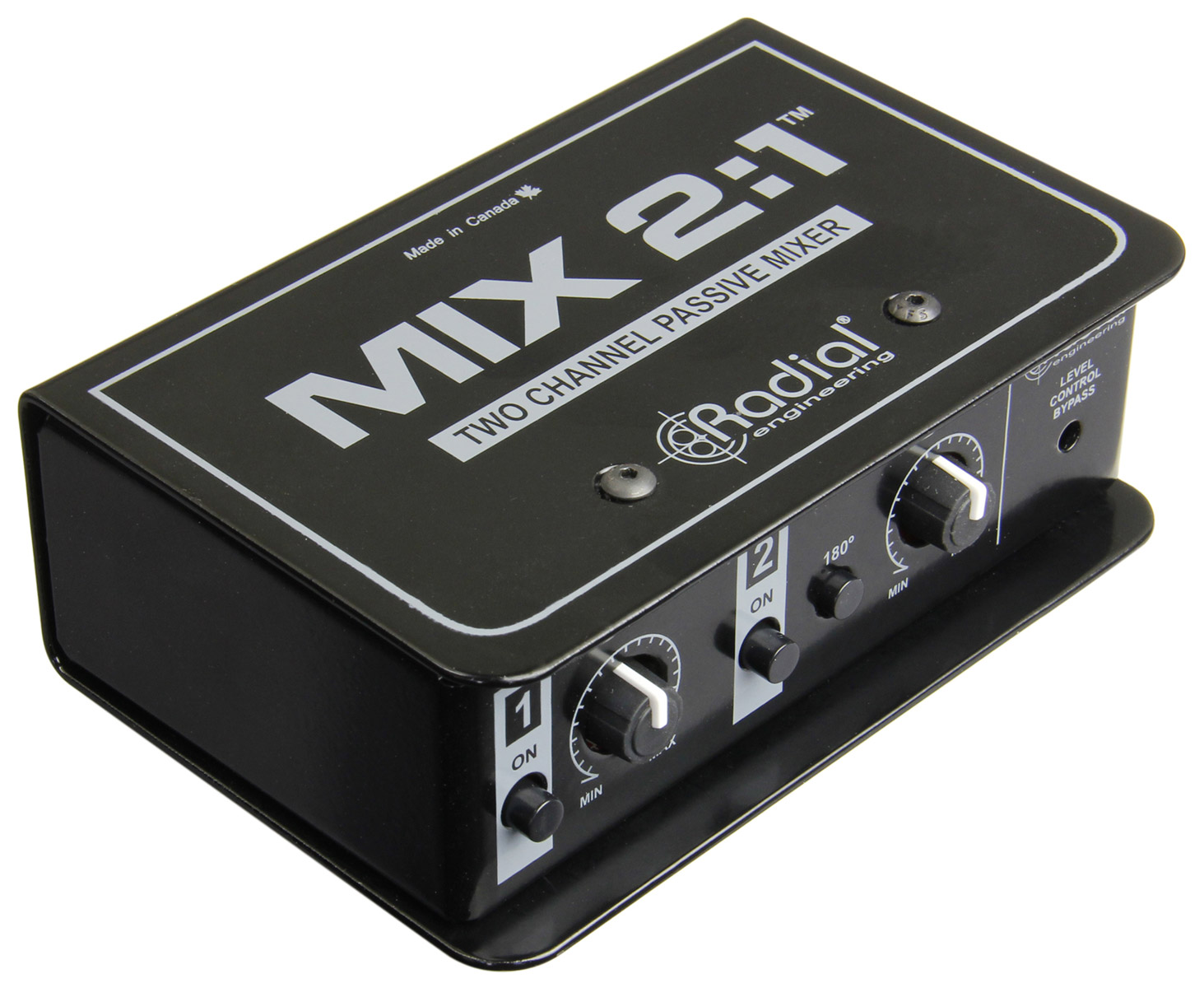

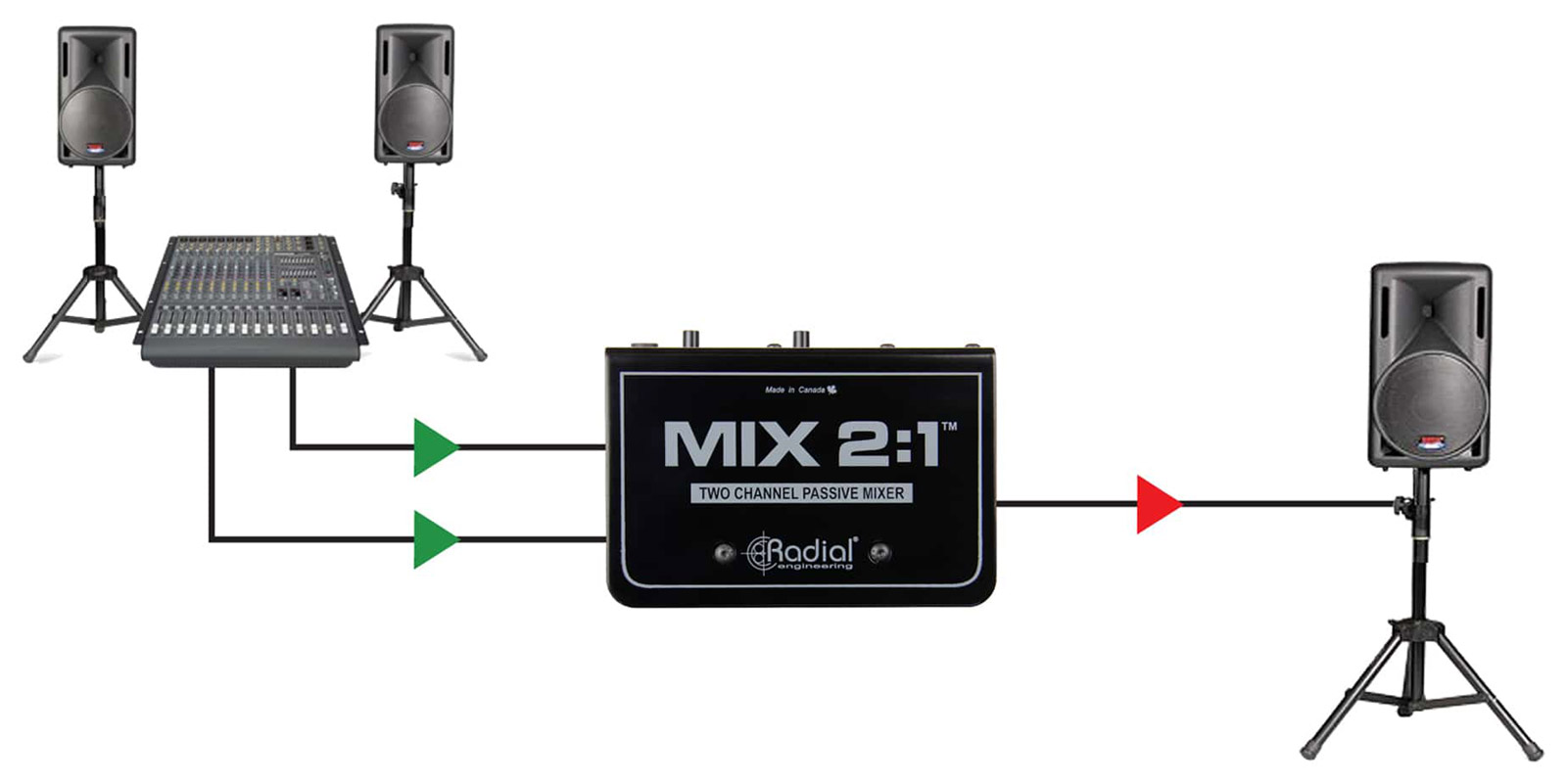

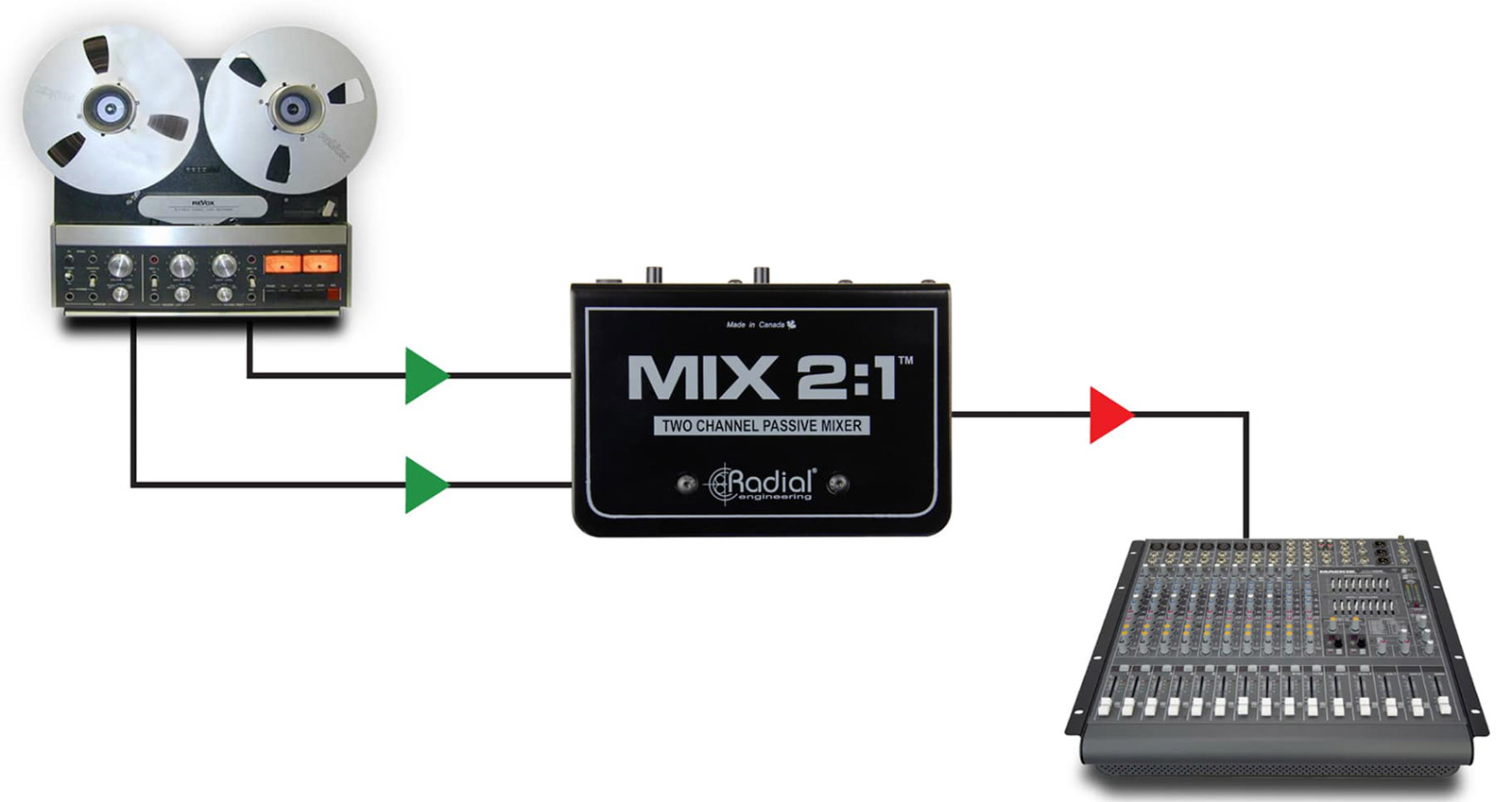

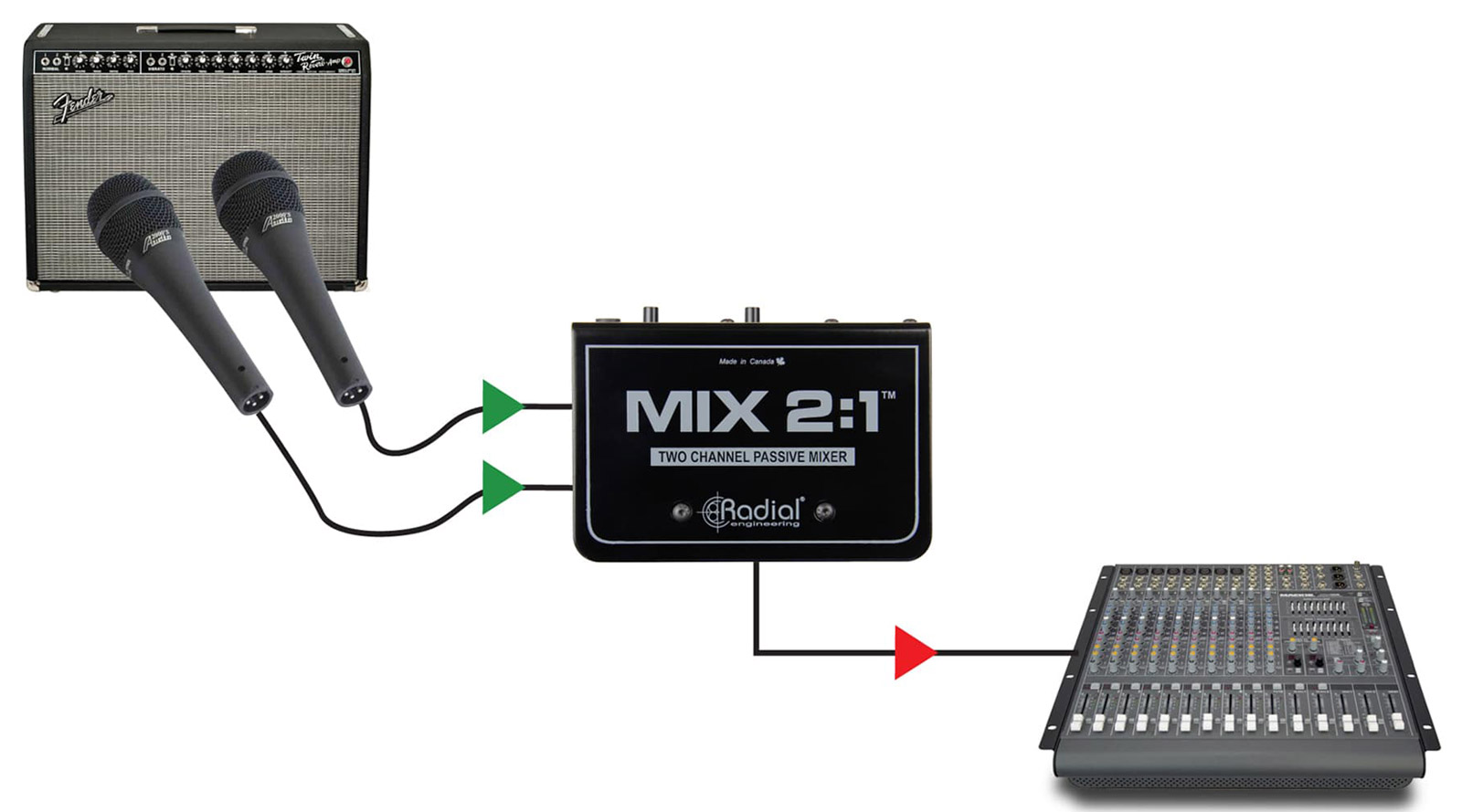

MIX 2:1 has been developed to simplify the summing of any two signals, whether it's two microphones or the stereo line outputs of a mixing console.

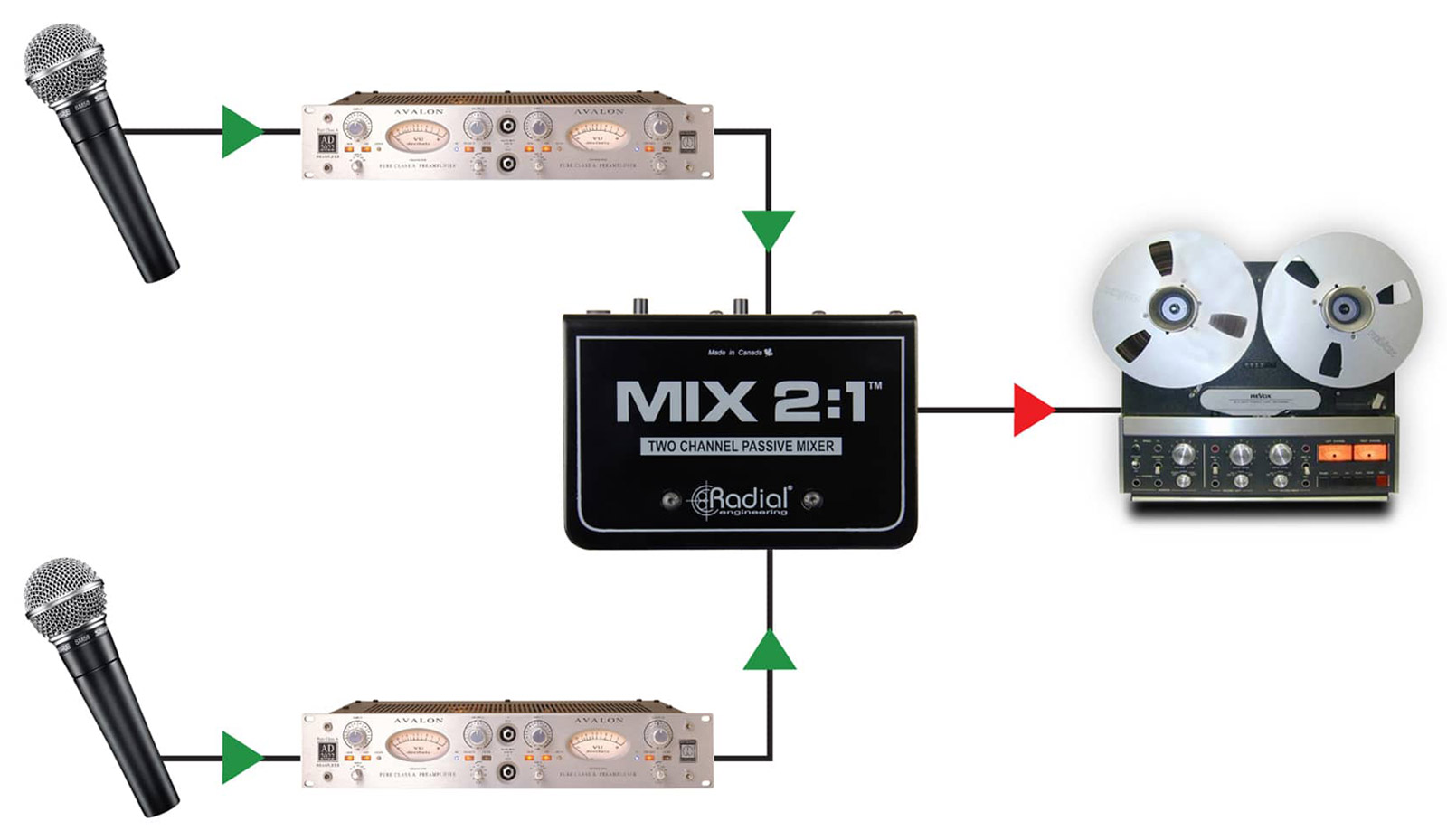

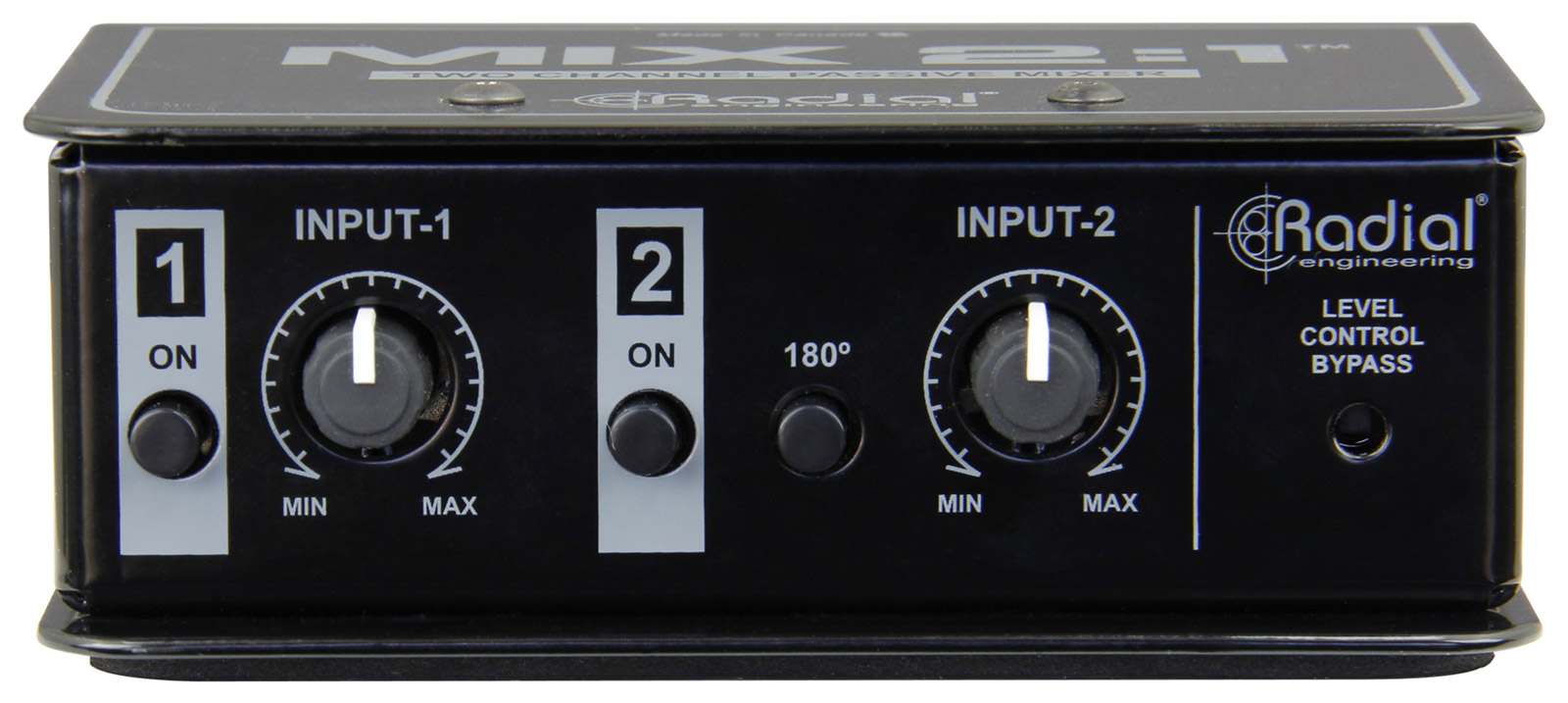

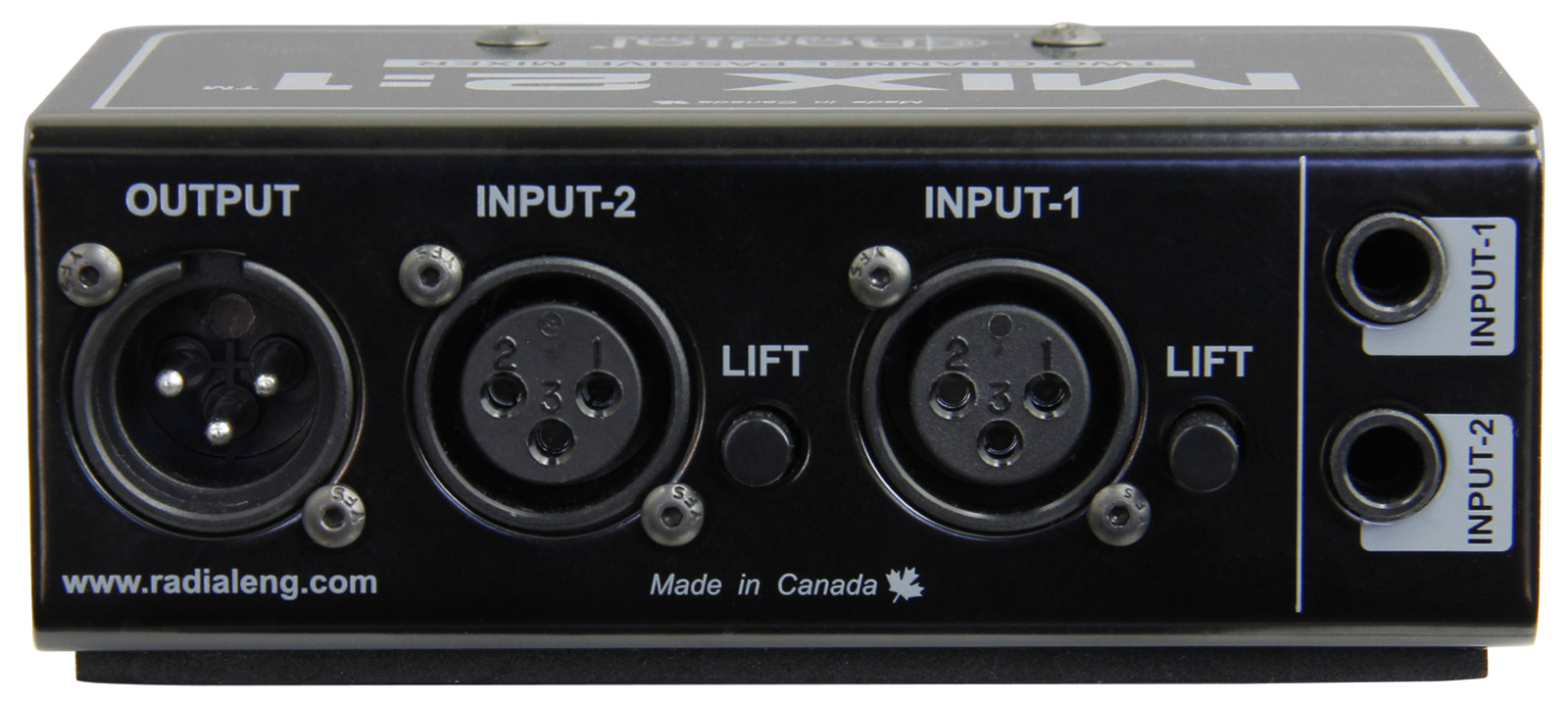

The input stage of the passive device has both 6.35mm TRS jack and 3-pin XLR connections, with ground lift switches to eliminate buzz and hum from ground loops and ensure noise-free operation. A trim control for each input allows the user to adjust levels when using two separate mono sources - such as the outputs of two mic preamps. After both signals are passively summed together, they feed a single 3-pin XLR output that can be connected to a powered speaker, or the input of a console or recording interface.

Frequency response: 20Hz to 20kHz. Dynamic range: Greater than 133dB. Total harmonic distortion: Greater than 0.005%. Input impedance: 8kOhms. Output impedance: 1kOhm. Maximum input: Greater than +20dBu. Dimensions (LxWxD): 127 x 83 x 47mm. Weight: 0.67kg.


PRESENTER

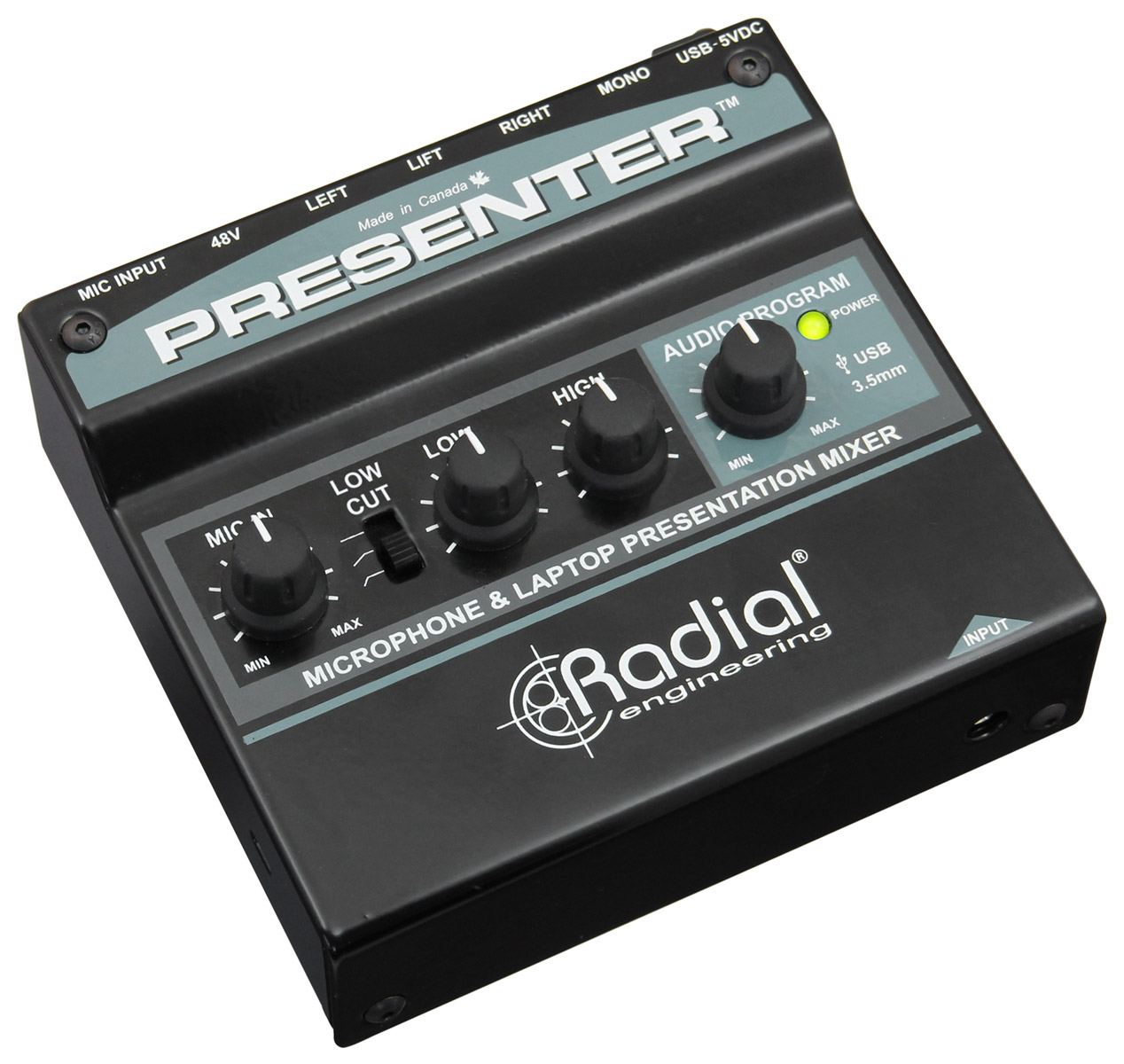

Radial Engineering Presenter replaces typical audio mixers that maybe overcomplicate a basic mixing process. The mixer instead has an intuitive layout that allows virtually anyone to operate it and achieve high quality sound.

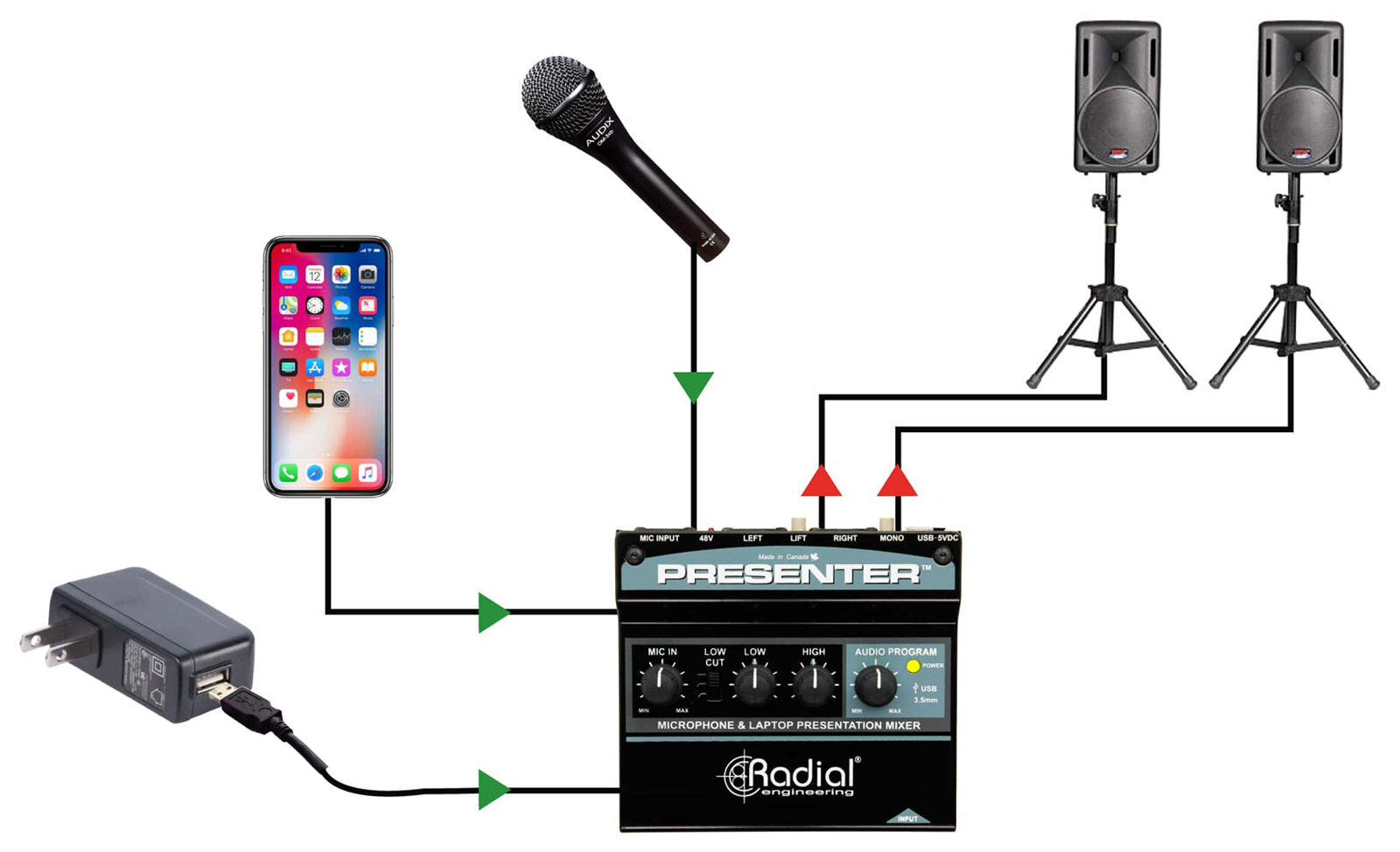

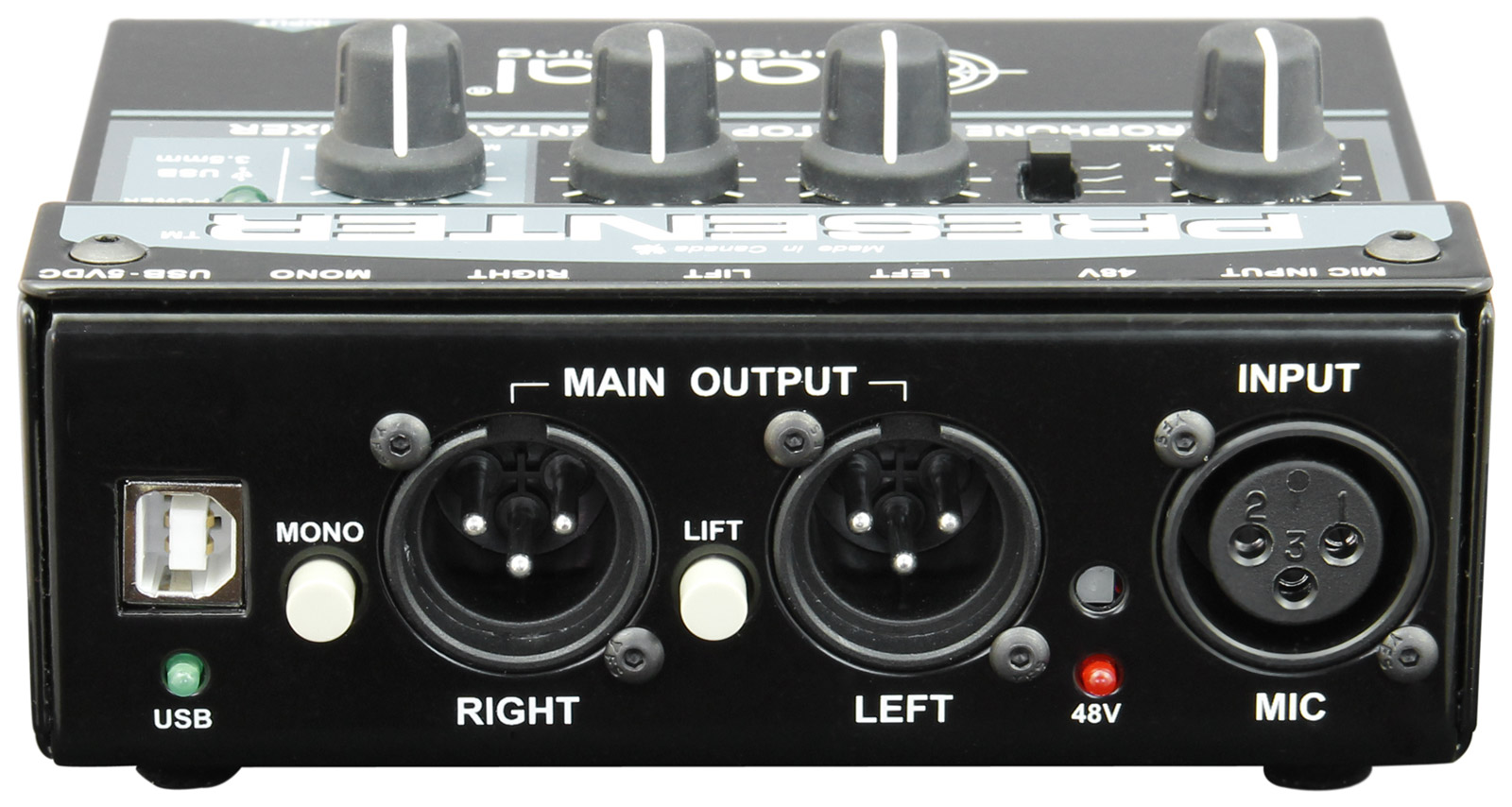

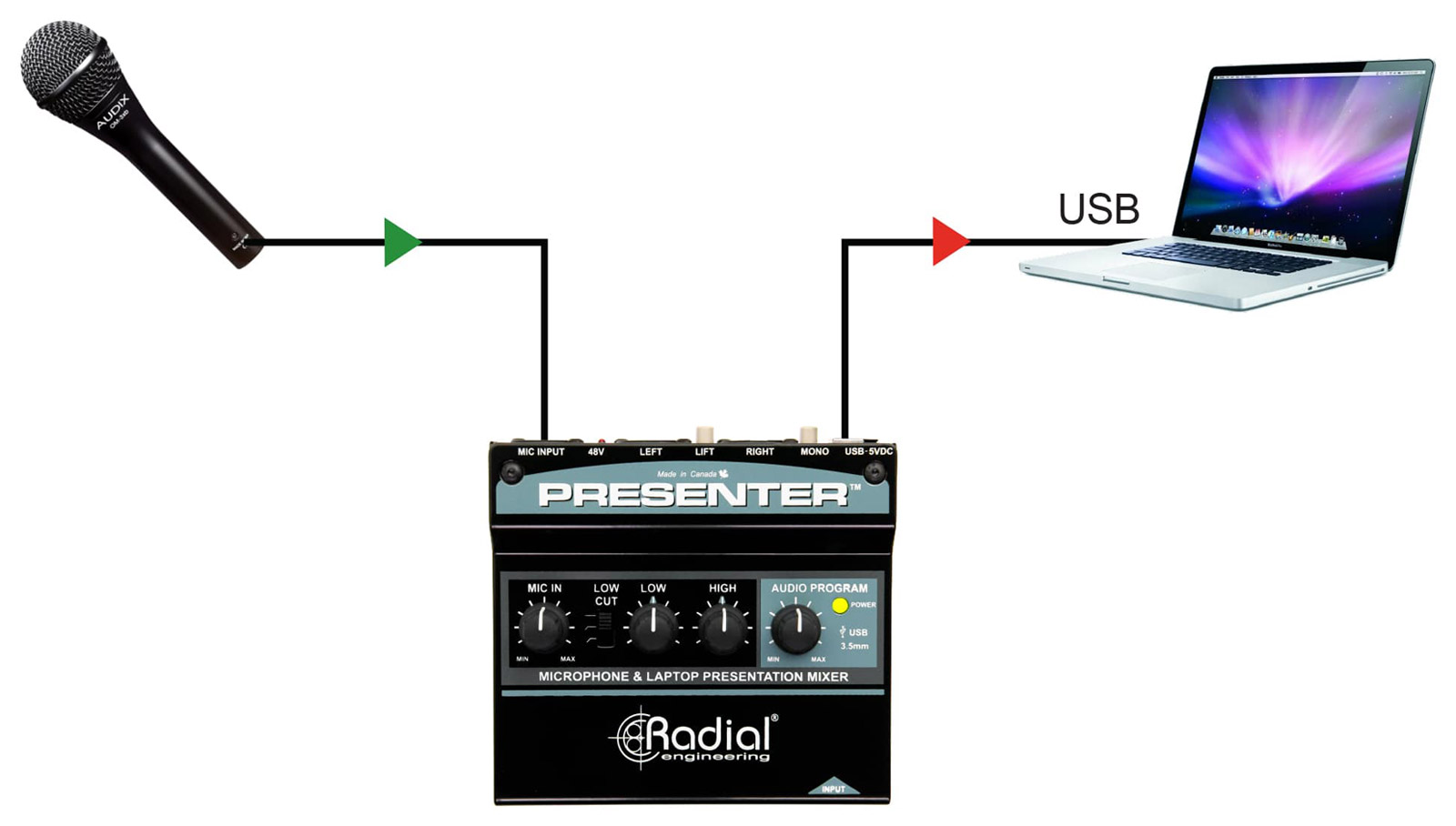

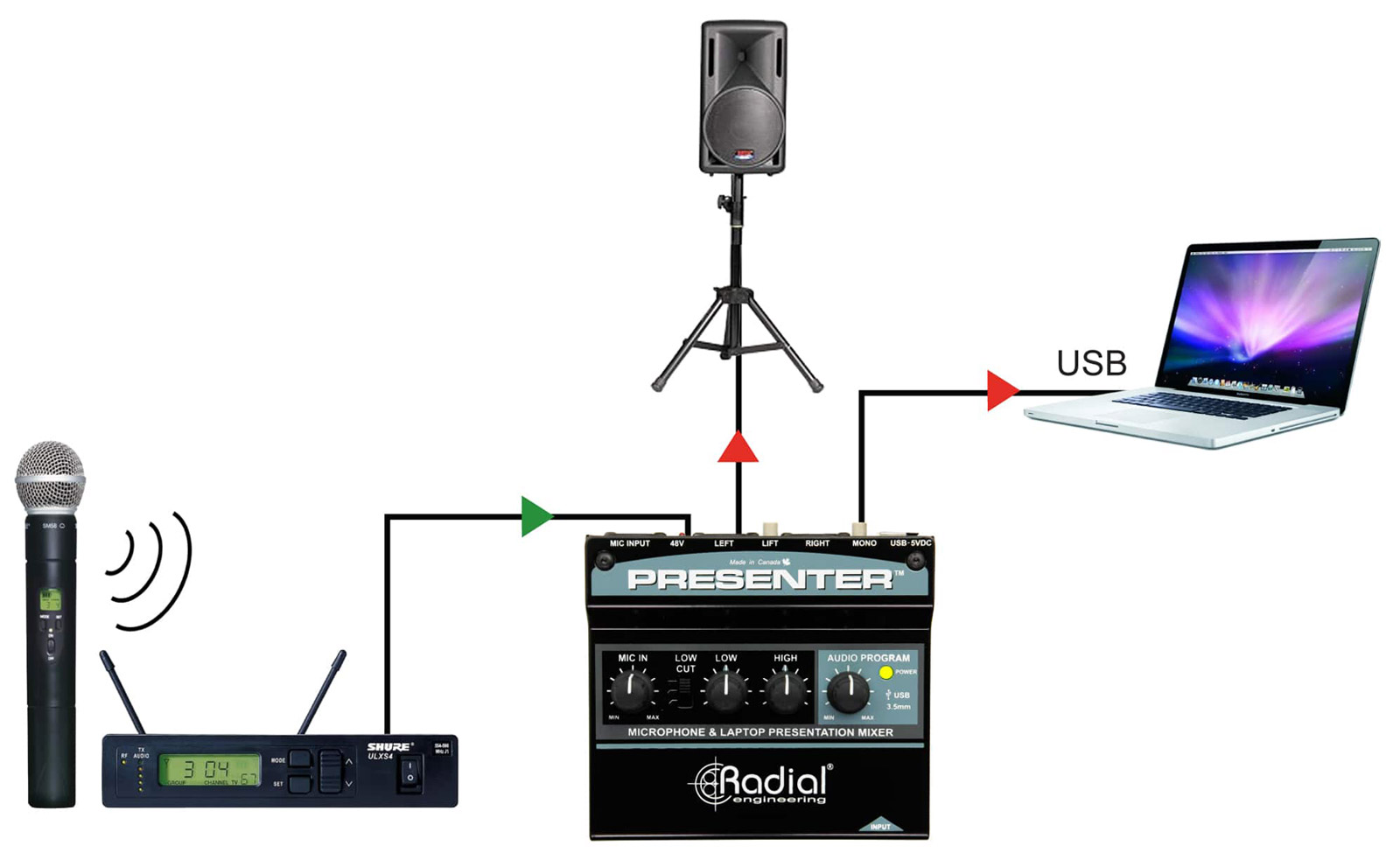

An 3-pin XLR microphone input allows the user to connect a podium microphone and provide it with phantom power if required. The microphone signal can then be adjusted using three EQ controls to tailor the frequency response. A Program input level controls the volume of the USB input or the 3.5mm jack on the front of the unit, which allows the to connect the outputs of a laptop, smartphone, or MP3 player and blend it with the signal from the microphone. 3-pin XLR outputs provide balanced feeds for a set of powered speakers, making it a versatile mixer and portable solution for any speaking engagement.

Frequency response: 20Hz to 20kHz. Dynamic range: Greater than 91dB. Total harmonic distortion: Greater than 0.004%. Input impedance: 10kOhms. Output impedance: 2.74kOhm. Maximum input: Greater than +7dBu. Dimensions (HxWxD): 50.8 x 127 x 120.65 x mm. Weight: 0.68kg.

Description Price £
Add to basket
RADIAL MIX 2:1 MIXER 2-channel, passive, mono output, balanced 3-pin XLR/TRS jack input Stock code: 20-0025
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£179.30
RADIAL PRESENTER MIXER 2-channel, mic/USB/3.5mm jack input, balanced 3-pin XLR outputs Stock code: 20-0026
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
£179.30
