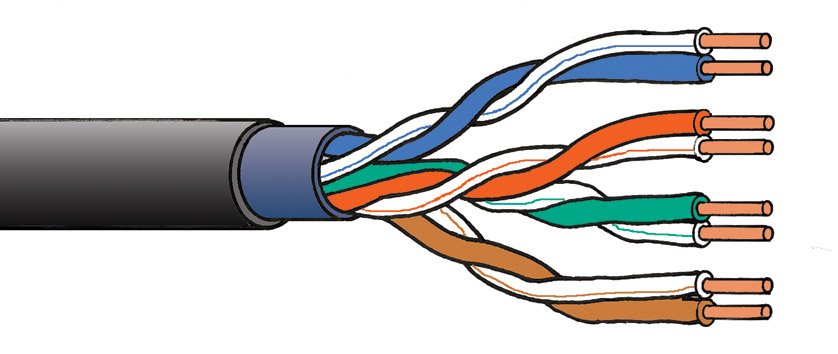

BELDEN 1304A/1305A CAT5E DATA CABLE Stranded conductor - Deployable

These Category 5E U/UTP (unscreened) cables, designed for deployable applications, have stranded conductors, bonded pairs, and overall soft PVC jackets. They difference between them is only the thickness of the outer jacket. Available cut to length in any multiple of 1 metre.

Technical Specifications:
Conductors: 7/0.203mm (7 x 32AWG) plain copper (24AWG)
Insulation: Polyolefin, according to CW1308 colour code
Lay-up: Two insulated conductors twisted and bonded together, pairs twisted together
Lay up: Four pairs twisted together
Overall jacket: Soft PVC, matt black, O.D. 6.22mm (1304A), 7.49mm (1305A)
Impedance: 100 ohms +/- 15 ohms
Weight: 4.13kg/100m (1304A), 5.93kg/100m (1305A)
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
  Description Price (£) Add to basket
Show carriage
BELDEN 1304A CABLE Black Black Stock code: 60-1304A
Please login for stock availability and lead times.
1+ £2.55
100+ £2.04
500+ £1.99
1,000+ £1.91
per metre
BELDEN 1305A CABLE Black Black Stock code: 60-1305A
Please login for stock availability and lead times.
1+ £3.02
100+ £2.42
500+ £2.36
1,000+ £2.27
per metre
