CANFORD ACTIVE OPTICAL CABLES - Premium high speed HDMI - Armoured - Deployable

17 items
CANFORD AO-HD-A10 Active optical HDMI cable, armoured, deployable, 10m
CANFORD AO-HD-A10 Active optical HDMI cable, armoured, deployable, 10mCANFORD AO-HD-A10 Active optical HDMI cable, armoured, deployable, 10mCANFORD AO-HD-A10 Active optical HDMI cable, armoured, deployable, 10mCANFORD AO-HD-A70D Active optical HDMI cable, armoured, deployable, 70m, on drumCANFORD AO-HD-A70D Active optical HDMI cable, armoured, deployable, 70m, on drumCANFORD AO-HD-A70D Active optical HDMI cable, armoured, deployable, 70m, on drumCANFORD AO-HD-A70D Active optical HDMI cable, armoured, deployable, 70m, on drum

These active, optical, HDMI cables are intended for applications where longer cable-run lengths than those obtainable with standard copper HDMI cables are required. They are also useful where the cable needs to pass through environments with high electrical interference. They offer a considerably more elegant and cost-effective solution for long cable runs than Cat5E cable with converter box systems.

Designed for rental and stage use, applications can include professional AV systems interconnection, indoor and outdoor kiosks as well as home theatre systems in larger houses.

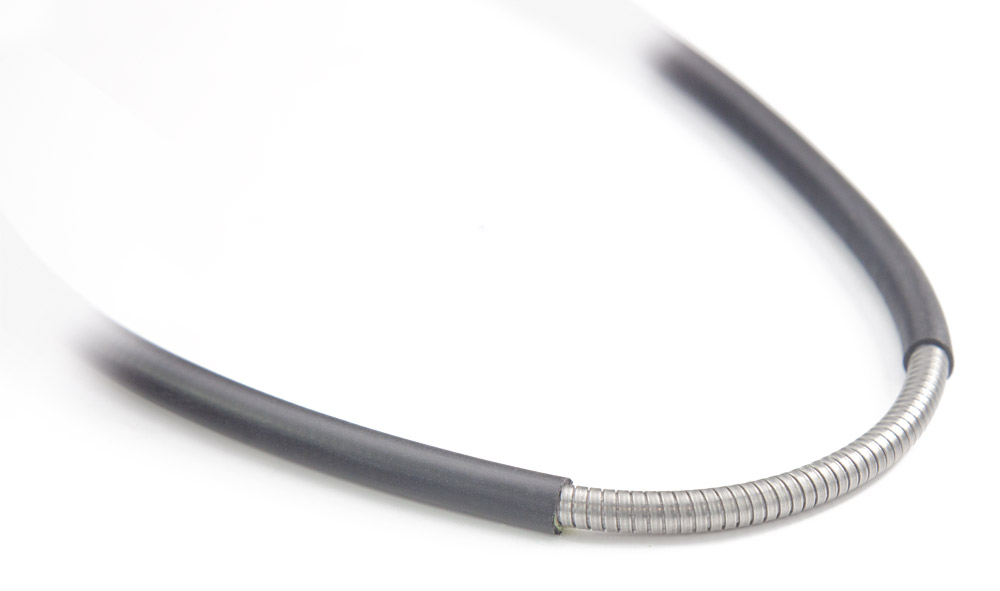

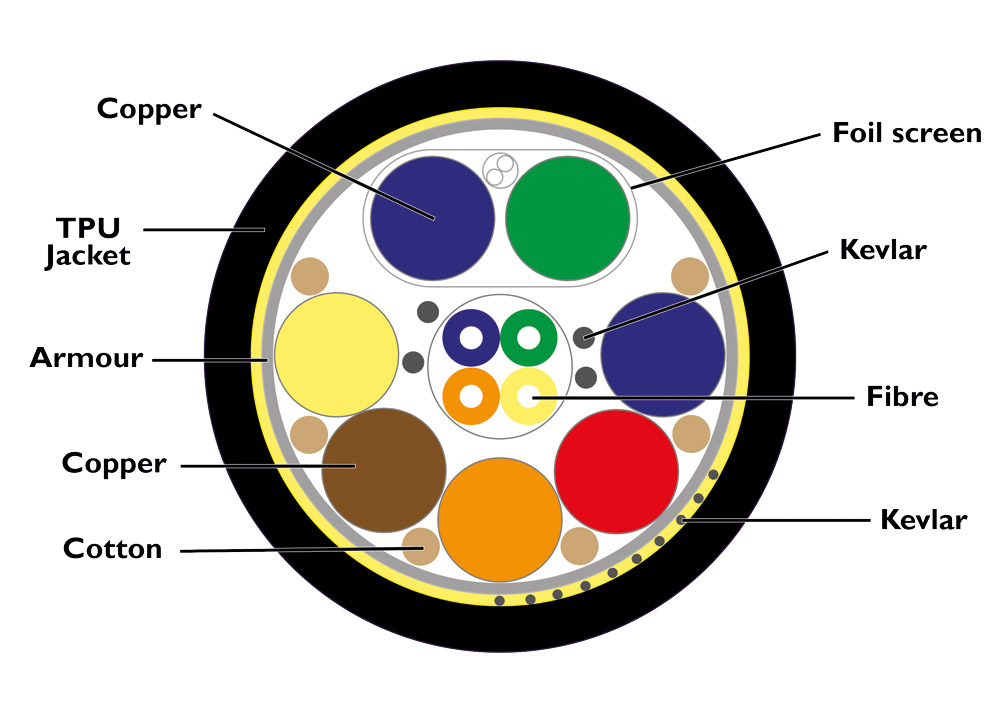

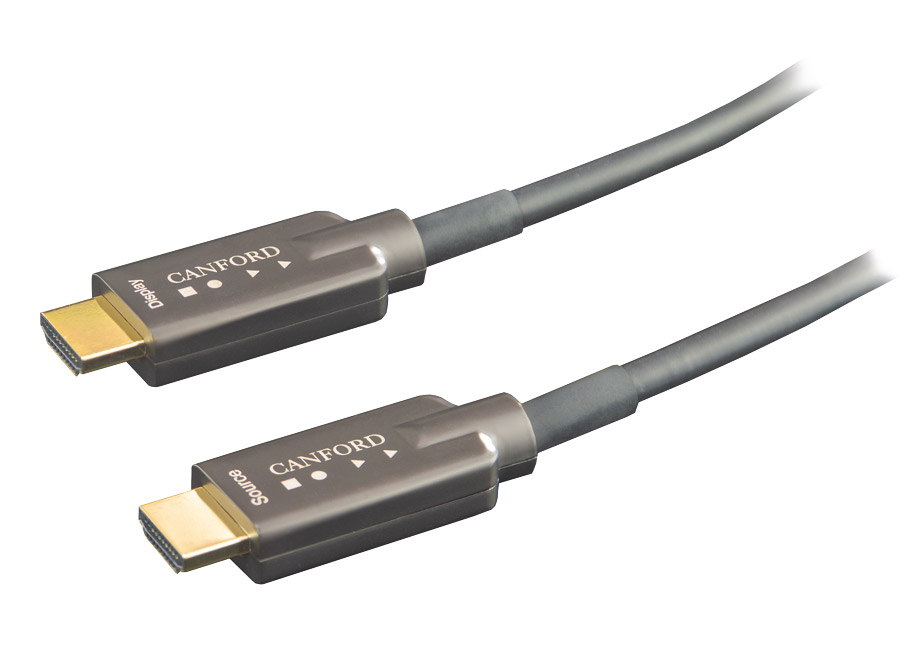

These cables are 5.8mm in diameter with a TPU (thermoplastic polyurethane) jacket. Under the jacket, a layer of kevlar surrounds a flexible, stainless-steel conduit that protects the core of the cable against rodents. Additional Kevlar is placed between wires within the conduit for added strength. Good flexibility is maintained with a bend radius of 45mm. All lengths are terminated with HDMI type A connectors. No external power is required.

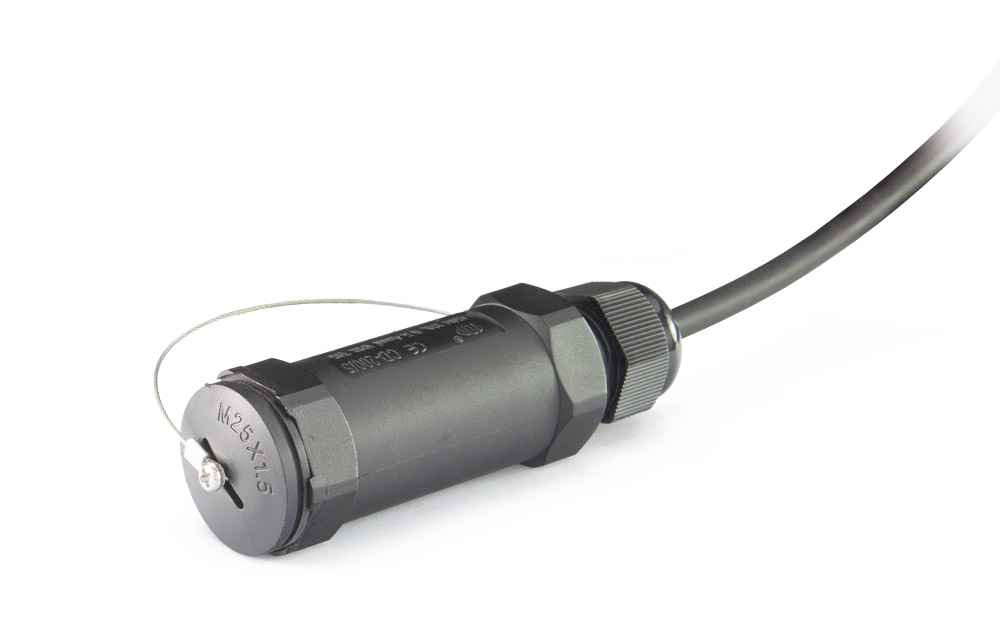

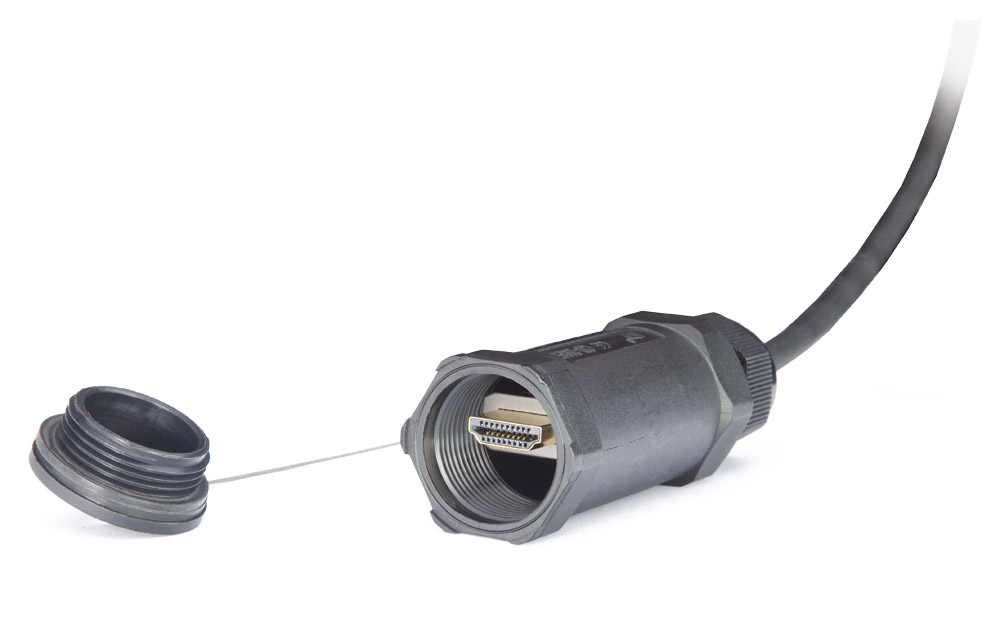

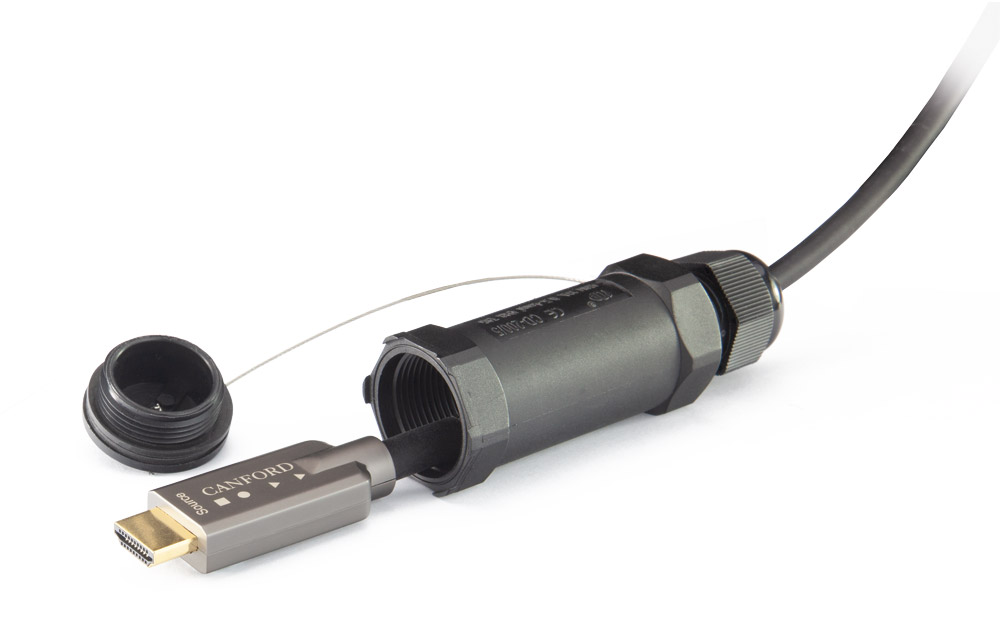

Cables are available in a range of lengths from 10 to 100 metres; 50, 60, 70, 80, 90 and 100 metre lengths are also available on a drum, and fitted with IP68 rated glands, with cap, to protect each HDMI connector when not in use. They support 18Gbps and 4K at 60Hz, with 48-bit colour-depth and 3D capabilities. Audio can be transmitted at 8-channel PCM, Dolby Digital True HD, or DTS-HD Master Audio.

The term HDMI v2.0 is no longer used to describe an HDMI cable and instead is referred to as 'Premium high speed'. For further information on HDMI Standards, go to www.hdmi.org.

Description Price $
ex. VAT
Add to basket
Delivery
CANFORD AO-HD-A10 Active optical HDMI cable, armoured, deployable, 10m Stock code: 38-8701
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
$196.58
CANFORD AO-HD-A15 Active optical HDMI cable, armoured, deployable, 15m Stock code: 38-8702
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
$217.75
CANFORD AO-HD-A20 Active optical HDMI cable, armoured, deployable, 20m Stock code: 38-8703
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$238.92
CANFORD AO-HD-A30 Active optical HDMI cable, armoured, deployable, 30m Stock code: 38-8704
1 in stock Need more?
$281.40
CANFORD AO-HD-A40 Active optical HDMI cable, armoured, deployable, 40m Stock code: 38-8705
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$323.74
CANFORD AO-HD-A50 Active optical HDMI cable, armoured, deployable, 50m Stock code: 38-8706
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$366.09
CANFORD AO-HD-A60 Active optical HDMI cable, armoured, deployable, 60m Stock code: 38-8707
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$408.57
CANFORD AO-HD-A70 Active optical HDMI cable, armoured, deployable, 70m Stock code: 38-8708
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$450.91
CANFORD AO-HD-A80 Active optical HDMI cable, armoured, deployable, 80m Stock code: 38-8709
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$493.39
CANFORD AO-HD-A90 Active optical HDMI cable, armoured, deployable, 90m Stock code: 38-8710
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$535.73
CANFORD AO-HD-A100 Active optical HDMI cable, armoured, deployable, 100m Stock code: 38-8711
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$578.21
CANFORD AO-HD-A50D Active optical HDMI cable, armoured, deployable, 50m, on drum Stock code: 38-8721
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$597.51
CANFORD AO-HD-A60D Active optical HDMI cable, armoured, deployable, 60m, on drum Stock code: 38-8722
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$639.85
CANFORD AO-HD-A70D Active optical HDMI cable, armoured, deployable, 70m, on drum Stock code: 38-8712
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$682.06
CANFORD AO-HD-A80D Active optical HDMI cable, armoured, deployable, 80m, on drum Stock code: 38-8713
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$723.60
CANFORD AO-HD-A90D Active optical HDMI cable, armoured, deployable, 90m, on drum Stock code: 38-8714
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$766.48
CANFORD AO-HD-A100D Active optical HDMI cable, armoured, deployable, 100m, on drum Stock code: 38-8715
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$809.36
