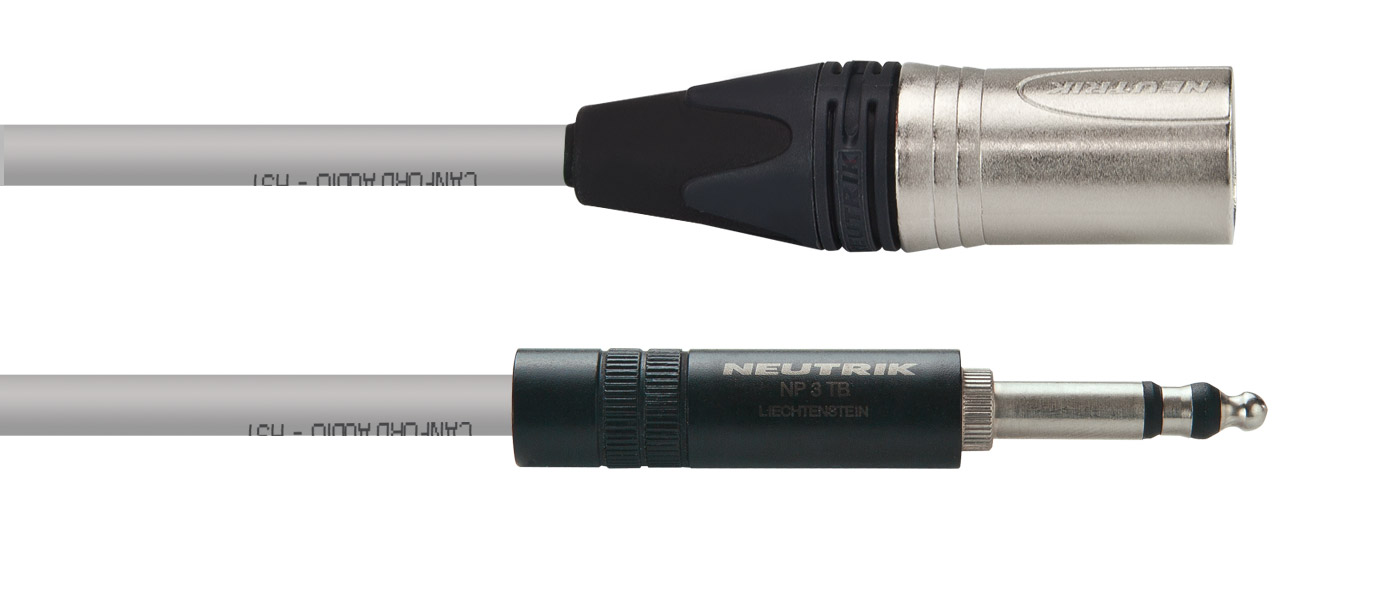

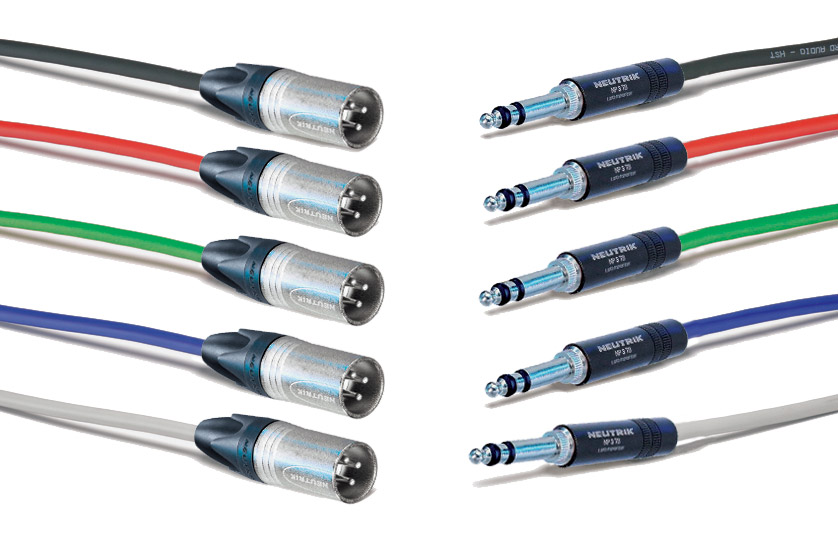

CANFORD XLR MALE - 3-POLE, B-GAUGE JACK CABLES, HST

Prewired cables, ready for use. HST general-purpose, extra-flexible, OFC, screened twisted-pair cable.

Each individual cable is described in detail by the use of an abbreviated sequence in the form:

Canford Cable - 1st connector - 2nd connector - cable type - cable length - cable colour.

Detailed specifications for the connectors and cables are given in their appropriate entries elsewhere. All XLR connectors are solder connection type, not IDC. Abbreviations used in the descriptions are as follows:-

3MXX	-XLR 3-pin male connector 41-032
NP3TB	-Metal bodied 3-pole B-gauge jack 43-151
HST	-HST cable 30-15X

Note: This range of cables comes fitted with 100mm lengths of clear heat-shrink sleeving on the cable as standard, to enable fitting of labels by users.. The un-shrunk sleeve can easily be cut off if not required. Cable lengths and the number of sleeves is outlined below:-

1m	0 sleeve
2 - 3m	1 sleeve
5 - 10m	2 sleeves

Assembled by Canford in the UK.

‘HST’ is a registered trademark of Canford Audio Limited.
