DRAKA ULTRA PRO 50 - UHDTV DIGITAL VIDEO CABLE Low fire hazard

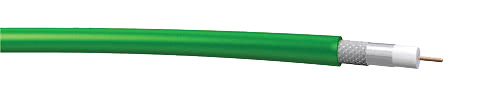

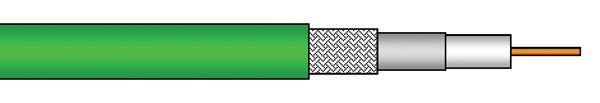

DRAKA ULTRA HD PRO 50 UHD CABLE, FRNC (LFH), Eca, green
DRAKA ULTRA HD PRO 50 UHD CABLE, FRNC (LFH), Eca, greenDRAKA ULTRA HD PRO 50 UHD CABLE, FRNC (LFH), Eca, green

Coaxial 75 ohm cable designed specifically for 12G, 4K (SMPTE 2082), UHD applications.

Technical Specification:
Cable size group: Not in Canford scheme
Inner conductor: Silvered solid copper wire, 0.7mm OD
Dielectric: Foam high density polyethylene, 2.9mm OD
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid
Construction: Coaxial cable
Jacket: FRNC Low fire hazard material, Green
CPR Euroclass: Eca
Overall diameter: 4.5mm
Minimum bend radius: 45mm
Impedance: 75 ohms
Capacitance: 56pf/m nominal
Return loss: 26dB 50-300MHz
22dB 300-3000MHz
Attenuation:MHz 1 10 100 300 500 1000 3000 4000 5000
dB/100m 2.40 3.10 10.10 16.70 22.00 31.20 55.60 65.70 72.8
Velocity of propagation: 78%
Temperature range: -30° to +75°C
Weight: 2.8kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Description Price £
Add to basket
DRAKA ULTRA HD PRO 50 UHD CABLE, FRNC (LFH), Eca, green Green Stock code: 36-925
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ £0.89
100+ £0.85
500+ £0.80
1,000+ £0.76
per metre
