DRAKA ULTRA PRO 100 - UHDTV DIGITAL VIDEO CABLE Low fire hazard

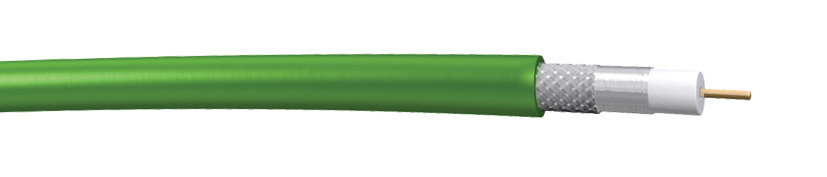

DRAKA ULTRA HD PRO 100 UHD CABLE, FRNC (LFH), Eca, green
DRAKA ULTRA HD PRO 100 UHD CABLE, FRNC (LFH), Eca, green

Coaxial 75 ohm cable designed specifically for 12G, 4K (SMPTE 2082), UHD applications.

Technical Specification:
Cable size group: Not in Canford scheme. 12G only.
Inner conductor: Silvered solid copper wire, 1.2mm OD
Dielectric: Foam high density polyethylene, 4.9mm OD
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid
Construction: Coaxial cable
Jacket: FRNC Low fire hazard material, Green
CPR Euroclass: Eca
Overall diameter: 7.0mm
Minimum bend radius: 70mm
Impedance: 75 ohms
Capacitance: 56pf/m nominal
Return loss: 26dB 50-300MHz
22dB 300-3000MHz
Attenuation:MHz 1 10 100 300 500 1000 3000 4000 5000
dB/100m 1.80 1.60 5.30 9.30 12.30 17.40 31.00 38.00 41.00
Velocity of propagation: 78%
Temperature range: -30° to +75°C
Weight: 6.3kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Description Price £
Add to basket
DRAKA ULTRA HD PRO 100 UHD CABLE, FRNC (LFH), Eca, green Green Stock code: 36-926
386 in stock Need more?
1+ £1.51
100+ £1.43
500+ £1.36
1,000+ £1.28
per metre
