CANFORD SDV-X-LFH - HDTV DIGITAL VIDEO CABLE (0.6/2.8) Extended performance, low fire hazard

CANFORD SDV-X-LFH CABLE Dca (s2 d1 a1), violet
CANFORD SDV-X-LFH CABLE Dca (s2 d1 a1), violet

Extended performance, coaxial 75 ohm cable specifically for HDTV and serial digital video signals, with low-smoke, zero-halogen material outer jacket.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

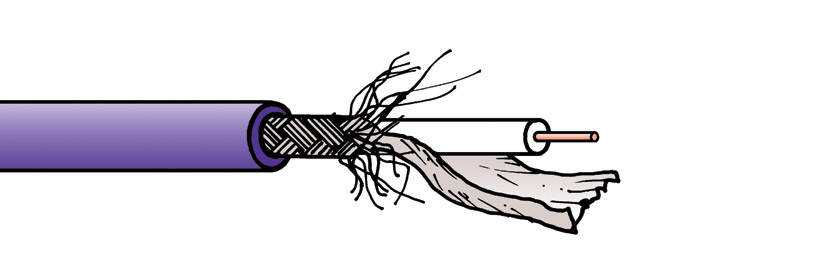

Technical Specifications:
Cable size group: X
Inner conductor: 0.64mm +/-0.01mm plain copper
Dielectric: Foam polyethylene, 2.80mm O.D.
Screen 1: Aluminium/polyester/aluminium tape, longitudinally applied
Screen 2: Tinned copper braid, O.D. 3.4mm
Construction: Coaxial cable
Jacket: Low smoke zero halogen material (FRNC IEC60332-1), O.D. 4.5mm, violet.
CPR Euroclass: Dca-s2,d1,a1
Impedance: 75 +/- 1% ohms
Capacitance: 56pF/m nominal
Return loss: 26dB nom. 50-300MHz
22dB nom. 300-3000MHz
18dB nom. 3000-3500MHz
15dB nom. 3500-5000MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 3.5 10.0 14.1 27.7 39.6 60.9 84.1 105.4 122.8
Weight: 2.8kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6025 CANFORD CONNECT CCBNCX BNC 12G, crimp, 75 ohm, Group X
COAX Connectors 48-5061 COAX CONNS 10-005-W126-FA BNC 12G UHD Male cable, crimp, 75 ohm, black, group X
COAX Connectors 48-5071 COAX CONNS 10-005-W126-FA BNC 12G UHD Male cable, crimp, 75 ohm, black, group X (pack of 100)
Neutrik 48-6372 NEUTRIK NBNC75BFG7X BNC 12G UHD Male cable, rear twist, group X

BNC Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5081 COAX CONNS 10-104-W66-FA BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group X
COAX Connectors 48-5091 COAX CONNS 10-104-W66-FA BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp X (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-462 CANARE BCP-B3F BNC Male cable, group X & Canare L-3CFB
Canare 48-463 CANARE BCP-B3F BNC Male cable, group X & Canare L-3CFB (pack of 100)
COAX Connectors 48-5041 COAX CONNS 10-005-B36-FA BNC 3G HD Male cable, crimp, 75 ohm, group X
COAX Connectors 48-5051 COAX CONNS 10-005-B36-FA BNC 3G HD Male cable, crimp, 75 ohm, group X (pack of 100)
COAX Connectors 48-5060 COAX CONNS 10-005-B36-FA-16 BNC 3G HD Male cable, crimp, 75 ohm, group X, 16mm ferrule (pack of 100)
Neutrik 48-611 NEUTRIK NBNC75BFG7 BNC 3G Male cable, rear twist, group X
Neutrik 48-6311 NEUTRIK NBNC75BFG7-D BNC 3G Male cable, rear twist, group X (pack of 100, disassembled)
Telegartner 48-787 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group X
Telegartner 48-777 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group X (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-713 TELEGARTNER BNC Male cable, crimp, 75 ohm, group X
Telegartner 48-773 TELEGARTNER BNC Male cable, crimp, 75 ohm, group X (pack of 100)

BNC Female - 12G

Brand Code Description
COAX Connectors 48-5087 COAX CONNS 10-054-D126-FA BNC 12G UHD Female cable, crimp, 75 ohm, group X
COAX Connectors 48-5097 COAX CONNS 10-054-D126-FA BNC 12G UHD Female cable, crimp, 75 ohm, group X (pack of 100)

BNC Female - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-759 TELEGARTNER BNC Female cable, crimp, 75 ohm, group X

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5022 COAX CONNS 67-005-B66-FA MICRO BNC 12G UHD Male cable, crimp, group X
COAX Connectors 48-5032 COAX CONNS 67-005-B66-FA MICRO BNC 12G UHD Male cable, crimp, group X (pack of 100)

DIN 1.0/2.3 Male - 12G

Brand Code Description
COAX Connectors 48-5002 COAX CONNS 52-005-B6-FA DIN 1.0/2.3 12G UHD Male cable, crimp, group X
COAX Connectors 48-5012 COAX CONNS 52-005-B6-FA DIN 1.0/2.3 12G UHD Male cable, crimp, group X (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5115 COAX CONNS 52-054-D6-FA DIN 1.0/2.3 3G HD Female cable, crimp, 75 ohms, group X

DIN 1.0/2.3 Male, right-angled - 3G

Brand Code Description
COAX Connectors 48-5009 COAX CONNS 52-104-B6-FA DIN 1.0/2.3 3G HD Male cable, right-angle, crimp, 75 ohm, black, group X
COAX Connectors 48-5019 COAX CONNS 52-104-B6-FA DIN 1.0/2.3 3G HD Male cable, r/angle, crimp, 75 ohm, blk, gp X (pk of 100)

F Connector

Brand Code Description
Telegartner 48-8281 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group X
Telegartner 48-8291 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group X (pack of 100)
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD SDV-X-LFH CABLE Dca (s2 d1 a1), violet Violet Stock code: 36-597
7486 in stock Need more?
6 cable oddments available
1+ £1.46
100+ £1.17
500+ £1.14
1,000+ £1.10
per metre
