POWERPAX POWER SUPPLIES With detachable mains input connections

4 items
POWERPAX POWER SUPPLY 12VDC 1.5A, C8 inlet, lugged case
POWERPAX POWER SUPPLY 12VDC 1.5A, C8 inlet, lugged casePOWERPAX POWER SUPPLY 12VDC 3.3A, C14 inlet, laptop-style casePOWERPAX POWER SUPPLY 12VDC 5A, C14 inlet, laptop-style casePOWERPAX POWER SUPPLY 24VDC 2.7A, C14 inlet, laptop-style case

Compact switched-mode power supplies with standard IEC (C14) or figure-of-eight (C8) mains inlet connectors. Units are available in standard laptop-style housings, or with lugs for screw fixing. Output connections are 2.1mm coaxial connectors (centre contact positive).

Mating cables are not included, order separately as required.

Stock code Output Inlet Housing
23-991 12V DC 1.5A C8 Lugged: 93 x 50 x 27 exc. lugs
23-992 12V DC 3.3A C14 Laptop style: 115 x 53 x 37mm
23-993 12V DC 5A C14 Laptop style: 118 x 53 x 37mm
23-996 24V DC 2.7A C14 Laptop style: 115 x 53 x 37mm

Optional accessories: Canford stocks a wide range of AC mains power leads. Type C13 (mate with C14 inlet) are available in lockable and standard versions. Type C7 (mate with C8 inlet) are available with UK 13A plug (42-160) and with bare ends (42-170).

Description Price $
ex. VAT
Add to basket
Delivery

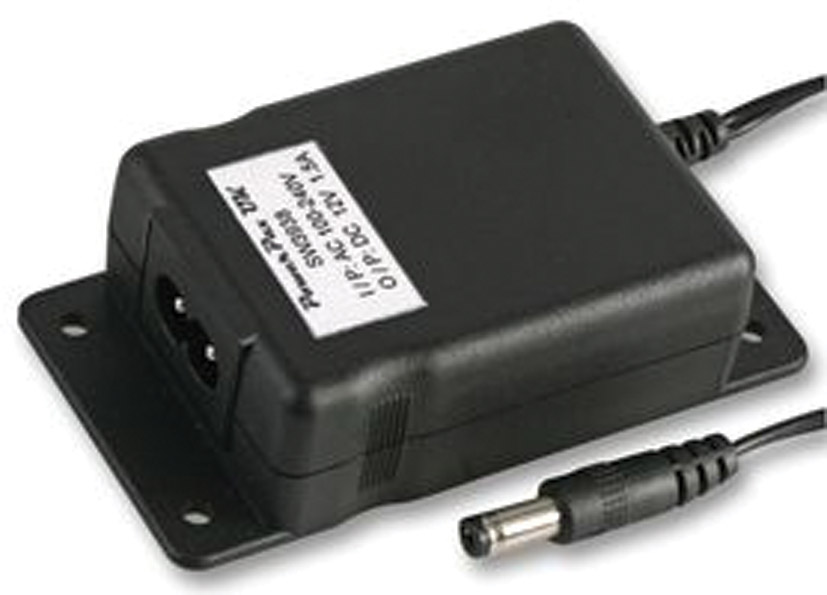

POWERPAX POWER SUPPLY 12VDC 1.5A, C8 inlet, lugged case Stock code: 23-991
Discontinued. Please contact Technical Support for alternatives.
POWERPAX POWER SUPPLY 12VDC 3.3A, C14 inlet, laptop-style case Stock code: 23-992
No longer manufactured. See the product page for suggested alternatives.
POWERPAX POWER SUPPLY 12VDC 5A, C14 inlet, laptop-style case Stock code: 23-993
8 in stock Need more?
$29.15

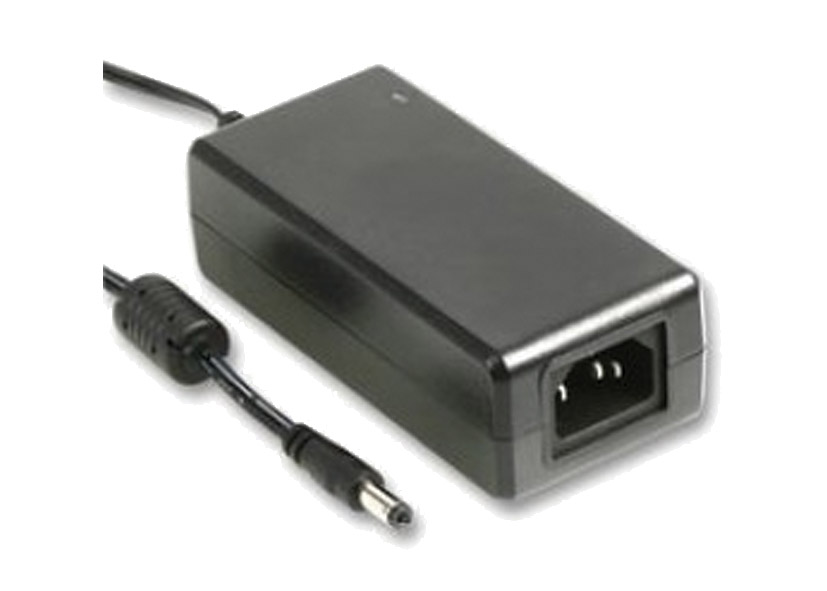

POWERPAX POWER SUPPLY 24VDC 2.7A, C14 inlet, laptop-style case Stock code: 23-996
Ordered on demand, available in Call.
$42.34
