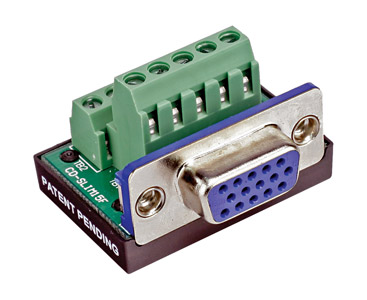

D-sub panel connectors with screw terminal connection. The depth behind panel of only 24mm makes them particularly suitable for use with wallplates etc., where space is limited. Available in 9-pin D-sub and 15-pin high density D-sub, male and female versions. Screw terminals have spring leaves for better clamping. Width 35mm, depth behind panel 24mm.
Ordering note:
Please be aware that the 15-pin versions only offer up the 10 contacts that are used for RGBHV signals. The remaining 5 pins are not connected.
