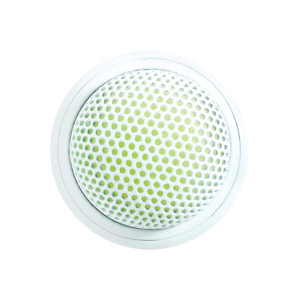

SHURE MX395W/O MICROPHONE Miniature boundary, omnidirectional, no LED, 3-pin XLR, white

Stock code
74-6326
Brand
Shure
Model number
  • MX395W/O
Colour
  • WhiteWhite
SHURE MX395W/O MICROPHONE Miniature boundary, omnidirectional, no LED, 3-pin XLR, white
SHURE MX395W/O MICROPHONE Miniature boundary, omnidirectional, no LED, 3-pin XLR, white

MX395 Microflex Low Profile Boundary Microphone

The Microflex Low Profile Boundary microphone is an ideal table microphone
when minimal presence is of high priority. Perfect for meeting rooms, these
microphones deliver exceptional sound pickup while barely being noticed.
Choose from a selection of colors and pickup patterns for customized table

installations.  Click "view larger" to see additional MX395 models.

Cartridge polar pattern is indicated by the model number suffix:

C = Cardioid, BI = Bidirectional, O= Omnidirectional

  • MX395B/C/BI/O - Black, 3-pin XLR
  • MX395AL/C/BI/O - Aluminum, 3-pin XLR
  • MX395W/O - White, 3-pin XLR
  • MX395B/C/BI/O-LED - Black, 5-pin XLR, logic-controlled muting functions, bi-color status indicator ring

Features

  • Only 1.25 inch (3.8 cm) in diameter
  • Cardioid, omni and bidirectional polar patterns
  • Wide dynamic range and smooth frequency response
  • Available in black, white and aluminum
  • Bi-color status indicator available with -LED models
  • Logic input for remote LED control
  • CommShield Technology

Specifications

Specification Sheet (MX395, English)

Type
Condenser (electret bias)

Frequency Response
50–17000 Hz

view larger

Polar Pattern
MX395/O: Omnidirectional
MX395/C: Cardioid
MX395/BI: Bidirectional

Output Impedance
EIA Rated at 150 Ω (170 Ω actual)

Output Configuration
Active balanced

Sensitivity (at 1 kHz , open circuit voltage)
Cardioid: –35 dBV/Pa (18 mV)
Omnidirectional: –28 dBV/Pa (42 mV)
Bidirectional: –37 dBV/Pa (14 mV)
1 Pascal=94 dB SPL

Maximum sPl (1 kHz at 1% THD, 1 kΩ load)
Cardioid: 121 dB
Omnidirectional: 114 dB
Bidirectional: 123 dB

Equivalent output Noise (A-weighted)
Cardioid: 28 dB SPL
Omnidirectional: 21 dB SPL
Bidirectional: 29 dB

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Cardioid: 66 dB
Omnidirectional: 73 dB
Bidirectional: 65 dB

Dynamic Range (1 kΩ load at 1 kHz)
Cardioid: 93 dB
Omnidirectional: 93 dB
Bidirectional: 94 dB

Common Mode Rejection (10 Hz–100 kHz)
45 dB minimum

Preamplifier output Clipping level (1% THD)
–8 dBV (0.4 V)

Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive
voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLR: Positive sound pressure on diaphragm produces positive
voltage on pin 4 relative to pin 2 of output XLR connector.

Weight
Net: 0.136 kg (0.30 lbs.)
Packaged: 0.374 kg (0.825 lbs.)

Logic Connections
LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage:
-0.7V to 50V.

Environmental Conditions
Operating Temperature: -18–57 °C (0–135 °F)
Storage Temperature: -29–74 °C (-20–165 °F)
Relative Humidity: 0–95%

Power Requirements
MX395: 11–52 Vdc phantom, 2.0 mA
MX395-LED: 48–52 Vdc phantom, 8.0 mA

SHURE MICROPHONES - Boundary types

With many models to choose from, equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex Boundary microphones are 'the high-quality solution for a range of applications, such as altars, boardrooms and distance learning centers'. Available in cardioid, supercardioid and omnidirectional polar patterns, the Microflex cartridges 'give you superior Shure quality sound options for every installation'. In addition, their programmable switches offer the flexibility to be set for Push to Talk, Push to Mute or Push On/Push Off modes. 'Attractively designed with a low profile, professional appearance, the Microflex Boundary microphones come with an easy to use paint mask for your custom-color installations'. The Microflex Multi-Element Boundary microphone delivers 'a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package'.

The Microflex Low Profile Boundary microphone is an 'ideal table microphone' when minimal presence is of high priority. 'Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed'. Choose from a selection of colours and pickup patterns for customised table installations.
