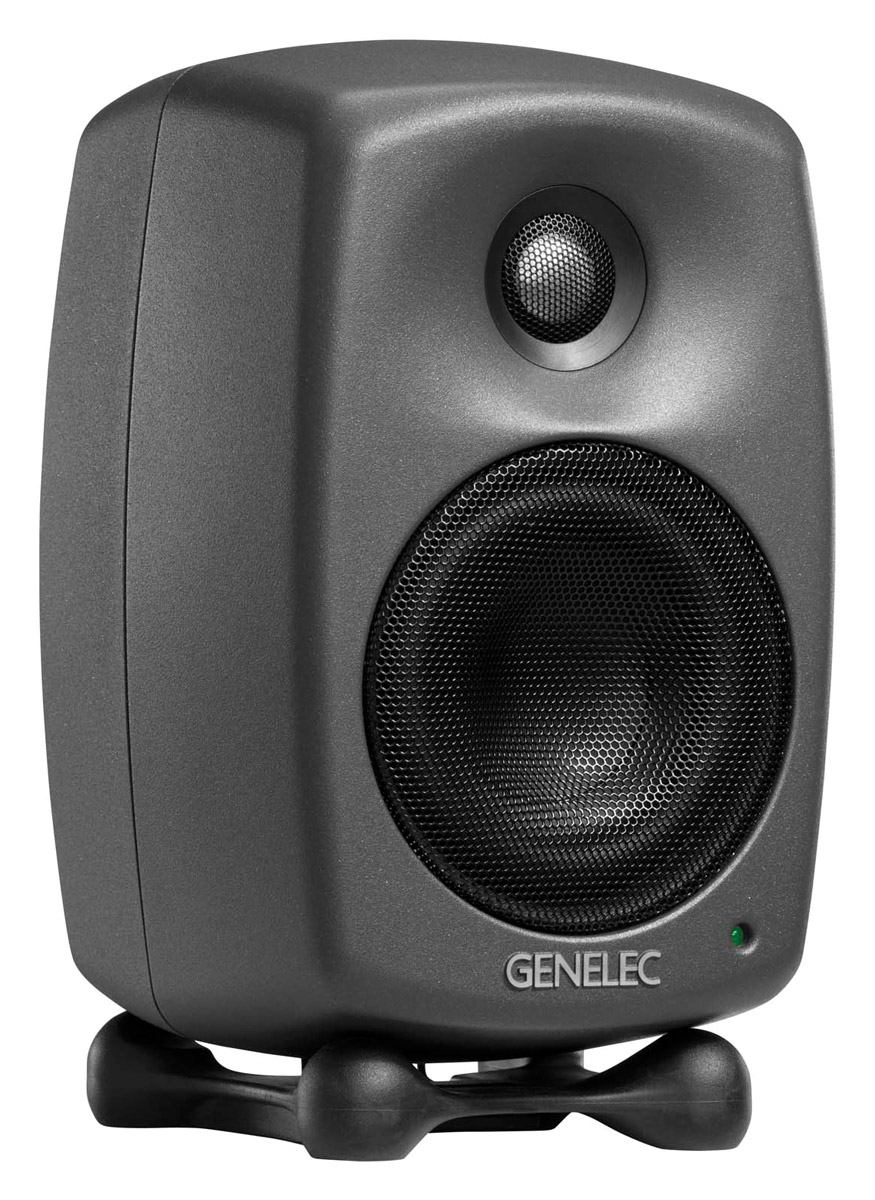

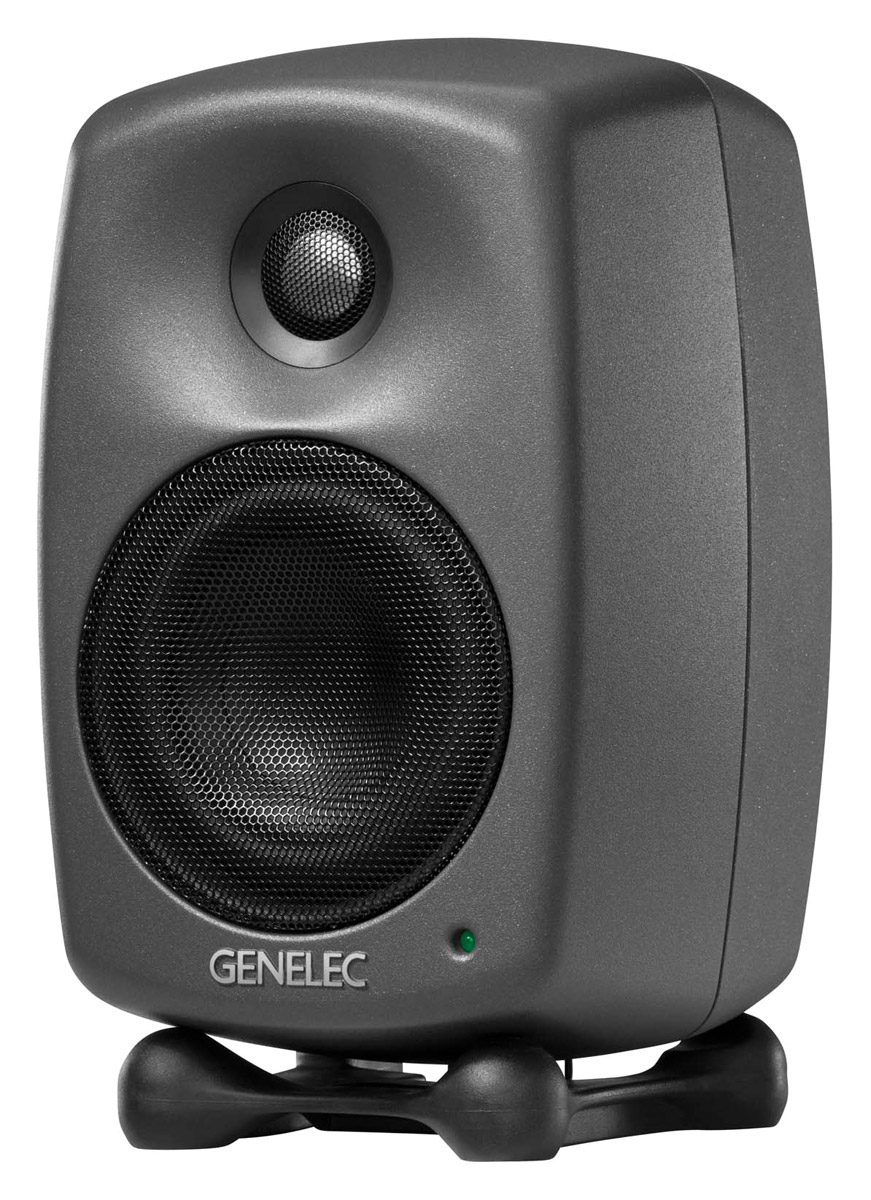

GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark grey

Stock code
76-1558
Brand
Genelec
Model number
  • 8320A
  • 8320APM
Colour
  • Dark GreyDark Grey
GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark grey
GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark greyGENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark greyGENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark greyGENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark greyGENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark grey

Order

VAT / Delivery
£532.00
each (ex. VAT)
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us

GENELEC ACTIVE LOUDSPEAKERS - Studio Monitors

Genelec have been producing some of the most popular studio monitors since 1978, and now have a range of monitor loudspeakers and accessories that have been designed for AV installation, home cinema, professional studio. This selection includes monitors of differing power and dimensions, along with the ability for some to be network controlled.

8000 Series

Genelec 8000 Series monitors, are two-way designs, each housed in Genelec's 'Minimum Diffraction Enclosure', an advanced, die-cast aluminium design, 'built for performance'. The 'sturdy, vibration-free' structure ensures diffraction-free sound reproduction even at highest output levels'. Other features include dedicated amplifiers for each driver, manual room-response control to help compensate for acoustic influences, and on-board overload protection.


8010A - 25/25watts, 76mm LF driver

A two-way bi-amplified active monitor designed and manufactured for professional applications such as near-field monitoring, portable recording, and OB vans, but equally suited to surround sound and multimedia systems. Both the 76mm bass driver and the 19mm, metal-domed, high-frequency driver have their own 25 watt amplifier to provide a long term RMS output of over 91dB SPL and a maximum peak output greater than 105dB. A switch on the back panel enables Genelec's 'Intelligent Signal Sensing' circuitry which switches the monitor to standby mode to save energy when no audio input is detected.

Tone controls offer the user flexibility of frequency output with a three step 'Bass Tilt' control to reduce low frequency response by -2dB, -4dB, or -6dB. 'Desktop' settings reduce low frequencies by 4dB at 200Hz, to compensate for the boost occurred when positioned on a table or similar surface. The front panel has a power indicator LED, on the rear there is an IEC power inlet and AC mains power switch. Accessories available are a floor stand (speaker vertical or horizontal using IsoPod), stand plate (necessary for use with floor stand) and soft carrying bag for two 8010A speakers.

Available in dark grey or white finish.


8020D - 50/50watts, 105mm LF driver

A bi-amplified, class D, two-way speaker suitable for a variety of applications where high-quality sound is needed in a compact space, from near-field and project studio monitoring to surround-sound, high-end installations and multimedia systems. It has magnetic shielding, an aluminium cabinet, active crossover and 2 x 50W amplifiers. Genelec's 'Intelligent Signal Sensing' circuitry switches the monitor to standby when no audio input is detected. The amplifier section has switches for treble tilt, bass roll-off and bass tilt and has a female XLR input. It can also be used as a pair in conjunction with a subwoofer (7050B recommended) as a 2.1 stereo format system or as a 5.1 surround system, including up to 5 x 8020D units in total.

The front-panel mains indicator LED is neatly styled, with rear IEC power inlet, AC mains power switch, and volume control. The speaker has three methods of mounting: 3 mounting points on the back of the monitor for attaching the supplied IsoPod desktop stand, which allows vertical and horizontal positioning and can be fixed to the optional floor stand using the optional stand plate, threaded holes on the back for the supplied keyhole wall-mount adapter and a three eighths inch thread on the base for microphone-stand mounting. Accessories available are a floor stand (speaker vertical or horizontal using IsoPod), stand plate (necessary for use with floor stand) and soft carrying bag for one pair of 8020Ds.

Available in dark grey, raw aluminium, or white finish.


8030C - 50/50watts, 130mm LF driver

A two-way speaker suitable for a variety of applications where high-quality sound is needed in a compact space, from near-field and project studio monitoring to surround-sound, high-end installations and multimedia systems. It has magnetic shielding, an aluminium cabinet, active crossover and 2 x 50W amplifiers. Genelec's 'Intelligent Signal Sensing' circuitry switches the monitor to standby when no audio input is detected. The amplifier section has switches for treble tilt, bass roll-off, bass tilt and ‘Desktop 160Hz’, and has a female XLR input. It can also be used as a pair in conjunction with a subwoofer (7050B recommended) as a 2.1 stereo format system or as a 5.1 surround system, including up to 5 x 8030C units in total. The rear-panel also houses the AC mains power switch, IEC power inlet, and volume control, whilst a front panel green LED illuminates when powered on.

The speaker has three methods of mounting: 3 mounting points on the back of the monitor for attaching the supplied IsoPod desktop stand, which allows vertical and horizontal positioning and can be fixed to the optional floor stand using the optional stand plate, threaded holes on the back for wall or ceiling brackets and a three eighths inch thread for microphone-stand mounting. Accessories available are a floor stand (speaker vertical or horizontal using IsoPod), stand plate (necessary for use with floor stand) and soft carrying bag for one pair of 8030Cs.

Available in dark grey, raw aluminium, or white finish.

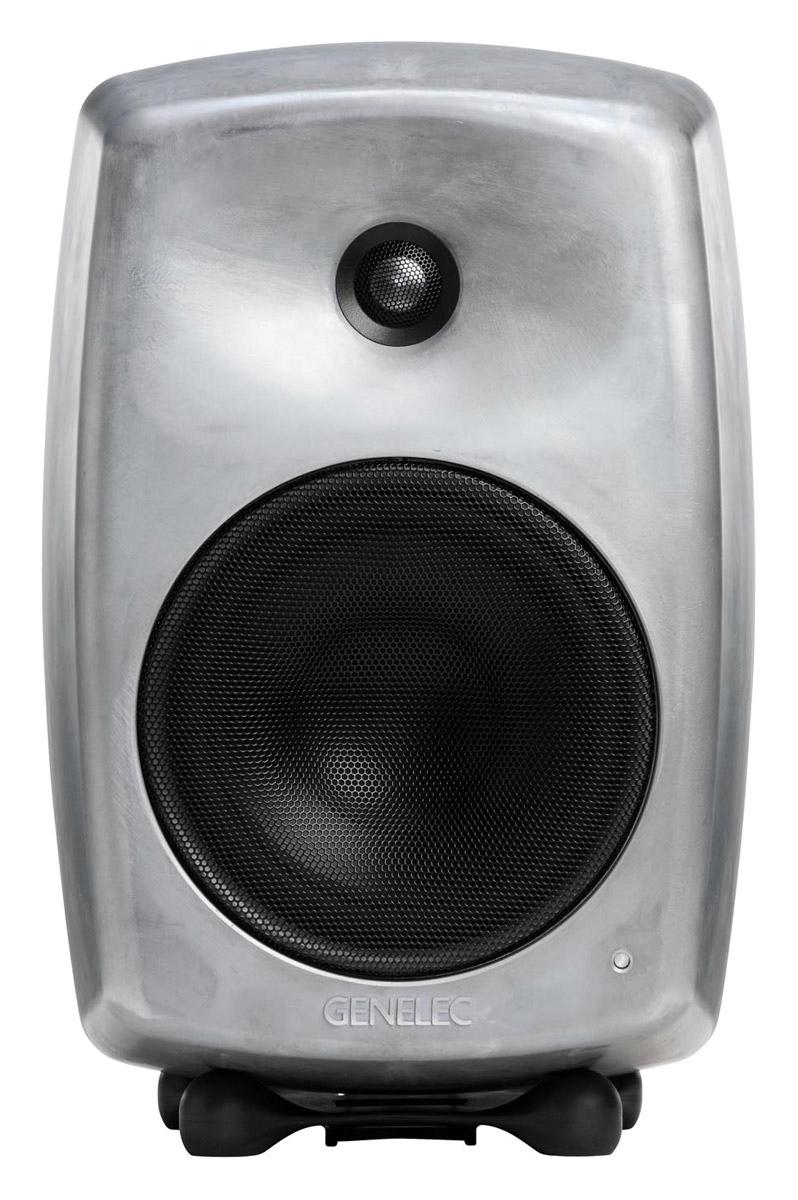

8040B - 90/90watts, 165mm LF driver

A bi-amplified two-way system for main and surround monitoring in small control rooms, OB vehicles and mastering suites. The hard-wearing, aluminium cabinet houses an active crossover, 2 x 90W amplifiers with overload protection, a metal-dome HF driver and polymer bass-driver, both magnetically shielded, and front-panel mains indicator LED. Genelec's 'Intelligent Signal Sensing' circuitry switches the monitor to standby when no audio input is detected. The crossover includes adjustable sensitivity and calibrated 'tilt' switches for bass and treble adjustment. Female XLR balanced input and IEC AC mains power inlet.

The speaker has three methods of mounting: 3 mounting points on the back of the monitor for attaching the supplied IsoPod desktop stand, which allows vertical and horizontal positioning and can be fixed to the optional floor stand using the optional stand plate, threaded holes on the back for wall and ceiling mount brackets and a M10 x 10mm thread for securing the unit to the base. Accessories available are a floor stand (speaker vertical or horizontal using IsoPod), stand plate (necessary for use with floor stand) and soft carrying bag for one pair of 8040Bs.

Available in dark grey, raw aluminium, or white finish.


8050B - 150/120watts, 205mm LF driver

A bi-amplified two-way system for main and surround monitoring in medium-sized control rooms and mastering suites. The hard-wearing, aluminium cabinet houses an active crossover, two amplifiers with overload and thermal protection, a metal-dome HF driver and polymer bass-driver, both magnetically shielded, and front-panel mains indicator LED. Genelec's 'Intelligent Signal Sensing' circuitry switches the monitor to standby when no audio input is detected. The crossover includes adjustable sensitivity and calibrated 'tilt' switches for bass and treble adjustment. Female XLR balanced input and IEC AC mains power input.

The speaker has three methods of mounting: 3 mounting points on the back of the monitor for attaching the supplied IsoPod desktop stand, which allows vertical and horizontal positioning and can be fixed to the optional floor stand using the optional stand plate, threaded holes on the back for wall and ceiling mount brackets and a M10 x 10mm thread for securing the unit to the base. Accessories available are a floor stand (speaker vertical or horizontal using IsoPod), stand plate (necessary for use with floor stand) and soft carrying bag for one 8050B.

Available in dark grey or white finish.

Specifications
8010A 8020D 8030C 8040B 8050B
LF driver: 76mm 105mm 130mm 165mm 205mm
HF driver: 19mm 19mm 19mm 19mm 25mm
Frequency response: 74Hz - 20kHz 62Hz - 20kHz 54Hz - 20kHz 48Hz - 20kHz 38Hz - 20kHz
Lower cut-off frequency: 67Hz 62Hz 47Hz 45Hz 35Hz
Upper cut-off frequency: 25kHz 25kHz 20kHz 20kHz 20kHz
RMS output, 1m: 91dB SPL 93dB SPL 96dB SPL 99dB SPL 101dB SPL
Maximum output, 1m: 105dB 107dB 110dB 115dB 120dB
Amplifier power: 25W/25W 50W/50W 50W/50W 90W/90W 150W/120W
Input impedance: 7k ohms 10k ohms 10k ohms 10k ohms 10k ohms
Level for 100dB SPL: -10dBu to -6dBu mute to -6dBu mute to -6dBu -6 to +6dB -6 to +6dB
Power source (1): 100-240V AC 230V AC (1) 230V AC (1) 230V AC (1) 230V AC (1)
Power consumption
Standby (2): 0.5W 0.5W 0.5W 0.5W 0.5W
Idle: 5W 3W 3W 10W 10W
Full power: 30W 60W 60W 110W 170W
Dimensions:
Width: 121mm 151mm 189mm 237mm 286mm
Depth: 115mm 142mm 178mm 223mm 278mm
Height: 181mm 230mm 285mm 350mm 433mm
Height (inc. Iso-Pod): 195mm 242mm 299mm 365mm 452mm
Weight: 1.5kg 3.2kg 5.0kg 9.4kg 14.4kg

(1) +/-10%, (2) Maximum.

A range of transport cases are available for Genelec 8000 series monitors, see GENELEC LOUDSPEAKERS - Transport Cases

For Genelec loudspeaker mounting hardware and accessories see GENELEC LOUDSPEAKERS - Mounting Accessories

SAM Series - The Ones

The 'Ones' are three-way, coaxial, active monitors, designed to cater for most professional studio environments including smaller studios where space is at a premium, high precision is required, and uneven sound colouration and frequency response need to be combated.

Manufactured using recycled aluminium, each compact monitor has a pair of concealed, oval, low-frequency drivers radiating through slots located on both ends of the enclosure, positioned to be acoustically coaxial with the mid-frequency and high-frequency drivers. This ensures acoustic axes are aligned, resulting in a more accurate point-source radiator. Additionally, using SAM (Smart Active Monitor) technology along with the Genelec GLM software application, which may be downloaded without charge, this range of monitors can be calibrated to ensure spectral balance is achieved for accurate listening.

Genelec SAM series monitor systems can be used with Genelec GLM Loudspeaker Manager kit (76-1548) for full operation.

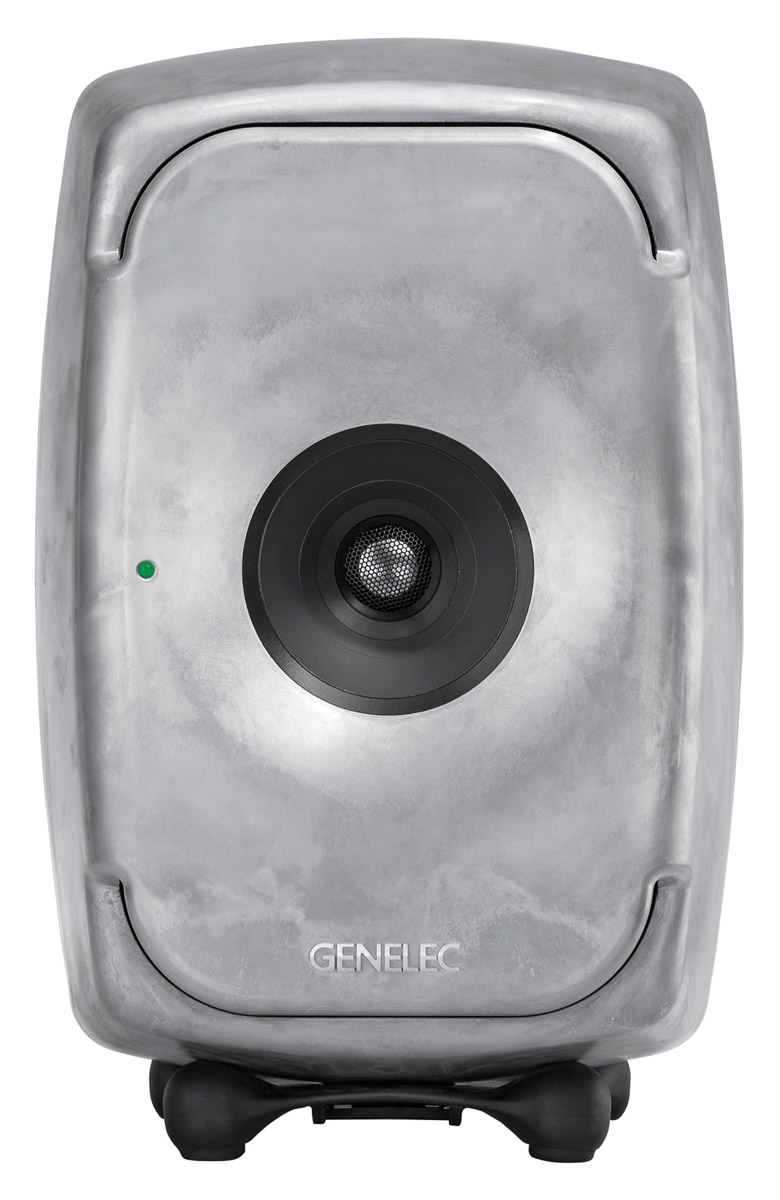

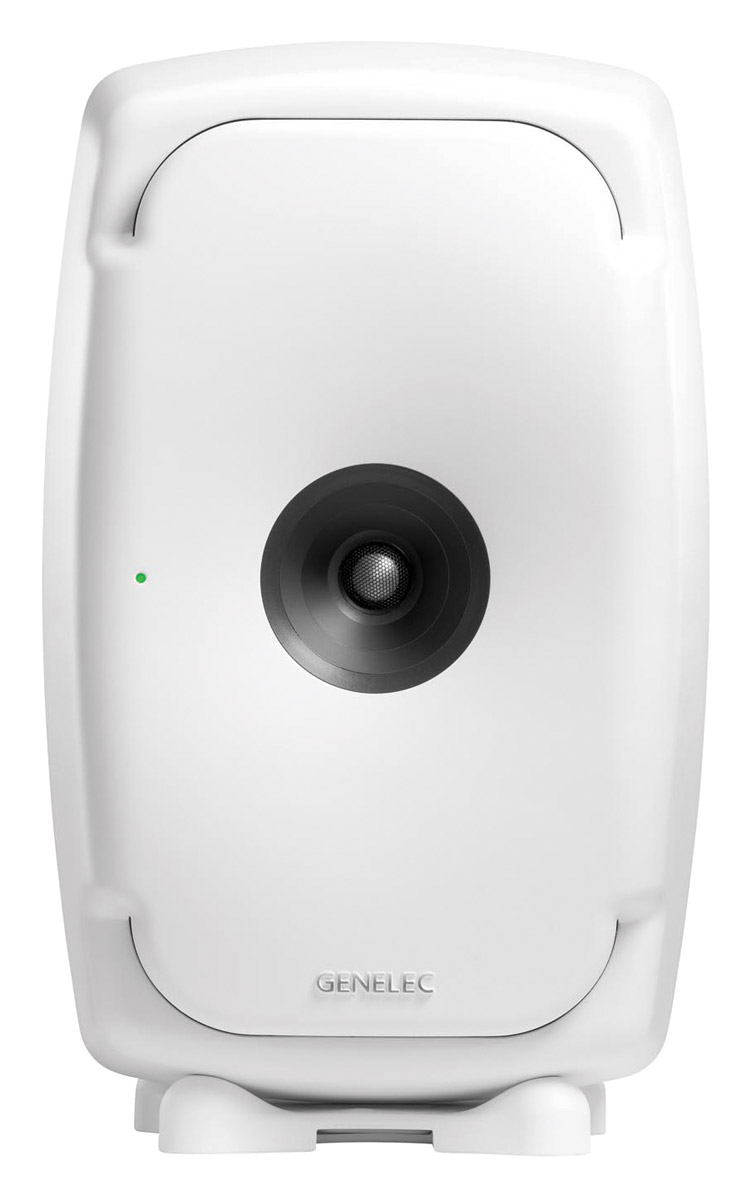

8331A SAM - 72/36/36watts, coaxial

Available in black, dark grey, raw aluminium, and white versions, the 8331A SAM active, three-way monitor has dual 130 x 65mm, oval, low-frequency drivers, 90mm mid-range cone driver coaxial with a 19mm high-frequency metal dome. These drivers are fed by three integrated amplifiers, with 72W dedicated to the LF units, 36W to the MF, and 36W to the HF. A maximum, short-term output of 104dB SPL is complimented by a maximum long-term RMS output of 99dB SPL, and 0dB self-generated noise (at one metre, A-weighted). 8331A SAM monitor has a frequency response of 45Hz to 37kHz(-6dB) and 58Hz to 20kHz. +/-1.5dB. ISS (Intelligent Signal Sensing) senses when the loudspeaker has not received any audio input for a period of one hour, and switches the loudspeaker into sleep mode, consuming less than 0.5W. When an input signal is detected the monitor resumes normal operation and power consumption.

The front baffle has a green power LED; the IEC power inlet for the AC supply and latching power button are on the rear, along with audio and digital connectivity and switching. Dual seven-stage miniature (DIP) switches on the rear give access to functions such as 'Treble Tilt', to attenuate any frequencies above 5kHz by +2dB, -2dB, or -4dB in order to compensate for excessively bright or dull system setup and 'Bass Tilt' levels to attenuate frequencies below 800Hz at -2dB, -4dB, or -6dB, compensating for near-wall positioning and/or room brightness. ISS can be deactivated and DIP switches give access to LED on/off, bass roll-off (-2/-4dB, -6dB when both switches active), desktop reflection compensation to attenuate bass frequencies by 4dB at around 160Hz and a 'stored' setting. If activated, the 'stored' switch enables the monitor to recall the settings used in the GLM 3.0 calibration software, otherwise the monitor uses the adjustments set on the monitor. Switches for Digital A and B select the required digital audio channel (A or B), if both are selected channels A and B are summed and attenuated by 6dB to avoid overload. The user can reduce the monitor output by -10dB or -20dB (-30dB if both selected) by way of DIP switches. Two network connections are available to connect and link to a GLM network, a single balanced 3-pin XLR input is shared for digital in (AES/EBU) and analogue audio in. A single 3-pin XLR output can be used as a digital 'thru' port for AES/EBU signals.

Included accessories: 1x 1.8m AC mains power cable, 1x 5m RJ45 GLM network cable, operating manual.

Available in black, dark grey, raw aluminium, or white finish.


8341A SAM - 250/150/150watts, coaxial

Like the 8331A SAM monitor the 8341A SAM is available in black, dark grey, raw aluminium, or white finishes. Functionality, switching, and connectivity also match the 8331A SAM however, the 8341A SAM has an additional balanced 3-pin XLR input for analogue input, giving digital in (AES/EBU) its own dedicated input. This monitor has dual 170 x 90mm, oval, low frequency drivers, a 90mm mid-range cone, coaxial with a 19mm high-frequency metal dome. The integrated amplifiers that power these drivers are rated at 250W (LF), 150W (MF), and 150W (HF). The maximum short term SPL is 110dB or greater whereas the maximum, long-term RMS output is 101dB SPL. Self-generated noise is rated as less than or equal to 3dB, 1m, A-weighted. The frequency response of this monitor is 45Hz to 20kHz.

Included accessories: 1x 1.8m AC mains power cable, 1x 5m RJ45 GLM network cable, operating manual

Available in black, dark grey, raw aluminium, or white finish.


8351B SAM - 250/150/150watts, coaxial

Genelec 8351B SAM is available in black, dark grey, or white finishes. Functionality, switching, and connectivity also match the 8341B SAM. This monitor has dual 218 x 101mm, oval, low frequency drivers, a 130mm mid-range cone, coaxial with a 25mm high-frequency metal dome. The integrated amplifiers that power these drivers are rated at 250W (LF), 150W (MF), and 150W (HF). The maximum short term SPL is 113dB or greater whereas the maximum, long-term RMS output is 103dB SPL. The frequency response of this monitor is 38Hz to 20kHz.

Included accessories: 1x 1.8m AC mains power cable, 1x 5m RJ45 GLM network cable, operating manual

Available in black, dark grey, raw aluminium, or white finish.


8361A SAM - 700/150/150watts, coaxial

Genelec 8361A SAM is available in black, dark grey, or white finishes. Functionality, switching, and connectivity also match the 8341A SAM SAM. This monitor has dual 263 x 137mm, oval, low frequency drivers, a 130mm mid-range cone, coaxial with a 25mm high-frequency metal dome. The integrated amplifiers that power these drivers are rated at 700W (LF), 150W (MF), and 150W (HF). The maximum short term SPL is 118dB or greater whereas the maximum, long-term RMS output is 109dB SPL. The frequency response of this monitor is 36Hz to 20kHz.

Included accessories: 1x 1.8m AC mains power cable, 1x 5m RJ45 GLM network cable, operating manual

Available in black, dark grey, raw aluminium, or white finish.

Specifications
8331A SAM 8341A SAM 8351B SAM 8361A SAM
LF driver: Dual 130 x 65mm oval Dual 170 x 90mm oval Dual 218 x 101mm oval Dual 263 x 137mm oval
MF driver (coaxial): 90mm 90mm 130mm 130mm
HF driver (coaxial): 19mm metal dome 19mm metal dome 25mm metal dome 25mm metal dome
Frequency Response: 58Hz - 20kHz 45Hz - 20kHz 38Hz - 20kHz 36Hz - 20kHz
LF cutoff (at -6dB): 45Hz 38Hz 32Hz 30Hz
HF cutoff (at -6dB): 37kHz 37kHz 43kHz 43kHz
SPL, Peak (at 1m): 110dB 118dB 123dB 124dB
SPL, Short term (at 1m): 104dB 110dB 113dB 118dB
SPL, Long term (at 1m): 99dB 101dB 103dB 109dB
Amplifier power: 72W/36W/36W 250W/150W/150W 250W/150W/150W 700W/150W/150W
Power source: 100-240V AC 100-240V AC 100-240V AC 100-240V AC
Power consumption
ISS active: ≤0.5W ≤0.5W ≤1W ≤1.5W
Idle: ≤4W ≤16W ≤16W ≤20W
Full power: 60W 250W 200W 600W
Dimensions (WxDxH): 189 x 212 x 305mm 351 x 237 x 243mm 287 x 278 x 452mm 357 x 347 x 593mm
Weight: 6.7kg 9.8kg 14.3kg 31.9kg

A series of Genelec monitor mounting accessories are available for installation purposes, see GENELEC LOUDSPEAKERS - Mounting Accessories

SAM Series

Building on the success of The Ones from the SAM series, these SAM series monitor combine the same technology with the benefits of the 2-way design of the 8000 series monitor loudspeakers. Additionally, using SAM (Smart Active Monitor) technology along with the Genelec GLM software application, which may be downloaded without charge, this range of monitors can be calibrated to ensure spectral balance is achieved for accurate listening.

Genelec SAM series monitor systems can be used with Genelec GLM Loudspeaker Manager kit (76-1548) for full operation.

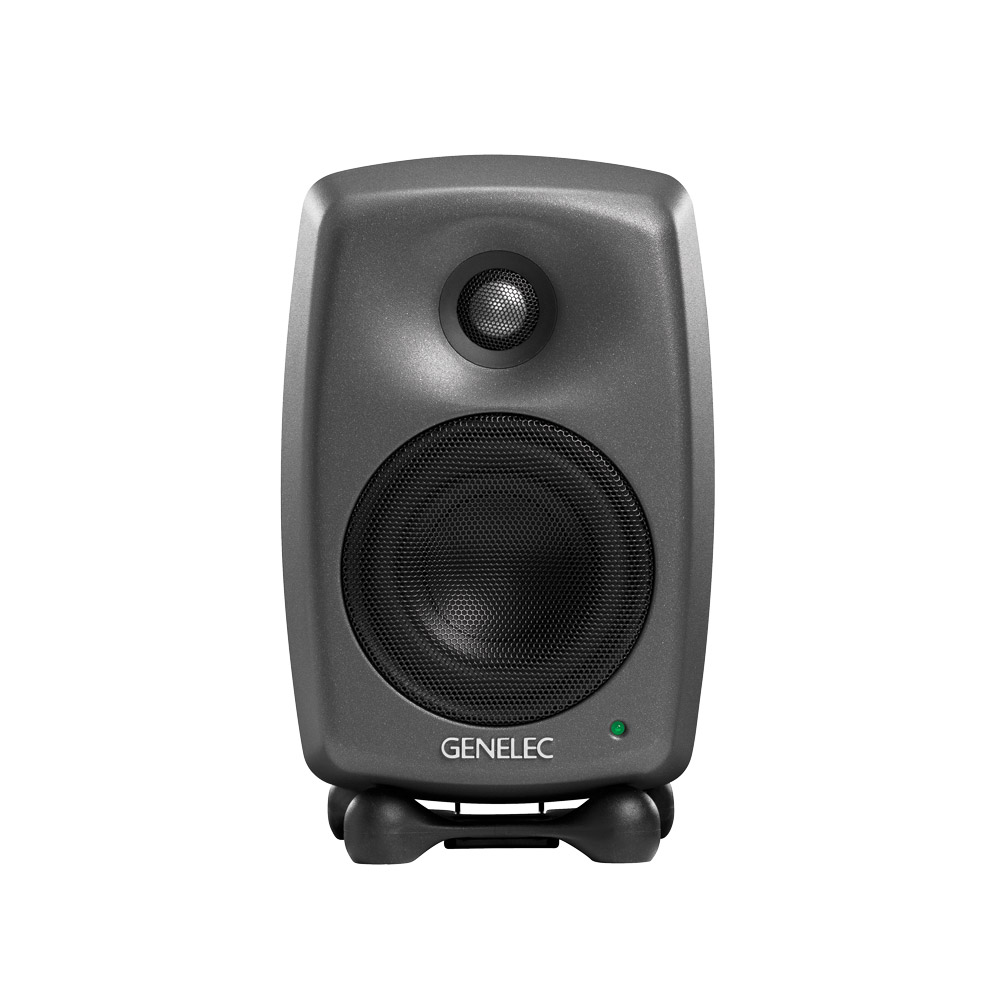

8320A SAM - 50/50watts, 105mm LF driver

A bi-amplified, class D, two-way speaker with analogue input and RJ45 connectivity for use with Genelec's computer operated GLM software. 8320A is suitable for a variety of applications where high-quality sound is needed in a compact space, from near-field and project studio monitoring to surround-sound, high-end installations and multimedia systems. It has magnetic shielding, an aluminium cabinet, active crossover and 2 x Class D 50W amplifiers. 8320A SAM monitor incorporates ISS (Intelligent Signal Sensing), which senses when the loudspeaker has not received any audio input for a period of one hour, and switches the loudspeaker into sleep mode, consuming less than 0.5W. When an input signal is detected the monitor resumes normal operation and power consumption.

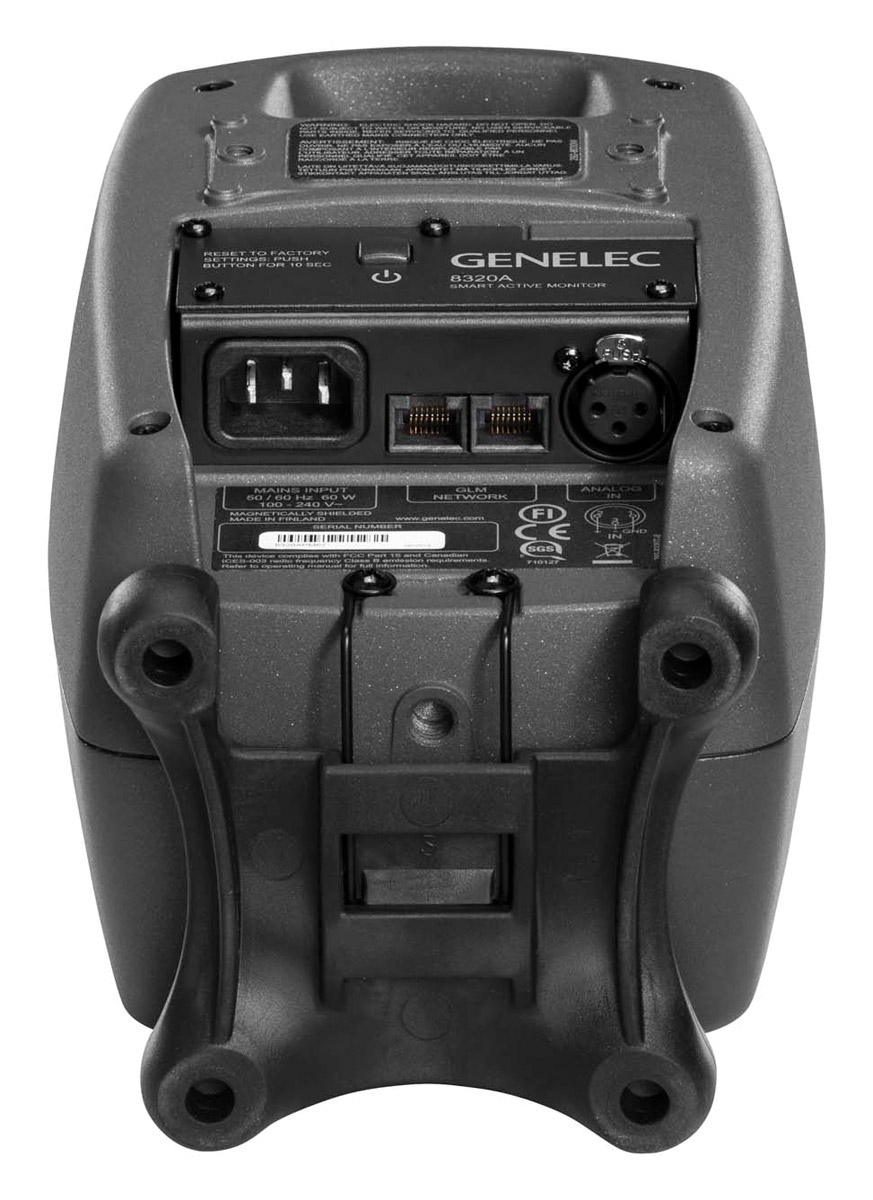

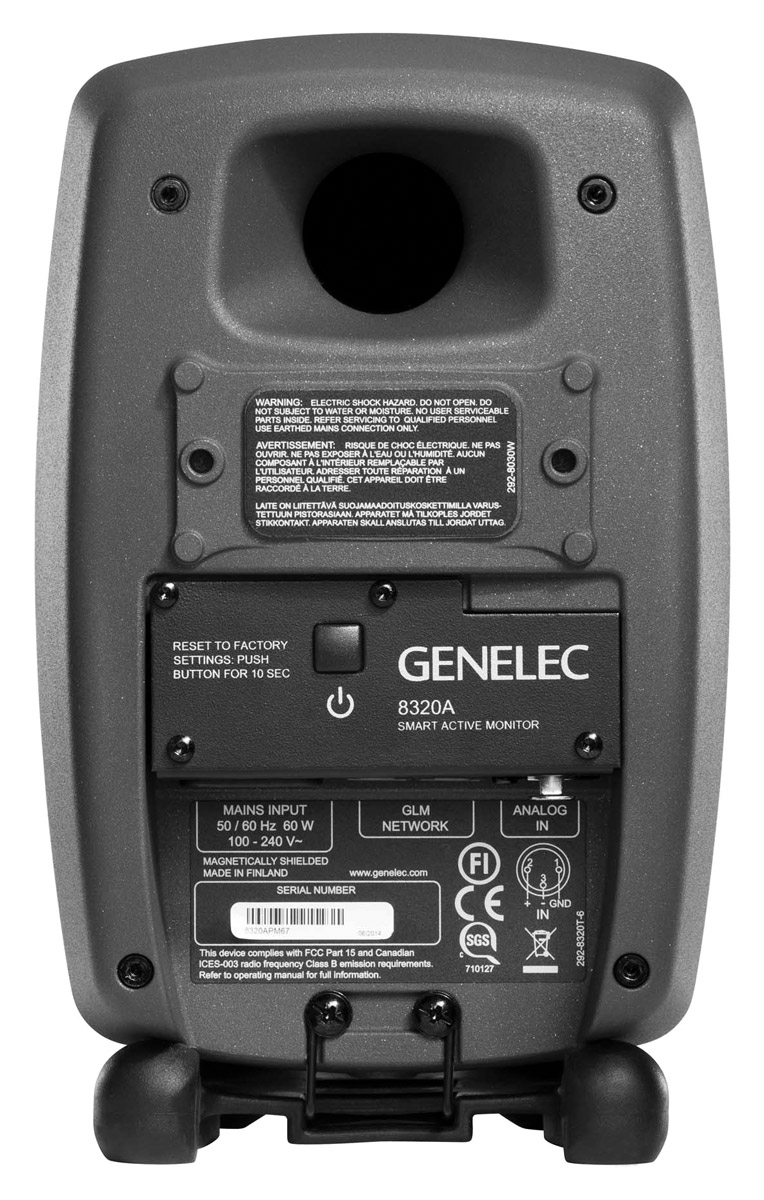

The rear panel of the monitor has an IEC mains input connection, single 3-pin XLR analogue audio input, and dual RJ45 connections for use with GLM network hardware and software control. A single power button allows the user to switch on/off, and reset to factory with a hold of 10seconds.

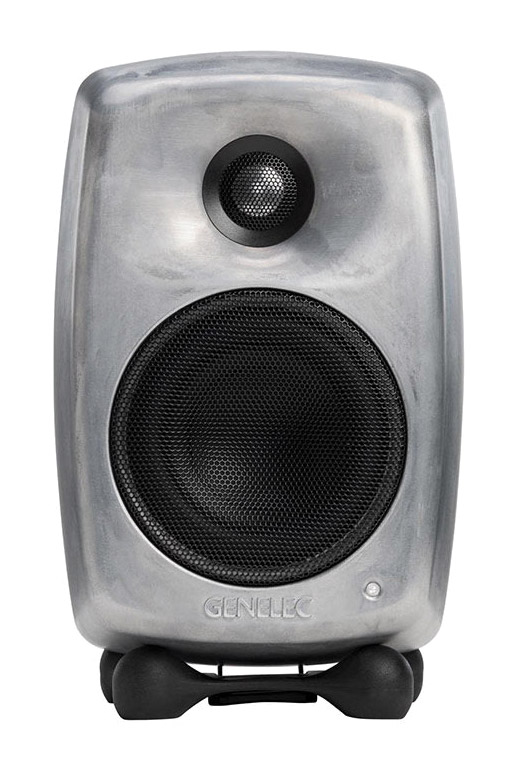

Available in dark grey, raw aluminium, or white finish.

Included accessories: 1x 1.8m AC mains cable, 1x 5m RJ45 GLM connection cable, operating manual.


8330A SAM - 50/50watts, 130mm LF driver

Genelec 8330A SAM is a bi-amplified, class D, two-way speaker with analogue input and RJ45 connectivity for use with Genelec's computer operated GLM software. 8330A SAM differs from 8320A SAM in size, frequency response, and connectivity. Like 8320A SAM, the Class D amplifiers are 50watts each.

The rear panel of the monitor has an IEC mains input connection, single 3-pin XLR analogue audio input, single AES/EBU digital audio input via 3-pin XLR connector, single AES/EBU output also via 3-pin XLR, and dual RJ45 connections for use with GLM network hardware and software control. A power button allows the user to switch on/off, and reset to factory with a hold of 10seconds.

Available in dark grey, raw aluminium, or white finish.

Included accessories: 1x 1.8m AC mains cable, 1x 5m RJ45 GLM connection cable, operating manual.


8340A SAM - 150/150watts, 165mm LF driver

Genelec 8340A SAM is a bi-amplified, class D, two-way speaker with analogue input and RJ45 connectivity for use with Genelec's computer operated GLM software. 8340A SAM differs from 8330A SAM in size, frequency response, output power, and local control.

The rear panel of the monitor has an IEC mains input connection, single 3-pin XLR analogue audio input, single AES/EBU digital audio input via 3-pin XLR connector, single AES/EBU output also via 3-pin XLR, and dual RJ45 connections for use with GLM network hardware and software control. 14x toggle switches allows the user to edit functionality including bass roll-off, bass tilt, led disable, and input selection. A recessed rotary control allows input level control. A power button allows the user to switch on/off, and reset to factory with a hold of 10seconds.

Available in dark grey, raw aluminium, or white finish.

Included accessories: 1x 1.8m AC mains cable, 1x 5m RJ45 GLM connection cable, operating manual.


8350A SAM - 200/150watts, 205mm LF driver

Genelec 8350A SAM is a bi-amplified, class D, two-way speaker with analogue input and RJ45 connectivity for use with Genelec's computer operated GLM software. 8350A SAM differs from 8340A SAM in size, frequency response, and output power.

The rear panel of the monitor has an IEC mains input connection, single 3-pin XLR analogue audio input, single AES/EBU digital audio input via 3-pin XLR connector, single AES/EBU output also via 3-pin XLR, and dual RJ45 connections for use with GLM network hardware and software control. 14x toggle switches allows the user to edit functionality including bass roll-off, bass tilt, led disable, and input selection. A recessed rotary control allows input level control. A power button allows the user to switch on/off, and reset to factory with a hold of 10seconds.

Available in dark grey, raw aluminium, or white finish.

Included accessories: 1x 1.8m AC mains cable, 1x 5m RJ45 GLM connection cable, operating manual.

Specifications
8320A SAM 8330A SAM 8340A SAM 8350A SAM
LF driver: 105mm 130mm 165mm 205mm
MF/HF driver: 19mm 19mm 19mm 25mm
Frequency Response: 66Hz - 20kHz 58Hz - 20kHz 45Hz - 20kHz 38Hz - 20kHz
LF cutoff (at -6dB): 55Hz 45Hz 38Hz 33Hz
HF cutoff (at -6dB): 23kHz 23kHz 22kHz 22kHz
SPL, Peak (at 1m): 107dB 110dB 118dB 121dB
SPL, Short term (at 1m): 100dB 104dB 110dB 112dB
SPL, Long term (at 1m): 94dB 96dB 100dB 103dB
Amplifier power: 50W/50W 50W/50W 150W/150W 200W/150W
Power source: 100-240V AC 100-240V AC 100-240V AC 100-240V AC
Power consumption
ISS active: ≤0.5W ≤0.5W ≤1W ≤1W
Idle: ≤3W ≤3W ≤12W ≤12W
Full power: 50W 50W 180W 230W
Dimensions (WxDxH): 151 x 142 x 242mm 189 x 178 x 299mm 237 x 223 x 365mm 286 x 278 x 452mm
Weight: 3.2kg 5.5kg 8.4kg 12.8kg

A range of transport cases are available for Genelec 8000 series monitors, see GENELEC LOUDSPEAKERS - Transport Cases

For Genelec loudspeaker mounting hardware and accessories see GENELEC LOUDSPEAKERS - Mounting Accessories


GLM Loudspeaker Management Kit

Comprising of GLM network adapter, Genelec 8300A calibration microphone, microphone holder (with both 5/8-inch and 3/8-inch threads) and quick connection guide, this kit is used to link the Genelec GLM software (free to download) via the network adapter to 'The Ones' series of monitors and compatible SAM sub-woofers. Once connected, AutoCal calibration may be implemented to adjust monitor levels, frequency responses, time alignment, phase adjustment and determine unlimited setup files for quick recall.

The rear face of the desktop GLM network adaptor has a USB 2.0 type B connector that can be used to power the unit via a compatible computer or mains adapter. A yellow LED shows power on status. A 3.5mm jack provides connectivity to the 9310A volume controller; a second 3.5mm jack allows for the connection of the included 8300A calibration microphone. Two RJ45 network connections link to compatible monitors and are complete with terminator (the latter being optional).


9101B Remote Controller

Available in both white and black finishes, 9101B wireless volume controller offers volume, mute, and group preset navigation control of SAM studio monitors and subwoofers via the optional 8300-601 GLM network adapter kit. Also compatible with F One and F Two subwoofers. Operation has a maximum distance of 30m but does not require line of sight.


9320A SAM Reference Controller

9320A Reference Controller is a smart monitoring device designed as a solution to integrating all of the user's key monitoring technologies. The hardware enables management of Genelec SAM loudspeakers in setups from stereo to immersive. The tactile monitor controller offers haptic feedback to allow for faster workflow without the need the graphical interface of GLM. Stereo and stereo-with-subwoofer monitoring systems can be directly connected to the 9320A using the analogue and AES/EBU input/output connections, whilst USB connection can be used to monitor a stereo audio input from a computer. The headphone output is compatible with impedances ranging from 16-600 ohms, with a THD+N of less than -110 dB, and dynamic range of 126dB. Continuous A, C and Z weighted SPL monitoring, which is displayed on the display of the 9320A, allows visual assessment of listening safety. SPL is sampled using the included reference microphone for in-room audio and calculated using headphone sensitivity data for the headphone audio. The audio engineer sound exposure dose is logged, and hearing health exposure dose alarms can be set.

Included accessories: 1x Genelec factory-calibrated reference microphone, 1x microphone clip, 1x 2m USB-C to USB-C cable.

Dimensions (HxWxD): 60 x 190 x 139mm. Weight: 0.9kg

  Description Price £
ex. VAT
Add to basket
Delivery
GENELEC 8010A LOUDSPEAKER Active, 2-way, 25/25W, 96dB, dark grey Dark Grey Stock code: 76-019
1 in stock Need more?
£270.80
GENELEC 8010A LOUDSPEAKER Active, 2-way, 25/25W, 96dB, white White Stock code: 76-1183
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£270.80
GENELEC 8020D LOUDSPEAKER Active, 2-way, 50/50W, 100dB, dark grey Dark Grey Stock code: 76-014
2 in stock Need more?
£415.80
GENELEC 8020D LOUDSPEAKER Active, 2-way, 50/50W, 100dB, raw aluminium Raw Aluminium Stock code: 76-021
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£415.80
GENELEC 8020D LOUDSPEAKER Active, 2-way, 50/50W, 100dB, white White Stock code: 76-1184
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£415.80
GENELEC 8030C LOUDSPEAKER Active, 2-way, 50/50W, 104dB, dark grey Dark Grey Stock code: 76-015
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£532.00
GENELEC 8030C LOUDSPEAKER Active, 2-way, 50/50W, 104dB, raw aluminium Raw Aluminium Stock code: 76-022
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£532.00
GENELEC 8030C LOUDSPEAKER Active, 2-way, 50/50W, 104dB, white White Stock code: 76-1185
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£532.00
GENELEC 8040B LOUDSPEAKER Active, 2-way, 90/90W, 105dB, dark grey Dark Grey Stock code: 76-016
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£840.00
GENELEC 8040B LOUDSPEAKER Active, 2-way, 90/90W, 105dB, raw aluminium Raw Aluminium Stock code: 76-023
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£840.00
GENELEC 8040B LOUDSPEAKER Active, 2-way, 90/90W, 105dB, white White Stock code: 76-1186
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£840.00
GENELEC 8050B LOUDSPEAKER Active, 2-way, 150/120W, 110dB, dark grey Dark Grey Stock code: 76-017
1 in stock Need more?
£1,340.00
Clearance
£1,150.00
GENELEC 8050B LOUDSPEAKER Active, 2-way, 150/150W, 110dB, white White Stock code: 76-1187
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,340.00
GENELEC 8331A SAM LOUDSPEAKER Active, coaxial, 72/36/36W, 104dB, analogue/AES in, black Black Stock code: 76-1531
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,840.00
GENELEC 8331A SAM LOUDSPEAKER Active, coaxial, 72/36/36W, 104dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1532
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,840.00
GENELEC 8331A SAM LOUDSPEAKER Active, coaxial, 72/36/36W, 104dB, analogue/AES in, raw aluminium Raw Aluminium Stock code: 76-1530
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,840.00
GENELEC 8331A SAM LOUDSPEAKER Active, coaxial, 72/36/36W, 104dB, analogue/AES in, white White Stock code: 76-1533
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,910.00
GENELEC 8341A SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 110dB, analogue/AES in, black Black Stock code: 76-1534
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£2,330.00
GENELEC 8341A SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 110dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1535
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£2,330.00
GENELEC 8341A SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 110dB, analogue/AES in, raw aluminium Raw Aluminium Stock code: 76-1540
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£2,330.00
GENELEC 8341A SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 110dB, analogue/AES in, white White Stock code: 76-1536
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£2,330.00
GENELEC 8351B SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 113dB, analogue/AES in, black Black Stock code: 76-1537
Price on application, please call us.
POA
GENELEC 8351B SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 113dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1538
Price on application, please call us.
POA
GENELEC 8351B SAM LOUDSPEAKER Active, coaxial, 250/150/150W, 113dB, analogue/AES in, white White Stock code: 76-1539
Price on application, please call us.
POA
GENELEC 8361A SAM LOUDSPEAKER Active, coaxial, 700/150/150W, 118dB, analogue/AES in, black Black Stock code: 76-1555
Price on application, please call us.
POA
GENELEC 8361A SAM LOUDSPEAKER Active, coaxial, 700/150/150W, 118dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1556
Price on application, please call us.
POA
GENELEC 8361A SAM LOUDSPEAKER Active, coaxial, 700/150/150W, 118dB, analogue/AES in, white White Stock code: 76-1557
Price on application, please call us.
POA
GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, dark grey Dark Grey Stock code: 76-1558
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£532.00
GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, raw aluminium Raw Aluminium Stock code: 76-1559
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£532.00
GENELEC 8320A SAM LOUDSPEAKER Active, 2-way, 50/50W, 100dB, analogue in, white White Stock code: 76-1560
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£532.00
GENELEC 8330A SAM LOUDSPEAKER Active, 2-way, 50/50W, 104dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1561
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£690.00
GENELEC 8330A SAM LOUDSPEAKER Active, 2-way, 50/50W, 104dB, analogue/AES in, raw aluminium Raw Aluminium Stock code: 76-1562
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£690.00

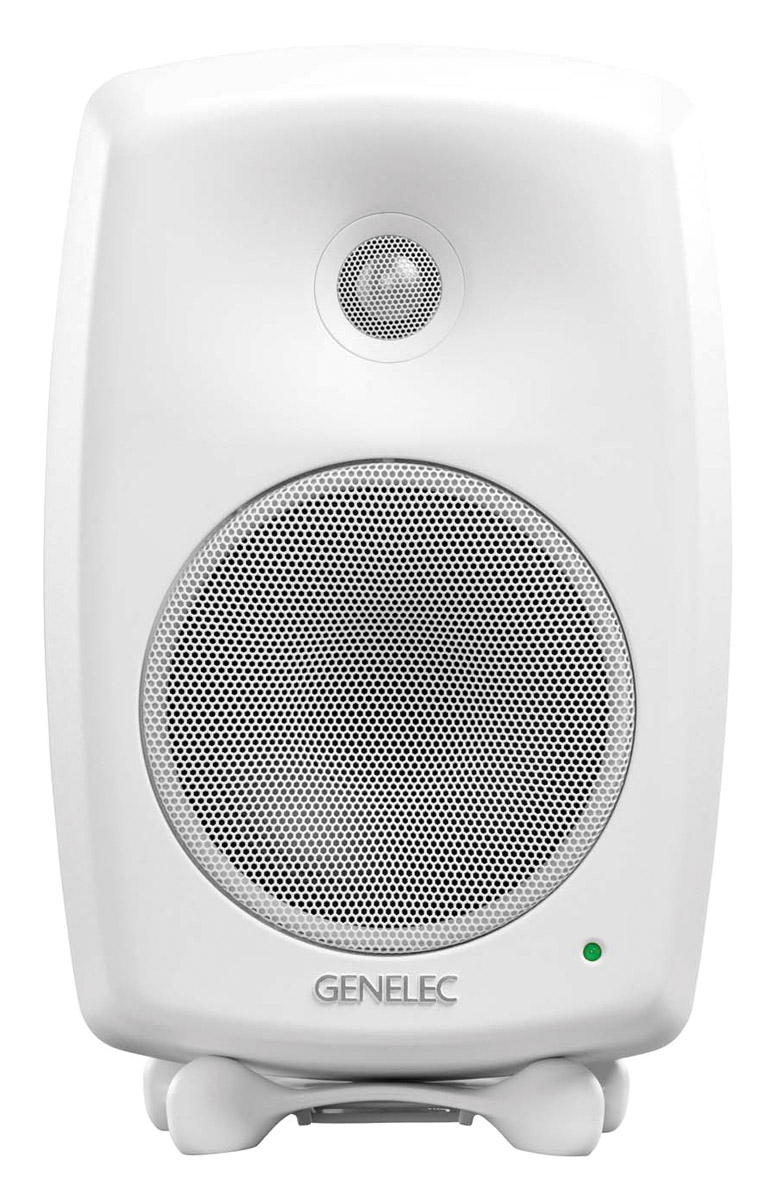

GENELEC 8330A SAM LOUDSPEAKER Active, 2-way, 50/50W, 104dB, analogue/AES in, white White Stock code: 76-1563
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£690.00
GENELEC 8340A SAM LOUDSPEAKER Active, 2-way, 150/150W, 110dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1564
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,200.00
GENELEC 8340A SAM LOUDSPEAKER Active, 2-way, 150/150W, 110dB, analogue/AES in, raw aluminium Raw Aluminium Stock code: 76-1565
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,200.00
GENELEC 8340A SAM LOUDSPEAKER Active, 2-way, 150/150W, 110dB, analogue/AES in, white White Stock code: 76-1566
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,200.00
GENELEC 8350A SAM LOUDSPEAKER Active, 2-way, 200/150W, 112dB, analogue/AES in, dark grey Dark Grey Stock code: 76-1567
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,740.00
GENELEC 8350A SAM LOUDSPEAKER Active, 2-way, 200/150W, 112dB, analogue/AES in, white White Stock code: 76-1568
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£1,740.00
GENELEC GLM LOUDSPEAKER MANAGER KIT For SAM monitors Stock code: 76-1548
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
£274.10
GENELEC 9101B VOLUME CONTROLLER Wireless, for GLM kit, black Black Stock code: 76-1546
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£66.97
GENELEC 9101B VOLUME CONTROLLER Wireless, for GLM kit, white White Stock code: 76-1547
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£66.97
GENELEC 9320A SAM REFERENCE CONTROLLER Desktop, for SAM monitors Stock code: 76-1550
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£1,040.00
