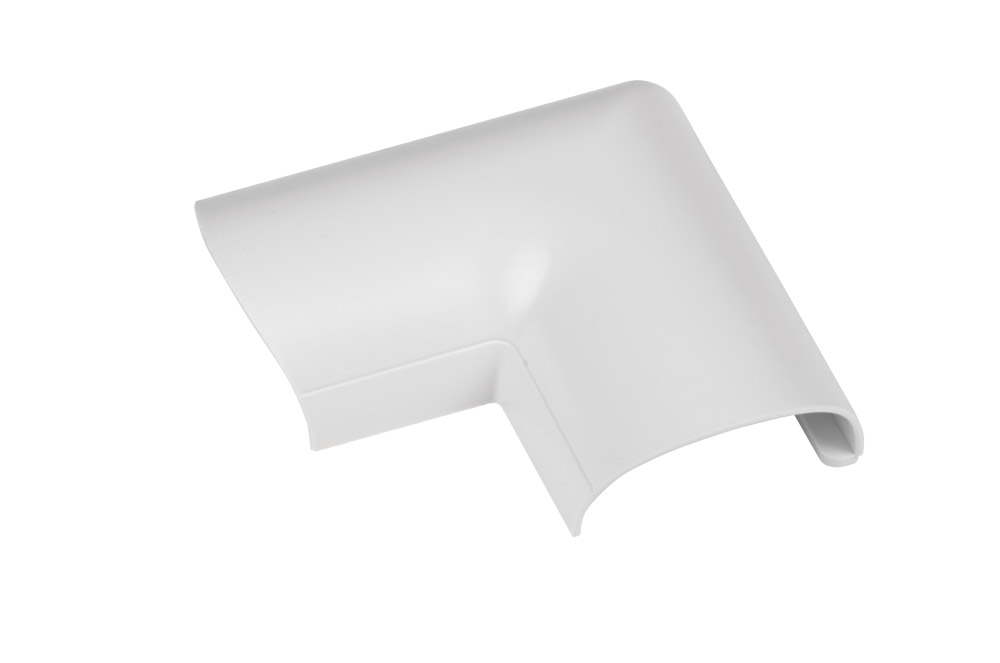

D-LINE FLDB3015W 1/2-ROUND CLIP-OVER DOOR TOP BEND, For 30 x 15mm trunking, white

Stock code

39-1343

Brand

D-Line

Model number

FLDB3015W

Colour

D-LINE FLDB3015W 1/2-ROUND CLIP-OVER DOOR TOP BEND, For 30 x 15mm trunking, white

Order

VAT / Delivery

£1.25
each (ex. VAT)
10+	£1.13

Quantity

16 in stock Need more?

RoHS Exempt

Also bought

Find similar

D-LINE SELF-ADHESIVE CABLE TRUNKING AND ACCESSORIES

An innovative range of self-adhesive trunking, with all sizes featuring an integral hinged lid with snap latch along its length. The hinge is formed from a flexible polymer that is extruded into the profile, to give full flexibility and durability. All sizes feature a single-piece design in a semi-circle 'D' shape, in a range of colours, and are available with a wide selection of clip-on accessories such as bends of every direction, tees, connectors and more. The range offers an improved visual appearance over conventional snap-lid square or rectangular profile trunking and a faster installation time.

Accessories

Flat bend	Change direction by 90 degrees on flat surfaces
Internal bend	Join lengths around 90 degrees inside corners
External bend	Join lengths around 90 degrees outside corners
Door top bend	Change direction by 90 degrees around frame tops
Flat adapter	Connect 30 x 15mm trunking to flat surfaces
Box adapter	Join 30 x 15mm trunking to surface boxes
Box adapter tee	Split trunking to join a surface box
Equal tee	Join 3 lengths of the same profile
Reducing tee	Split 50 x 25mm trunking to join 30 x 15mm trunking
Skirting tee	Split 30 x 15mm trunking to join 50 x 25mm trunking
End cap	Neatly finishes open ends of trunking
Coupler	Joins two lengths on flat surfaces

For fire-rated cable clips and fixings see D-LINE CABLE CLIPS - Fire rated

Surface boxes

These plastic, surface-mounting back boxes are suitable for a wide range of applications. Manufactured from flame-retardant ABS, they are much less brittle than traditional electrical back boxes and so less prone to damage during installation, or if additional cable entry cut-outs are required. All types feature, a 30 x 15mm 'D' shaped cable-entry push-out tab for use with box adapters or box tee adapters; a selection of cable-entry knockouts on the base; and a selection of mounting holes for ease of installation.

Single-gang types are designed for use with face plates 86mm x 86mm; Double-gang types are designed for use with face plates 146mm x 86mm. White boxes are available in 28mm or 35mm depth; black boxes are available in 28mm depth. Fully safety tested and certified to BS4662:2006+A1:2009.

Cable tidy socket enclosures

These socket enclosures are manufactured from robust ABS, and offer a neat and safe solution of storing extension sockets and 'cable spaghetti'. The rear of the unit has three cable-entry points, positioned so cables can enter neatly from trunking on skirting, at either side, or from above. The top has a vented, click-lock cover. Available in small, to suit 4-gang extensions up to 280mm; or large, to suit 6-gang up to 340mm.

Certified to BS EN60670-22:2006
