DX Hub provides 4x DX Link ports each carrying 32x32 channels of 96kHz audio, that can be used to connect up to 8x DX expander units. Each of the four sockets can support up to two DX168/DX164-W/DX012 expanders or one DX32 expander. A single CAT5 run from the DX Hub to the mixer reduces cabling requirements. Optional 19-inch rackmount kit available.
Dimensions (WxDxH): 171 x 195.4 x 42.4mm. Weight: 1.2kg
DX012 - Rackmount, 12x outputs, 96kHz
DX012 is a rackmount, remote output expansion module that provides 12x 3-pin XLR outputs, with three configuration options: 12x analogue line outputs, 8x analogue line outputs + 4x stereo AES outputs, or 4x analogue line outputs + 8x stereo AES outputs. It can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 1U 19-inch space. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.
Dimensions (WxDxH): 482.6 x 214.7 x 48.2mm. Weight: 2.95kg
DX164-W - Wallmount, 16x inputs, 4x outputs, 96kHz
DX164-W is a wall mountable expander that adds remote 16x input, 4x output I/O to compatible mixing consoles. The reversible mounting frame allows for in-wall or on-wall mounting, and with custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.
Dimensions (WxDxH): 210 x 87 x 210mm. Weight: 3.2kg
DX168 - Portable, 16x inputs, 8x outputs, 96kHz
DX168 is a rugged, 96kHz portable expander for adding remote, 16x input, 8x output I/O to compatible mixing consoles. The Expander’s design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. The expander offers the convenience and portability needed in rental, education, houses of worship and many other environments due to it's weight and durability. An optional 4U rack mounting kit is available which allows installation in 19-inch racks. DX168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.
Dimensions (WxDxH): 410 x 190 x 185mm. Weight: 4.6kg
GX4816 - Rackmount, 48x inputs, 16x outputs, 96kHz
GX4816 is a 96kHz audio expander that provides 48x microphone preamps, 16x line outs, and dual DX ports for the remote expansion of compatible consoles. The expander can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U, 19-inch space. GX4816 can be used with dLive systems via the use of a gigaACE card installed on the dLive console.
Dimensions (WxDxH): 481.6 x 229.5 x 255mm. Weight: 8kg
AR84 - Rackmount, 8x input, 4x outputs, 48kHz
AR84 is an 8x XLR input, 4x XLR output rackmount expander. The eight microphone preamps offer +60dB of gain with -20dB pad for line level sources, whilst the four line outputs are balanced, relay protected line outputs on 3-pin XLR. AR84 can be placed up to 100m away from the mixer for maximum flexibility of positioning, and is fitted with rack ears for installation in a 1U, 19-inch rack space. The AR84 connects over a single Cat5 cable to the mixer or upstream Expander.
Dimensions (WxDxH): 482.6 x 205 x 48.2mm.
AB168 - Portable, 16x input, 8x outputs, 48kHz

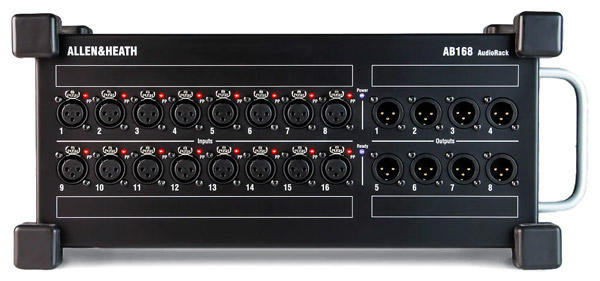

AB168 expander has a rugged design with hard-wearing rubber bumpers, and allows placement directly on the stage floor during performances. Weighing 4.8kg and featuring a sturdy carry handle, AB168 also offers the convenience and portability needed in rental, education, houses of worship and many other environments. The expander features 16x microphone preamp with +60dB of gain, phantom power, and -20dB pad; and 8x 3-pin XLR outputs. An expander port allows the daisy-chaining of two compatible expanders or connection to ME series personal mixers, see ALLEN & HEATH PERSONAL MONITORING - ME Series. An optional 4U rack mounting kit is available for installation in 19-inch racks.
Dimensions (WxDxH): 411.45 x 189 x 182.1mm. Weight: 4.8kg
AR2412 - Rackmount, 24x inputs, 12x outputs, 48kHz
AR2412 is a rackmount, 48kHz, 24x 3-pin XLR input, 12x 3-pin XLR output expander with each input preamp allowing +60dB of gain and -20dB pad for line level sources. AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning and includes rack ears for mounting in a 3U 19-inch rack space. The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system, see ALLEN & HEATH PERSONAL MONITORING - ME Series.
Dimensions (WxDxH): 482.6 x 219.4 x 136.7mm. Weight: 5kg
