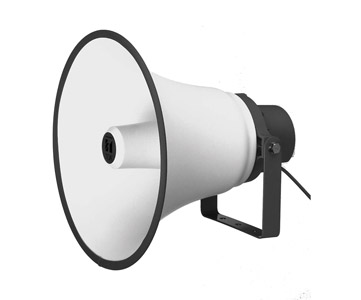

TOA TC-615M LOUDSPEAKER Horn, round, 15W, 70/100V, IP65, white

Stock code
76-602
Brand
TOA
Model number
  • TC-615M
Colour
  • WhiteWhite
TOA TC-615M LOUDSPEAKER Horn, round, 15W, 70/100V, IP65, white
TOA TC-615M LOUDSPEAKER Horn, round, 15W, 70/100V, IP65, white

Order

VAT / Delivery
$174.20
each (ex. VAT)
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us

TOA HORN LOUDSPEAKERS

With a response more suitable for speech, these combination reflex horn speakers are recommended for use in stadia, transport stations, factories or perimeter protection. The loudspeakers are designed with IP rated weatherproofing and are therefore applicable to outdoor positioning.

Featuring phenolic resin diaphragms to avoid moisture absorption, durable off-white powder coating on the surface of the aluminium horns, and stainless steel brackets and screws. SC series horns have oval shaped flares whereas TC series horns have round flares. TC series horns are also supplied in three parts; Bell, Centre, and Bracket for user assembly.

The yoke bracket has 9mm (SC series) or 11mm (TC series) fixing holes; connection is by means of a captive lead, 600mm long. The high-impedance models have an input impedance selector switch (four steps for 100V line, and five steps for 70V line) which facilitates impedance settings without requiring disassembly. The switch is also equipped with an off position to prevent speaker damage resulting from incorrect impedance setting during installation.

Technical Specification

SC Series
SC-610 SC-615 SC-630 SC-610M SC-615M
Input: 10W 15W 30W 10W 15W
Output: 110dB SPL 112dB SPL 113dB SPL 110dB SPL 112dB SPL
Response: 315Hz -12.5kHz 280Hz-12.5kHz 250Hz-10kHz 315Hz-12.5kHz 280Hz-12.5kHz
Impedance: 8 ohms 8 ohms 8 ohms - -
Taps, 100V line: - - - 10, 5, 3, 1W 15, 10, 5, 3W
Taps, 70V line: - - - 10, 5, 2.5, 1.5, 0.5W 15, 7.5, 5, 2.5, 1.5W
IP Rating: IP65 IP66 IP67 IP68 IP69
Dimensions (WxHxD): 172 x 161 x 188mm 222 x 179 x 234mm 285 x 227 x 277mm 172 x 161 x 188mm 222 x 179 x 234mm
Weight: 1kg 1.1kg 1.7kg 1.2kg 1.3kg
TC Series
TC-615 TC-631 TC-615M TC-631M TC-651M
Input: 15W 30W 15W 30W 50W
Output: 108dB SPL 110dB SPL 108dB SPL 110dB SPL 111dB SPL
Response: 250Hz-7kHz 200Hz-6kHz 250Hz-7kHz 200Hz-6kHz 200Hz-6kHz
Impedance: 8 ohms 16 ohms - - -
Taps, 100V line: - - 15, 10, 5, 3W 30, 15, 10, 5W 50, 30, 15W
Taps, 70V line: - - 15, 7.5, 5, 2.5, 1.5W 30, 15, 7.5, 5, 2.5W 50, 25, 15, 7.5W
IP Rating: IP65 IP65 IP65 IP65 IP65
Dimensions (diam x D): 400 x 376mm 500 x 463mm 400 x 376mm 500 x 463mm 400 x 376mm
Weight: 3kg 4.1kg 3.2kg 4.5kg 4kg
