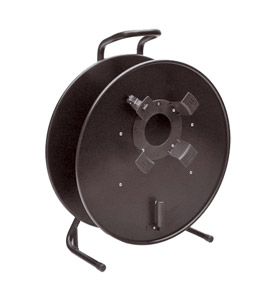

CANFORD CABLE DRUM CD580CTS
CANFORD CABLE DRUM CD580CTS

CANFORD CABLE DRUMS - Steel drum

This range of robust cable-drums all have steel drums, with steel tube frames. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums are available with three different styles of side flange - plain, with blanking-plate, or with cable tail supports.

‘Plain’ types have a solid steel flange. ‘Blank plate’ versions have a removable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable. ‘Cable tail’ types have an open hub plus four brackets on the flange face to enable the cable tail to be brought out from the hub of the drum at a gentle angle (important for coaxial and essential for fibre cables) and coiled and secured around the brackets.

All models except CD260 have a folding winding-handle on the drum flange. The CD260 has a fixed handle. Drums and frames are black.

Dimensions

Code Model Flange Hub Hub Flange Weight
diam.(mm) diam.(mm) width(mm) style (kg)
35-5011 CD260 260mm 135mm 125mm Plain 2.60
35-5012 CD300 300mm 135mm 125mm Plain 3.20
35-5013 CD301 300mm 178mm 142mm Blank plate 3.40
35-5014 CD380 380mm 178mm 142mm Blank plate 5.90
35-5015 CD381 380mm 240mm 170mm Blank plate 6.00
35-5016 CD385 380mm 178mm 210mm Blank plate 5.90
35-5017 CD460 460mm 178mm 142mm Blank plate 7.80
35-5018 CD461 460mm 240mm 170mm Blank plate 8.70
35-5019 CD462 460mm 320mm 170mm Blank plate 10.00
35-5020 CD580 580mm 320mm 170mm Blank plate 13.90
35-5021 CD301CTS 300mm 178mm 142mm Cable tail 3.60
35-5022 CD380CTS 380mm 178mm 142mm Cable tail 6.20
35-5023 CD381CTS 380mm 240mm 170mm Cable tail 6.80
35-5024 CD385CTS 380mm 178mm 210mm Cable tail 5.90
35-5025 CD460CTS 460mm 178mm 142mm Cable tail 8.00
35-5026 CD461CTS 460mm 240mm 170mm Cable tail 8.70
35-5027 CD462CTS 460mm 320mm 170mm Cable tail 10.00
35-5028 CD580CTS 580mm 320mm 170mm Cable tail 13.90

Capacities (tight pack)

Code Model 6.5mm cable 12.5mm cable 15.9mm cable
(HST, SDV-L) (FSM12, PSF1/9) (FSJ8, FSM24)
35-5011 CD260 98m 28m 11m
35-5012 CD300 145m 36m 20m
35-5013 CD301 134m 38m 16m
35-5014 CD380 260m 70m 36m
35-5015 CD381 240m 57m 45m
35-5016 CD385 403m 105m 62m
35-5017 CD460 387m 109m 54m
35-5018 CD461 432m 103m 57m
35-5019 CD462 302m 72m 56m
35-5020 CD580 707m 168m 101m
35-5021 CD301CTS 134m 38m 16m
35-5022 CD380CTS 260m 70m 36m
35-5023 CD381CTS 240m 57m 45m
35-5024 CD385CTS 403m 105m 62m
35-5025 CD460CTS 387m 109m 54m
35-5026 CD461CTS 432m 103m 57m
35-5027 CD462CTS 302m 72m 56m
35-5028 CD580CTS 707m 168m 101m

For help finding a cable drum to meet your requirements see the Cable Drum Capacity Calculator.

Ordering Note

All figures given are based upon a theoretical ‘tight pack’ and do not take into account any maximum weight loadings for drums being exceeded. It is recommended that an allowance of up to 30% be made to accommodate loose winding. A lower percentage could be used if the crew are known to always wind the drums neatly!
