NEUTRIK FI8 NEUTRICON Female insert

Stock code
40-827
Brand
Neutrik
Model number
  • FI8

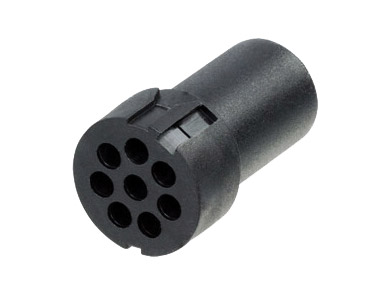

NEUTRIK FI8 NEUTRICON Female insert

Image may be provided for illustrative purposes only, please refer to the product description.

NEUTRIK NEUTRICON CIRCULAR PLUG CONNECTOR SYSTEM

This is a complete plug connection system, allowing simplified production of cable and chassis connectors with up to 8 contacts, using only 8 components. The system consists of 3 types of metal housings, 2 contact carriers (which fit in all of the 3 housings), and a cable strain relief to the established Neutrik design. The housings are high tolerance zinc-aluminium die castings, Cu-plated, Ni-plated and black hard-matt Cr-plated. The design protects the contacts from misalignment damage during operational use. The vibration-proof locking mechanism automatically locks on insertion, and can be easily parted by simply pulling on the outer housing of the cable plug. Standard shells (SC8, RP8 MC8) have a small keyway at 0° and a large keyway at 180°. An alternative arrangement is available on two shells (SC81, RP81) with a small keyway at 0° and a large keyway at 90°.

The contact arrangement is a conventional 8 pin/socket contact system. Moulded male inserts accept solder, crimp (to MIL C 22520 F) or PCB mount pin contacts, and female inserts accept similar style socket contacts. Female and male inserts can be fitted interchangeably in any of the metal housings.

The cable strain-relief clamp is to the standard Neutrik design, well established on the X series XLR connectors, whereby the clamp also serves to retain the plug insert. The cable screen can be connected coaxially with the housing by way of a separate contact component.

The SC8W is a special version of the cable housing which, when used with the SR8W gland, provides a connector that, when mated, is dust and waterproof to IP54.

Ordering note:

Cable plugs and panel sockets, with solder contacts, are available as fully assembled connectors. For other combinations, order component parts separately as required.

  Description Price £
ex. VAT
Add to basket
Delivery
NEUTRIK OSC8F NEUTRICON Cable plug, black, with insert and NEUTRICON Female solder contacts Black Stock code: 40-821
50 in stock. Need more?
£13.78
Clearance
£6.50
NEUTRIK OSC8F-NI NEUTRICON Cable plug, nickel, with insert and NEUTRICON Female solder contacts Nickel Stock code: 40-822
93 in stock. Need more?
1+ £13.78
10+ £12.54
50+ £11.85
100+ £10.47
NEUTRIK OSC8M NEUTRICON Cable plug, black, with insert and NEUTRICON Male solder contacts Black Stock code: 40-823
22 in stock. Need more?
1+ £11.68
10+ £10.63
50+ £10.04
100+ £8.88
NEUTRIK OSC8M-NI NEUTRICON Cable plug, nickel, with insert and NEUTRICON Male solder contacts Nickel Stock code: 40-824
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ £11.82
10+ £10.76
50+ £10.17
100+ £8.98
NEUTRIK ORP8F-NI NEUTRICON Panel socket, nickel, with insert and NEUTRICON Female solder contacts Nickel Stock code: 40-836
3 in stock. Need more?
£8.06
Clearance
£3.00
NEUTRIK ORP8M NEUTRICON Panel socket, black, with insert and NEUTRICON Male solder contacts Black Stock code: 40-837
45 in stock. This item is discontinued, available only while stocks last.
£4.58
Clearance
£1.00
NEUTRIK ORP8M-NI NEUTRICON Panel socket, nickel, with insert and NEUTRICON Male solder contacts Nickel Stock code: 40-838
93 in stock. Need more?
1+ £6.24
10+ £5.68
50+ £5.37
100+ £4.74
NEUTRIK SC8 NEUTRICON Cable plug Stock code: 40-811
41 in stock. Need more?
1+ £6.64
10+ £6.04
50+ £5.71
100+ £5.05
NEUTRIK SC8W NEUTRICON Cable plug Stock code: 40-813
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK MC8 NEUTRICON Cable socket Stock code: 40-812
4 in stock. Need more?
1+ £2.28
10+ £2.07
50+ £1.96
100+ £1.73
NEUTRIK SR8 NEUTRICON Cable gland Stock code: 40-819
44 in stock. Need more?
1+ £0.56
10+ £0.51
50+ £0.48
100+ £0.43
NEUTRIK SR8W NEUTRICON Cable gland Stock code: 40-818
36 in stock. Need more?
1+ £1.16
10+ £1.06
50+ £1.00
100+ £0.88
NEUTRIK RP8 NEUTRICON Panel socket Stock code: 40-831
Temporarily out of stock, expected on: 19/08/2022.
1+ £2.20
10+ £2.00
50+ £1.89
100+ £1.67
NEUTRIK SC81 NEUTRICON Cable plug (alternative keying) Stock code: 40-814
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
1+ £6.62
10+ £6.02
50+ £5.69
100+ £5.03
NEUTRIK RP81 NEUTRICON Panel socket (alternative keying) Stock code: 40-834
2 in stock. Need more?
1+ £2.34
10+ £2.13
50+ £2.01
100+ £1.78
NEUTRIK FI8 NEUTRICON Female insert Stock code: 40-827
Temporarily out of stock, expected on: 19/08/2022.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK MI8 NEUTRICON Male insert Stock code: 40-828
Temporarily out of stock, expected on: 19/08/2022.
1+ £0.82
10+ £0.75
50+ £0.71
100+ £0.62
NEUTRIK BS1 NEUTRICON Female solder pin Stock code: 40-841
463 in stock. Need more?
1+ £0.60
10+ £0.55
50+ £0.52
100+ £0.46
NEUTRIK BP1 NEUTRICON Female PCB pin Stock code: 40-843
Temporarily out of stock, expected on: 19/08/2022.
1+ £0.60
10+ £0.55
50+ £0.52
100+ £0.46
NEUTRIK PS1 NEUTRICON Male solder pin Stock code: 40-844
128 in stock. Need more?
1+ £0.26
10+ £0.24
50+ £0.22
100+ £0.20
NEUTRIK PP1 NEUTRICON Male PCB pin Stock code: 40-846
Temporarily out of stock, expected on: 07/10/2022.
1+ £0.26
10+ £0.24
50+ £0.22
100+ £0.20
