Neutrik

40-843

NEUTRIK BP1 NEUTRICON Female PCB pin

Neutrik BP1

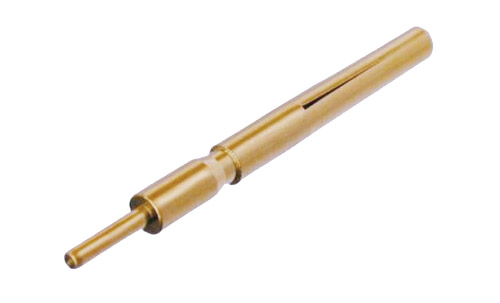

NEUTRIK BP1 NEUTRICON Female PCB pin

Image may be provided for illustrative purposes only, please refer to the product description.

NEUTRIK NEUTRICON CIRCULAR PLUG CONNECTOR SYSTEM

This is a complete plug connection system, allowing simplified production of cable and chassis connectors with up to 8 contacts, using only 8 components. The system consists of 3 types of metal housings, 2 contact carriers (which fit in all of the 3 housings), and a cable strain relief to the established Neutrik design. The housings are high tolerance zinc-aluminium die castings, Cu-plated, Ni-plated and black hard-matt Cr-plated. The design protects the contacts from misalignment damage during operational use. The vibration-proof locking mechanism automatically locks on insertion, and can be easily parted by simply pulling on the outer housing of the cable plug. Standard shells (SC8, RP8 MC8) have a small keyway at 0° and a large keyway at 180°. An alternative arrangement is available on two shells (SC81, RP81) with a small keyway at 0° and a large keyway at 90°.

The contact arrangement is a conventional 8 pin/socket contact system. Moulded male inserts accept solder, crimp (to MIL C 22520 F) or PCB mount pin contacts, and female inserts accept similar style socket contacts. Female and male inserts can be fitted interchangeably in any of the metal housings.

The cable strain-relief clamp is to the standard Neutrik design, well established on the X series XLR connectors, whereby the clamp also serves to retain the plug insert. The cable screen can be connected coaxially with the housing by way of a separate contact component.

The SC8W is a special version of the cable housing which, when used with the SR8W gland, provides a connector that, when mated, is dust and waterproof to IP54.

Ordering note:

Cable plugs and panel sockets, with solder contacts, are available as fully assembled connectors. For other combinations, order component parts separately as required.

  Description Price (£) Add to basket
NEUTRIK OSC8F NEUTRICON Cable plug, black, with insert and NEUTRICON Female solder contacts Black Stock code:
90 in stock.
1+ £12.72
10+ £11.58
50+ £10.94
100+ £9.67
NEUTRIK OSC8F-NI NEUTRICON Cable plug, nickel, with insert and NEUTRICON Female solder contacts Nickel Stock code:
Ordered on demand.
1+ £12.72
10+ £11.58
50+ £10.94
100+ £9.67
NEUTRIK OSC8M NEUTRICON Cable plug, black, with insert and NEUTRICON Male solder contacts Black Stock code:
93 in stock.
1+ £10.14
10+ £9.23
50+ £8.72
100+ £7.71
NEUTRIK OSC8M-NI NEUTRICON Cable plug, nickel, with insert and NEUTRICON Male solder contacts Nickel Stock code:
18 in stock.
1+ £10.14
10+ £9.23
50+ £8.72
100+ £7.71
NEUTRIK ORP8F NEUTRICON Panel socket, black, with insert and NEUTRICON Female solder contacts Black Stock code:
Ordered on demand.
1+ £7.16
10+ £6.52
50+ £6.16
100+ £5.44
NEUTRIK ORP8F-NI NEUTRICON Panel socket, nickel, with insert and NEUTRICON Female solder contacts Nickel Stock code:
14 in stock.
1+ £7.16
10+ £6.52
50+ £6.16
100+ £5.44
NEUTRIK ORP8M NEUTRICON Panel socket, black, with insert and NEUTRICON Male solder contacts Black Stock code:
95 in stock.
1+ £4.58
10+ £4.17
50+ £3.94
100+ £3.48
NEUTRIK ORP8M-NI NEUTRICON Panel socket, nickel, with insert and NEUTRICON Male solder contacts Nickel Stock code:
Ordered on demand.
1+ £4.58
10+ £4.17
50+ £3.94
100+ £3.48
NEUTRIK SC8 NEUTRICON Cable plug   Stock code:
55 in stock.
1+ £5.90
10+ £5.37
50+ £5.07
100+ £4.48
NEUTRIK SC8W NEUTRICON Cable plug   Stock code:
Ordered on demand.
1+ £9.78
10+ £8.90
50+ £8.41
100+ £7.43
NEUTRIK MC8 NEUTRICON Cable socket   Stock code:
88 in stock.
1+ £1.72
10+ £1.57
50+ £1.48
100+ £1.31
NEUTRIK SR8 NEUTRICON Cable gland   Stock code:
76 in stock.
1+ £0.52
10+ £0.47
50+ £0.45
100+ £0.40
NEUTRIK SR8W NEUTRICON Cable gland   Stock code:
19 in stock.
1+ £1.08
10+ £0.98
50+ £0.93
100+ £0.82
NEUTRIK RP8 NEUTRICON Panel socket   Stock code:
59 in stock.
£1.76
Clearance £0.50
NEUTRIK SC81 NEUTRICON Cable plug (alternative keying)   Stock code:
6 in stock.
£5.90
Clearance £3.50
NEUTRIK RP81 NEUTRICON Panel socket (alternative keying)   Stock code:
Ordered on demand.
1+ £1.76
10+ £1.60
50+ £1.51
100+ £1.34
NEUTRIK FI8 NEUTRICON Female insert   Stock code:
455 in stock.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK MI8 NEUTRICON Male insert   Stock code:
316 in stock.
1+ £0.74
10+ £0.67
50+ £0.64
100+ £0.56
NEUTRIK BS1 NEUTRICON Female solder pin   Stock code:
799 in stock.
1+ £0.54
10+ £0.49
50+ £0.46
100+ £0.41
NEUTRIK NEUTRICON BC1 Female crimp pin   Stock code:
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK BP1 NEUTRICON Female PCB pin   Stock code: 40-843
93 in stock.
£0.54
Clearance £0.25
NEUTRIK PS1 NEUTRICON Male solder pin   Stock code:
352 in stock.
1+ £0.24
10+ £0.22
50+ £0.21
100+ £0.18
NEUTRIK NEUTRICON PC1 Male crimp pin   Stock code:
No longer manufactured. Please contact Technical Support for advice on alternatives.
NEUTRIK PP1 NEUTRICON Male PCB pin   Stock code:
Ordered on demand.
1+ £0.24
10+ £0.22
50+ £0.21
100+ £0.18
