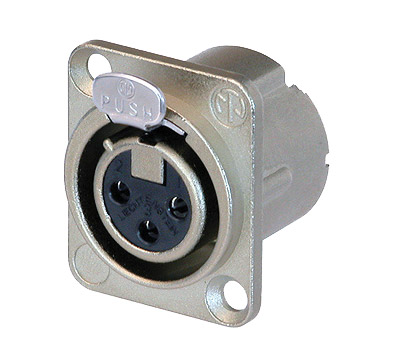

A version of the D-LX series with crimp contacts instead of the usual solder types. The crimp termination is with the standard 'B-crimp' tool (IEC standard IEC 60352-2). The contacts are fitted onto the cable, and then inserted into the connector housing. They can be removed if necessary by rotating them through 90 degrees. Spare crimp contacts are available in packs of 50.
Whilst standard crimp tools can be used, Neutrik type HX-R-BNC together with die set DIE-R-HA-1 are suitable.
SCDR - Rear Cover
This soft plastic cover fits the rear end of several D-size chassis connectors. It is used to protect the gap between connector and cable. The protection cover works with all common wires, cables and fibres, simply cut off the cover end to the required diameter.
Type codes with no suffix denote nickel plated shell, with silver-plated contacts (standard type). Type codes with BAG suffix denote black shell, with silver-plated contacts.
