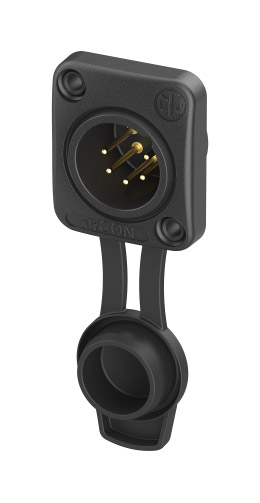

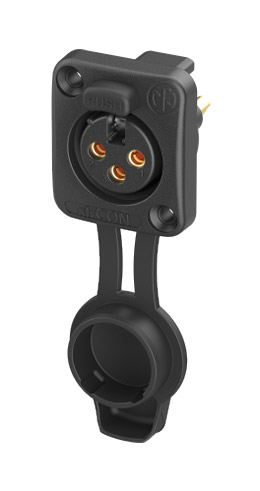

NEUTRIK XLR PANEL CONNECTORS - True outdoor protection series

The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are IP65 and UL50E rated.

The TOP series is a heavy-duty, locking, XLR connector for outdoor applications. The connector is sealed when mated with a related cable connector from the TOP series. It is available in 3 and 5 pin configurations, with gold-plated contacts.

These universal housing connectors, common to most Neutrik connector ranges, allows simpler metalworking and more flexibility of use. The Polyamide shell, with 24mm cutout diameter, can be mounted from the front. M3 stainless-steel, countersunk screws are recommended. Each mounting hole has an o-ring seal, which should be lubricated with silicone prior to use. Female connectors have a stainless-steel latch. To the rear of the connector, there are solder-bucket contacts, and a TPE gasket for sealing. An optional rubber plug is available to protect against ingress of dust and dirt when not in use.

  Description Price (£) Add to basket
Show carriage
NEUTRIK NC3FDX-TOP XLR Female panel, true outdoor protection   Stock code: 41-571
Please login for stock availability and lead times.
1+ £6.12
10+ £5.57
50+ £5.26
100+ £4.65
NEUTRIK NC3MDX-TOP XLR Male panel, true outdoor protection   Stock code: 41-572
Please login for stock availability and lead times.
1+ £5.16
10+ £4.70
50+ £4.44
100+ £3.92
NEUTRIK NC5FDX-TOP XLR Female panel, true outdoor protection   Stock code: 41-575
Please login for stock availability and lead times.
1+ £6.84
10+ £6.22
50+ £5.88
100+ £5.20
NEUTRIK NC5MDX-TOP XLR Male panel, true outdoor protection   Stock code: 41-576
Please login for stock availability and lead times.
1+ £5.70
10+ £5.19
50+ £4.90
100+ £4.33
NEUTRIK SCFDX-TOP SEALING COVER For XLR true outdoor protection female connectors   Stock code: 40-753
This product is temporarily unavailable. Please contact Canford Sales if you would like to order.
1+ £0.40
10+ £0.36
50+ £0.34
100+ £0.30
NEUTRIK SCMDX-TOP SEALING COVER For XLR true outdoor protection male connectors   Stock code: 40-754
This product is temporarily unavailable. Please contact Canford Sales if you would like to order.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
