Neutrik

41-374

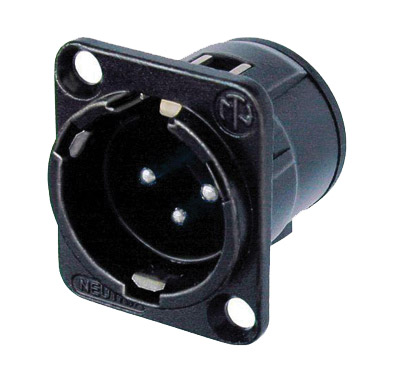

NEUTRIK NC3MD-V-BAG XLR Male PC mounting vertical

Neutrik NC3MD-V-BAG

NEUTRIK NC3MD-V-BAG XLR Male PC mounting vertical

Image may be provided for illustrative purposes only, please refer to the product description.

NEUTRIK XLR PANEL CONNECTORS - D series

FD-H and MD-H

Universal metal-bodied housing series, for PCB mount applications. Designed for use where connector is mounted such that connector enters horizontally and PCB is horizontal, ie angled pins. Panel cutout 24mm, connector can be mounted front or rear of panel. The insert on 3 pin types is removable from rear of connector, and is locked into one place once inserted - thus permitting assembly and testing of PCB before assembly into housing. The lock is a 30° turn internal latch operated by a small tip screwdriver - part 40-998 is a special tool with hardened tip for this purpose. Note that connectors are usually supplied with the locks unfastened for manufacturing user convenience. Most versions are available in 3 pin configuration only, certain models also available in 4 or 5 pin, as indicated in price lines below. Metal body offers RF protection. Standard connectors have countersunk clearance mounting holes to accept M3 bolts. The special 'M3' version of the connector has an M3 tapped thread, for speed of mounting. This obviously means that they can only be used rear-of-panel mounted.

FD-V and MD-V

As FD-H and MD-H, but for use with PCB mounted vertically, ie straight pins. Available in 3 pin configuration only.

B suffix = black shell, gold plated contacts, BAG = black shell with silver plated contacts.

  Description Price (£) Add to basket
NEUTRIK NC3FD-H XLR Female PC mounting horizontal   Stock code:
97 in stock.
1+ £4.20
10+ £3.82
50+ £3.61
100+ £3.19
NEUTRIK NC3FDM3-H XLR Female PC mounting horizontal   Stock code:
78 in stock.
1+ £4.58
10+ £4.17
50+ £3.94
100+ £3.48
NEUTRIK NC3MD-H XLR Male PC mounting horizontal   Stock code:
40 in stock.
1+ £3.82
10+ £3.48
50+ £3.29
100+ £2.90
NEUTRIK NC3MDM3-H XLR Male PC mounting horizontal   Stock code:
106 in stock.
1+ £3.96
10+ £3.60
50+ £3.41
100+ £3.01
NEUTRIK NC3FD-V XLR Female PC mounting vertical   Stock code:
137 in stock.
1+ £4.42
10+ £4.02
50+ £3.80
100+ £3.36
NEUTRIK NC3FDM3-V XLR Female PC mounting vertical   Stock code:
44 in stock.
1+ £4.60
10+ £4.19
50+ £3.96
100+ £3.50
NEUTRIK NC3MD-V XLR Male PC mounting vertical   Stock code:
297 in stock.
1+ £3.84
10+ £3.49
50+ £3.30
100+ £2.92
NEUTRIK NC3MDM3-V XLR Male PC mounting vertical   Stock code:
Ordered on demand.
1+ £3.90
10+ £3.55
50+ £3.35
100+ £2.96
NEUTRIK NC4FDM3-H XLR Female PC mounting horizontal   Stock code:
13 in stock.
1+ £9.82
10+ £8.94
50+ £8.45
100+ £7.46
NEUTRIK NC4MDM3-H XLR Male PC mounting horizontal   Stock code:
Ordered on demand.
1+ £8.08
10+ £7.35
50+ £6.95
100+ £6.14
NEUTRIK NC5FDM3-H XLR Female PC mounting horizontal   Stock code:
10 in stock.
1+ £11.74
10+ £10.68
50+ £10.10
100+ £8.92
NEUTRIK NC5MDM3-H XLR Male PC mounting horizontal   Stock code:
5 in stock.
1+ £8.78
10+ £7.99
50+ £7.55
100+ £6.67
NEUTRIK NC6FDM3-H XLR Female PC mounting horizontal   Stock code:
Ordered on demand.
1+ £13.36
10+ £12.16
50+ £11.49
100+ £10.15
NEUTRIK NC6MDM3-H XLR Male PC mounting horizontal   Stock code:
Ordered on demand.
1+ £11.40
10+ £10.37
50+ £9.80
100+ £8.66
NEUTRIK NC3FD-H-BAG XLR Female PC mounting horizontal   Stock code:
10 in stock.
£4.70
Clearance £2.25
NEUTRIK NC3MDH-BAG XLR Male PC mounting horizontal   Stock code:
Ordered on demand.
1+ £4.32
10+ £3.93
50+ £3.72
100+ £3.28
NEUTRIK NC3FD-V-BAG XLR Female PC mounting vertical   Stock code:
1 in stock.
1+ £4.92
10+ £4.48
50+ £4.23
100+ £3.74
NEUTRIK NC3MD-V-BAG XLR Male PC mounting vertical   Stock code: 41-374
67 in stock.
£4.24
Clearance £3.00
NEUTRIK NC3FD-H-B XLR Female PC mounting horizontal   Stock code:
Ordered on demand.
1+ £5.32
10+ £4.84
50+ £4.58
100+ £4.04
NEUTRIK NC3FDM3-H-B XLR Female PC mounting horizontal   Stock code:
Ordered on demand.
1+ £5.94
10+ £5.41
50+ £5.11
100+ £4.51
NEUTRIK NC3MD-H-B XLR Male PC mounting horizontal   Stock code:
88 in stock.
1+ £4.78
10+ £4.35
50+ £4.11
100+ £3.63
NEUTRIK NC3MDM3-H-B XLR Male PC mounting horizontal   Stock code:
Ordered on demand.
1+ £5.42
10+ £4.93
50+ £4.66
100+ £4.12
NEUTRIK NC3FD-V-B XLR Female PC mounting vertical   Stock code:
2 in stock.
1+ £5.58
10+ £5.08
50+ £4.80
100+ £4.24
NEUTRIK NC3FDM3-V-B XLR Female PC mounting horizontal   Stock code:
Ordered on demand.
1+ £6.10
10+ £5.55
50+ £5.25
100+ £4.64
NEUTRIK NC3MD-V-B XLR Male PC mounting vertical   Stock code:
Ordered on demand.
1+ £4.72
10+ £4.30
50+ £4.06
100+ £3.59
NEUTRIK NC3MDM3-V-B XLR Male PC mounting horizontal   Stock code:
Ordered on demand.
1+ £5.10
10+ £4.64
50+ £4.39
100+ £3.88
