NEUTRIK NC3FAAH-0 XLR Female PC mounting horizontal

Stock code
41-802
Brand
Neutrik
Model number
  • NC3FAAH-0

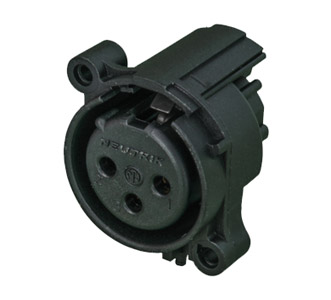

NEUTRIK NC3FAAH-0 XLR Female PC mounting horizontal
NEUTRIK NC3FAAH-0 XLR Female PC mounting horizontal

NEUTRIK XLR PANEL CONNECTORS - AA series

These are a lower cost version of the Neutrik A series plastic-bodied XLR panel connectors from Neutrik. They have the smallest size and highest packing-density (23mm between centres). The AA series offers low-cost, basic, plastic-shell connectors. Female and male connectors have the same panel cutout and mountings and all connectors have 'tulip' profile, hard gold-plated contacts, for the highest durability.

Panel fastening of these connectors is by self-tapping screws, type PT, with thread 2.9 x 1.06 (DIN7990), stock codes 40-927 (pan head) and 40-932 (countersunk).

Two orientations of the PCB pins are available in this series.

H = Horizontal PCB, i.e. angled pins
V = Vertical PCB, i.e. straight pins

Further options exist for the female connectors, denoted by suffix numbers and letters:

[no suffix]No panel or shell ground contact
1Pin 1 directly connected to panel and shell ground
2Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0No latch, fitted instead with retention spring

Further options exist for the male connector, denoted by suffix numbers and letters:

[no suffix]Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0Pin 1 isolated from panel and shell ground, separate ground contact to shell
-1Pin 1 directly connected to panel and shell ground
