NEUTRIK NC3FAAV2-0 XLR Female PC mounting vertical

Stock code
41-812
Brand
Neutrik
Model number
  • NC3FAAV2-0

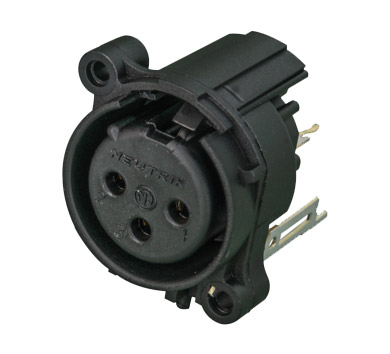

NEUTRIK NC3FAAV2-0 XLR Female PC mounting vertical

Image may be provided for illustrative purposes only, please refer to the product description.

NEUTRIK XLR PANEL CONNECTORS - AA series

These are a lower cost version of the Neutrik A series plastic-bodied XLR panel connectors from Neutrik. They have the smallest size and highest packing-density (23mm between centres). The AA series offers low-cost, basic, plastic-shell connectors. Female and male connectors have the same panel cutout and mountings and all connectors have 'tulip' profile, hard gold-plated contacts, for the highest durability.

Panel fastening of these connectors is by self-tapping screws, type PT, with thread 2.9 x 1.06 (DIN7990), stock codes 40-927 (pan head) and 40-932 (countersunk).

Two orientations of the PCB pins are available in this series.

H = Horizontal PCB, i.e. angled pins
V = Vertical PCB, i.e. straight pins

Further options exist for the female connectors, denoted by suffix numbers and letters:

[no suffix]No panel or shell ground contact
1Pin 1 directly connected to panel and shell ground
2Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0No latch, fitted instead with retention spring

Further options exist for the male connector, denoted by suffix numbers and letters:

[no suffix]Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0Pin 1 isolated from panel and shell ground, separate ground contact to shell
-1Pin 1 directly connected to panel and shell ground
  Description Price (£) Add to basket
Show carriage
NEUTRIK NC3FAAH XLR Female PC mounting horizontal   Stock code: 41-801
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3FAAH-0 XLR Female PC mounting horizontal   Stock code: 41-802
Please login for stock availability and lead times.
1+ £0.64
10+ £0.58
50+ £0.55
100+ £0.49
NEUTRIK NC3FAAH1 XLR Female PC mounting horizontal   Stock code: 41-803
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAH1-0 XLR Female PC mounting horizontal   Stock code: 41-804
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAH2 XLR Female PC mounting horizontal   Stock code: 41-805
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAH2-0 XLR Female PC mounting horizontal   Stock code: 41-806
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAV XLR Female PC mounting vertical   Stock code: 41-807
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3FAAV-0 XLR Female PC mounting vertical   Stock code: 41-808
Please login for stock availability and lead times.
1+ £0.64
10+ £0.58
50+ £0.55
100+ £0.49
NEUTRIK NC3FAAV1 XLR Female PC mounting vertical   Stock code: 41-809
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAV1-0 XLR Female PC mounting vertical   Stock code: 41-810
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAV2 XLR Female PC mounting vertical   Stock code: 41-811
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAV2-0 XLR Female PC mounting vertical   Stock code: 41-812
Please login for stock availability and lead times.
£0.72
Clearance £0.20
NEUTRIK NC3MAAH XLR Male PC mounting horizontal   Stock code: 41-813
Please login for stock availability and lead times.
1+ £0.74
10+ £0.67
50+ £0.64
100+ £0.56
NEUTRIK NC3MAAH-0 XLR Male PC mounting horizontal   Stock code: 41-814
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3MAAH-1 XLR Male PC mounting horizontal   Stock code: 41-815
Please login for stock availability and lead times.
1+ £0.74
10+ £0.67
50+ £0.64
100+ £0.56
NEUTRIK NC3MAAV XLR Male PC mounting vertical   Stock code: 41-816
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3MAAV-0 XLR Male PC mounting vertical   Stock code: 41-817
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3MAAV-1 XLR Male PC mounting vertical   Stock code: 41-818
Please login for stock availability and lead times.
1+ £0.62
10+ £0.56
50+ £0.53
100+ £0.47
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, pan, black (pack of 100) Black Stock code: 40-927
Please login for stock availability and lead times.
1+ £4.44
5+ £4.17
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, csk, black (pack of 100) Black Stock code: 40-932
Please login for stock availability and lead times.
1+ £4.52
5+ £4.25
per pack

Order Show delivery

£0.72 £0.20
Saving £0.52 each (ex. VAT)

53 available at clearance price

53 in stock. Need more?
The clearance price is only applicable to stock in our warehouse that we want to clear. If you order more than the indicated clearance stock they may be charged at full price.
RoHS Status Compliant
