A range of flat and angled audio termination panels supplied fully populated with Neutrik ‘D’ series XLR connectors. Nine combinations of 3-pin XLR male and latching female connectors are available as standard. All have nickel-plated shells and silver-plated contacts and are mounted from the rear of the panel.

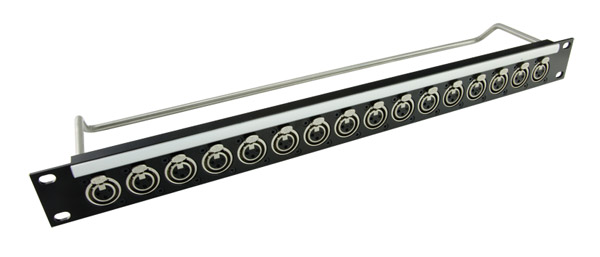

Manufactured from a rigid aluminium extrusion, available in 1U, 2U and 3U combinations, these panels are both lightweight and extremely rigid. Panels are fitted with a cranked lacing-bar for each row of connectors giving easy access to the rear of the connectors.
Manufactured from a unique profile aluminium-extrusion with integral rear bracing-bar. The front face of the panel is angled down by 7.5 degrees from vertical, relieving stress on mated cables and maintaining clear access at the rear. These 2U panels offer the highest possible packing density and are both lightweight and extremely rigid. Panels are fitted with a short, cranked, lacing-bar, extending only 65mm from the rear of the panel to allow for tight cable routing.
A snap-on cover designation-strip holder is fitted above each connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see Designation strips - snap on.
Available finished in Dawn Grey (BS4800-10A03) or Black.
Optional accessories: Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.
Custom connector populations and layouts, as well as engraving and screen printing are available to special order. For further information or a quotation please contact the custom metalwork team via email, firstname.lastname@example.org. Alternatively contact Sales. A minimum quantity or charge may apply.
Manufactured by Canford.
