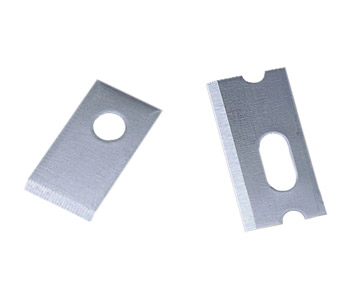

SPEEDYRJ45 TBSPDY2 Replacement blades for TRCSPDY2 crimp tool

Stock code
55-973
Brand
SpeedyRJ45
Model number
  • TBSPDY2
SPEEDYRJ45 TBSPDY2 Replacement blades for TRCSPDY2 crimp tool

Image may be provided for illustrative purposes only, please refer to the product description.

SPEEDYRJ45 TBSPDY2 Replacement blades for TRCSPDY2 crimp tool

SPEEDYRJ45 CONNECTORS AND TOOLS

The SPEEDYRJ45 range is designed to simplify twisted-pair terminations by allowing the wires to be inserted through the connectors and out of the front. This allows the technician to easily verify the proper wiring order before crimping the connector, reducing wastage and time. Versions are available for unscreened and screened Cat5E, Cat6, and Cat6A and are suitable for use with both solid and stranded wire.

Model Stock code Type Suitable for cable OD Max insulation dia AWG
PXSPDY5 46-781 Cat5e, UTP 5.0 - 6.0mm 1.0mm 24 - 26
PXSPDY5S 46-782 Cat5e, STP 4.50 - 5.50mm 1.0mm 24 - 26
PXSPDY6B 46-783 Cat6, UTP 5.0 - 6.5mm 0.98 +/- 0.04mm 22 - 26
PXSPDY6SB 46-784 Cat6, STP 5.0 - 6.5mm 0.98 +/- 0.04mm 22 - 26
PGSPDY2 46-785 Cat6a, STP Up to 7.2mm 1.1-1.2mm 23 - 24
PGSPDY3 46-788 Cat6a Up to 8.0mm 1.4mm

Assembly technique: Strip the cable sheath and untwist the pairs down to the sheath-point in the standard way for RJ45 connectors, then insert the wires through the connector (trimming them on a diagonal after getting the eight wires laid flat, ready for insertion). Having checked they are in the correct positions, twisting the loose ends all together helps push the connector body down tightly onto the cable, seating it tightly in the rear of the connector. The special crimp-tools (TRCSPDY4 or TRCSPDY2) crimps the connector contacts and trims the surplus wire in a single operation.

Note: It is recommended that the trimming blade on the crimp tools are renewed after every 500 terminations.
