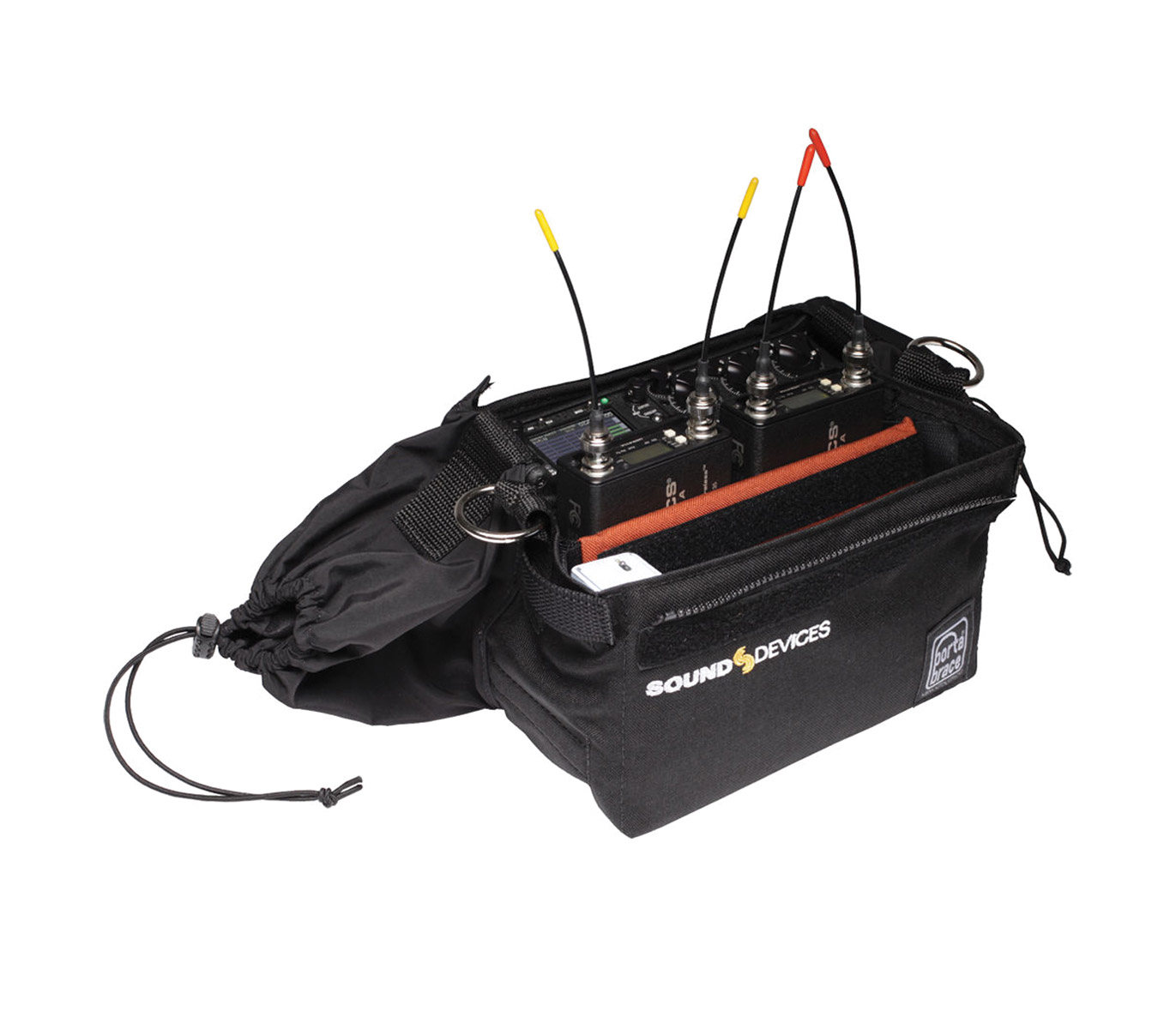

SOUND DEVICES CS-633 PRODUCTION CASE For 633 mixer

XL-AES

Designed with compatibility with the 888 and 833 mixer/recorders, the XL-AES provides 8-channels of AES3 audio via 4x TA3F input connections. Mounts directly to the expansion port located on the top panel of the recorder. Dimensions (HxWxD): 2.6 x 7.9 x 6.1cm. Weight: 122g

XL-1B

Cable terminating with TA3-F connectors for 302 mixer linking via TA3 inputs. 30.48cm in length.

XL-2

A pack of two cables, each terminated with balanced TA3-F and XLR-M connections. 63.5cm in length.

XL-2F

A pack of two cables, each terminated with balanced TA3-F and XLR-F connections. 63.5cm in length.

XL-3

Cable terminating with TA3-F and 3.5mm jack connections. 30.48cm in length.

XL-10

Cable with Hirose 10-pin connector to 2x balanced L/R XLR and single 3.5mm jack connectors. 6.096m in length.

XL-14

A headphone extension cable with male 3.5mm TRS jack and female TRS jack socket. 30.48cm in length.

XL-BNC

Cable with BNC connectors designed for the transportation of AES3id and word clock signals. 63.5cm in length.

XL-LB2

Cable with LEMO-5 to BNC input and BNC output designed for SMTPE timecode jamming of audio and video equipment. 78.74cm in length.

XL-LX

Cable with LEMO-5 to XLR-M and XLR-F. Designed for SMTPE timecode jamming of audio and video equipment. 63.5cm from LEMO-5 to XLR-M, 35.56cm to XLR-F.

XL-RJ

A modular cable designed for linking units via C-Link connectors. 15.24cm in length.

XL-LL

A coiled cable terminating in LEMO-5 connectors. Designed for interconnection of timecode. Length is 60.96cm when coiled, 139.7cm when fully extended.

XL-4

A pack of four TA3-F connectors.

XL-DC

A bare switchcraft power connector for use with MM-1 and HX-3.

XL-H

A single bare Hirose HR10-7P-4P connector designed for use with the DC input of 442, 302, MixPre, and 7-series mixer/recorders.

MX-4AA

Spare battery sled for MixPre-3, MixPre-3M, MixPre-6, and MixPre6M recorders. Holds 4x AA batteries. Sound Devices recommend using rechargeable NiMH batteries.

MX-8AA

Spare battery sled for MixPre-3, MixPre-3M, MixPre-6, MixPre6M, MixPre-10, and MixPre10M recorders. Holds 8x AA batteries. Sound Devices recommend using rechargeable NiMH batteries.

MX-LMount

An optional L-Mount battery sled for MixPre-10M, MixPre-10T, MixPre-6, MixPre-6M, MixPre-3, and MixPre-3m recorders. The sled holds two hot-swappable lithium-ion batteries.

MX-PSU

An AC power supply with USB-C connector. Includes adapter plugs for UK, US, Australia, and Europe. Formally identified as MX-Charge, this power supply is compatible with all MixPre models with the exception of the MixPre-10 II.
Note: This power supply doesn’t recharge batteries of unit.

MX-USBY

Single USB-C to dual USB-A Y-cable for powering mixers/recorders including MixPre-3, MixPre-3M, MixPre-6, and MixPre-6M. 180cm in length.

XL-B2

An L-mount, 7.4V lithium-ion battery. 52000 mAh.

XL-NPH

An NP-type battery cup for 302, 552, 633, 664, 688, and 7-series mixers/recorders. Terminated with Hirose 4-pin locking DC connector. 30.48cm in length.

XL-WPH3

Universal, in-line AC-to-DC power supply detachable IEC power cord for Sound Devices MM-1 and HX-3. DC plug is by way of right-angled coaxial connector. 100–240, 50/60 Hz; output 12 VDC, 3.0A.

XL-SMARTCHARGER

A dual port charger for two XL-SMARTBATTERY batteries. A multi-coloured LED display helps identify the status of the inserted battery. Dimensions (HxWxL): 58 x 122 x 180mm. Weight: 360g.

XL-SMARTCUP

The SmartCup allows connection between XL-SMARTBATTERY and audio recorder via TA4 connection.

XL-SMARTBATTERY

A 14.4V, Lithium battery for use with the XL-SMARTCUP. 4.8 Ah, 98Wh. Dimensions (HxWxL): 23 x 79 x 153mm. Weight: 434g.

XL-1394

A bus powered power conditioner for 7-series recorders.

XL-LCD-PROTECT

A pack of four LCD screen protectors for 8-series mixer-recorders.

XL-LCD6

A pack of four LCD screen protectors for 633, 664, and 688.

XL-LCD

A pack of four Lexan LCD screen protectors for 702T and 788T.
