RYCOTE PENCIL MICROPHONES - Condenser

8 items

Rycote are renowned for designing and manufacturing quality windshields and microphone accessories. Using their knowledge of audio, Rycote have created this range of ‘high-quality’ pencil microphones for use in studio or on location.


BD-10 - Bi-Directional

Rycote BD-10 is a Bi-directional (Figure of 8) condenser microphone primarily designed for M/S stereo and ambient recording as well as dual dialogue. Many people will find the BD-10 a great microphone to use in conjunction with SC-08, CA-08 or HC-15 for a complete Rycote M/S Stereo or DM/S stereo solution.

Available kits
MIC MS KIT SC-08, BD-10, Cyclone MS Kit 5, and Cyclone Small Windjammer

Frequency response: 40Hz - 18kHz. Self noise: 18.0dB-A, +/-2dB. Capsule type: Back electret condenser. Output sensitivity: 14.2mV.Pa, -32.7dB. Maximum output voltage: 4Vp. Output impedance: 100ohms. Minimum load impedance: 1kohm. Signal to noise ration: 78dB typical, at 1kHz/Pa A-weighted. CMMR: Greater than 60dB, at 1kHz. Powering: +48V phantom power. Powering valid range: 48-24V, maximum SPL reduced at 24V. Current consumption: 3.0mA. Maximum SPL: 135dB SPL, 1kHz, 1.0% THD typical; 129dB SPL, 1kHz, 0.5% THD typical. Dimensions (LxDiam): 105 x 19mm. Weight: 86g.

Included accessories: Wooden case, microphone clip, 5cm foam shield.
Optional accessories: 104406 5cm SGM Foam, 033012 5cm Classic Softie, 5cm Short Fur Softie, 033205 5cm Super Softie, NS1-BA Nano Shield Kit, 089103 Cyclone Windshield small, WS 10 KIT Modular Windshield, 039701 Baseball 19/20mm.


CA-08 - Cardioid

A Rycote pencil condenser microphone with cardioid pickup and 'virtually flat' frequency response from 70Hz to 20kHz with a full frequency response of 45Hz to 20kHz. The microphone has been designed for both studio use and field recording and incorporates active in-line filtering against RF induced noise. The body of the microphone is manufactured from non-corrosive, machined brass whilst the capsule is manufactured from lightweight machined aluminium, giving a total weight of 69g. A gold-plated, Neutrik XLR connector allows for optimum connection and signal throughput.

Available kits
CA-08 SP Stereo pair, matched to within 0.5dB

Frequency response: 45Hz - 20kHz. Self noise: 13.0dB-A, +/-2dB. Capsule type: Back electret condenser. Output sensitivity: 24.3mV.Pa, 26.9dB. Maximum output voltage: 4Vp. Output impedance: 100ohms. Minimum load impedance: 1kohm. Signal to noise ration: 80dB typical, at 1kHz/Pa A-weighted. CMMR: Greater than 60dB, at 1kHz. Powering: +48V phantom power. Powering valid range: 48-24V, maximum SPL reduced at 24V. Current consumption: 3.0mA. Maximum SPL: 133dB SPL, 1kHz, 1.0% THD typical; 127dB SPL, 1kHz, 0.5% THD typical. Dimensions (LxDiam): 105 x 19mm. Weight: 69g.

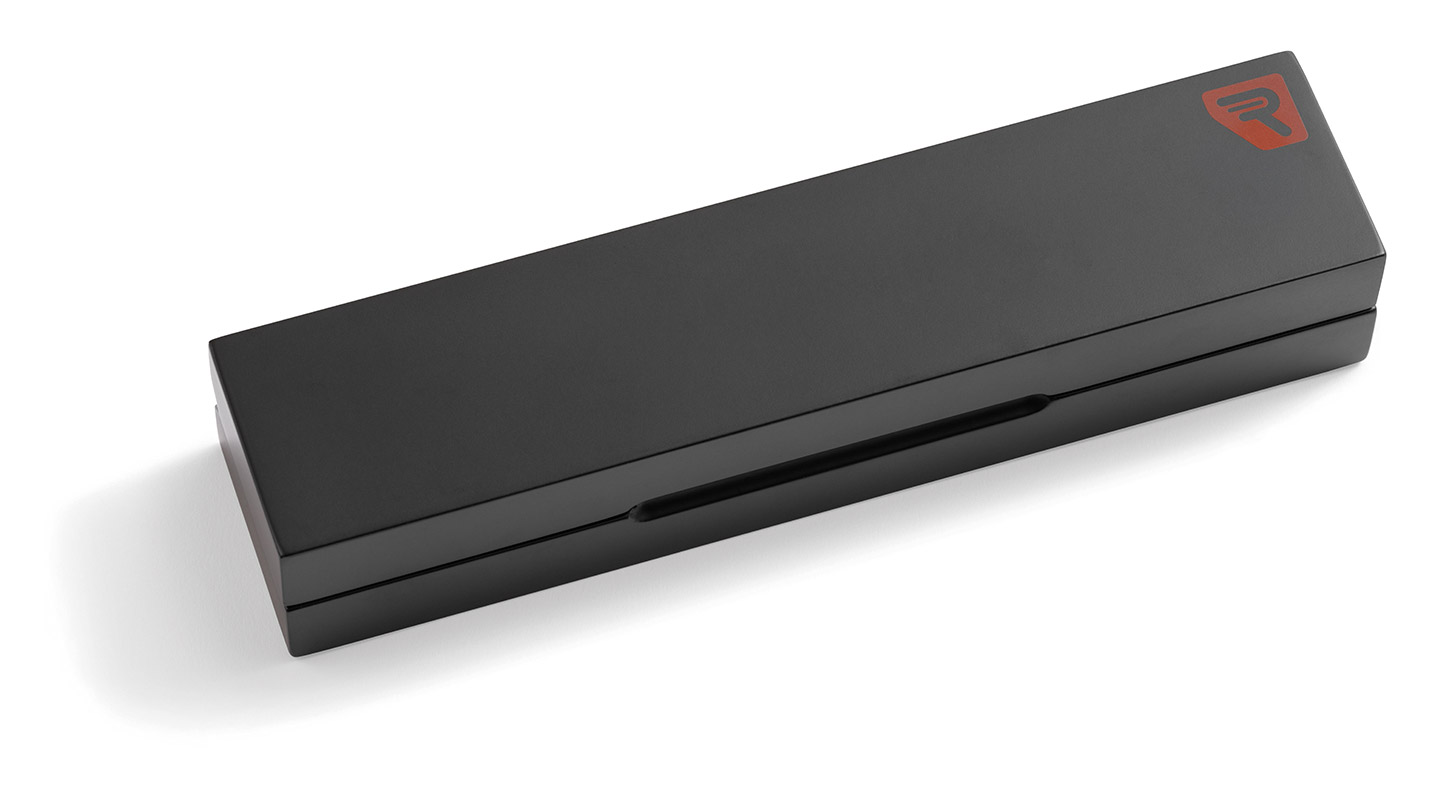

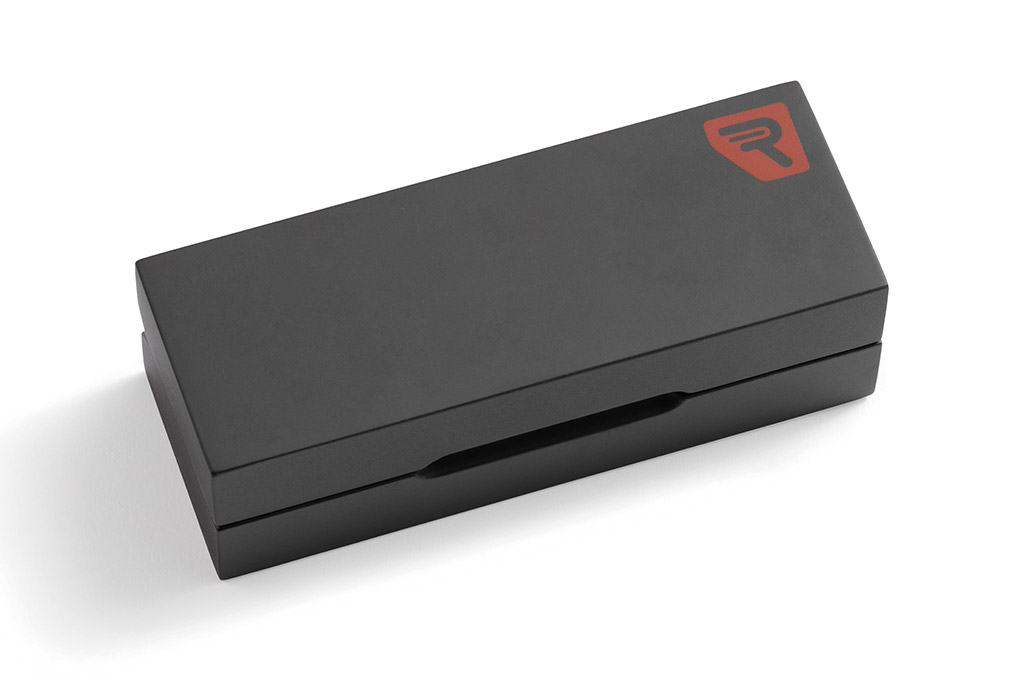

Included accessories: Wooden case, microphone clip, 5cm foam shield.
Optional accessories: 104406 5cm SGM Foam, 033012 5cm Classic Softie, 5cm Short Fur Softie, 033205 5cm Super Softie, NS1-BA Nano Shield Kit, 089103 Cyclone Windshield small, WS 10 KIT Modular Windshield, 039701 Baseball 19/20mm.


SC-08 - Supercardioid

A Rycote pencil condenser microphone with supercardioid pickup and 'virtually flat' frequency response from 70Hz to 20kHz with a full frequency response of 60Hz to 20kHz. The microphone has been designed for both studio use and field recording and incorporates active in-line filtering against RF induced noise. The body of the microphone is manufactured from non-corrosive, machined brass whilst the capsule is manufactured from lightweight machined aluminium, giving a total weight of 69g. A gold-plated, Neutrik XLR connector allows for optimum connection and signal throughput.

Available kits
SC-08 SP Stereo pair, matched to within 0.5dB
MIC MS KIT SC-08, BD-10, Cyclone MS Kit 5, and Cyclone Small Windjammer

Frequency response: 60Hz - 20kHz. Self noise: 12.0dB-A, +/-2dB. Capsule type: Back electret condenser. Output sensitivity: 29.7mV.Pa, 26.9dB. Maximum output voltage: 4Vp. Output impedance: 100ohms. Minimum load impedance: 1kohm. Signal to noise ration: 81dB typical, at 1kHz/Pa A-weighted. CMMR: Greater than 60dB, at 1kHz. Powering: +48V phantom power. Powering valid range: 48-24V, maximum SPL reduced at 24V. Current consumption: 3.0mA. Maximum SPL: 133dB SPL, 1kHz, 1.0% THD typical; 127dB SPL, 1kHz, 0.5% THD typical. Dimensions (LxDiam): 105 x 19mm. Weight: 69g.

Included accessories: Wooden case, microphone clip, 5cm foam shield.
Optional accessories: 104406 5cm SGM Foam, 033012 5cm Classic Softie, 5cm Short Fur Softie, 033205 5cm Super Softie, NS1-BA Nano Shield Kit, 089103 Cyclone Windshield small, WS 10 KIT Modular Windshield, 039701 Baseball 19/20mm.


OM-08 - Omnidirectional

A Rycote pencil condenser microphone with omnidirectional pickup and 'virtually no drop-off' at 20kHz, with a full frequency response of 10Hz to 20kHz. The microphone has been designed for both studio use and field recording and incorporates active in-line filtering against RF induced noise. The body of the microphone is manufactured from non-corrosive, machined brass whilst the capsule is manufactured from lightweight machined aluminium, giving a total weight of 69g. A gold-plated, Neutrik XLR connector allows for optimum connection and signal throughput.

Available kits
OM-08 SP Stereo pair, matched to within 0.5dB

Frequency response: 10Hz - 20kHz. Self noise: 11.0dB-A, +/-2dB. Capsule type: Back electret condenser. Output sensitivity: 23.0mV.Pa, 26.9dB. Maximum output voltage: 4Vp. Output impedance: 100ohms. Minimum load impedance: 1kohm. Signal to noise ration: 81dB typical, at 1kHz/Pa A-weighted. CMMR: Greater than 60dB, at 1kHz. Powering: +48V phantom power. Powering valid range: 48-24V, maximum SPL reduced at 24V. Current consumption: 3.0mA. Maximum SPL: 133dB SPL, 1kHz, 1.0% THD typical; 127dB SPL, 1kHz, 0.5% THD typical. Dimensions (LxDiam): 105 x 19mm. Weight: 69g.

Included accessories: Wooden case, microphone clip, 5cm foam shield.
Optional accessories: 104406 5cm SGM Foam, 033012 5cm Classic Softie, 5cm Short Fur Softie, 033205 5cm Super Softie, NS1-BA Nano Shield Kit, 089103 Cyclone Windshield small, WS 10 KIT Modular Windshield, 039701 Baseball 19/20mm.

  Description Price £
ex. VAT
Add to basket
Delivery

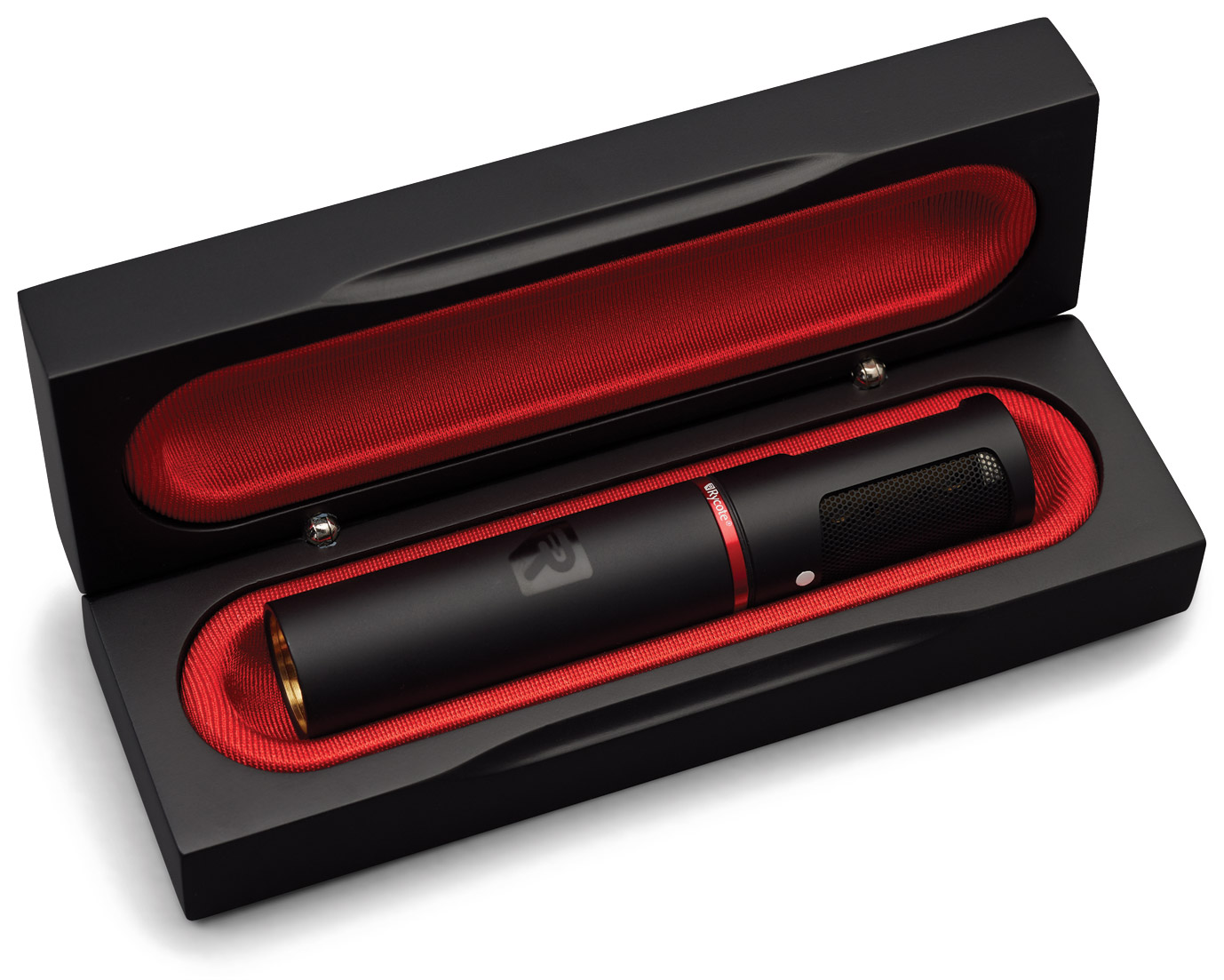

RYCOTE BD-10 MICROPHONE Pencil condenser, bidirectional Stock code: 92-644
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£532.00

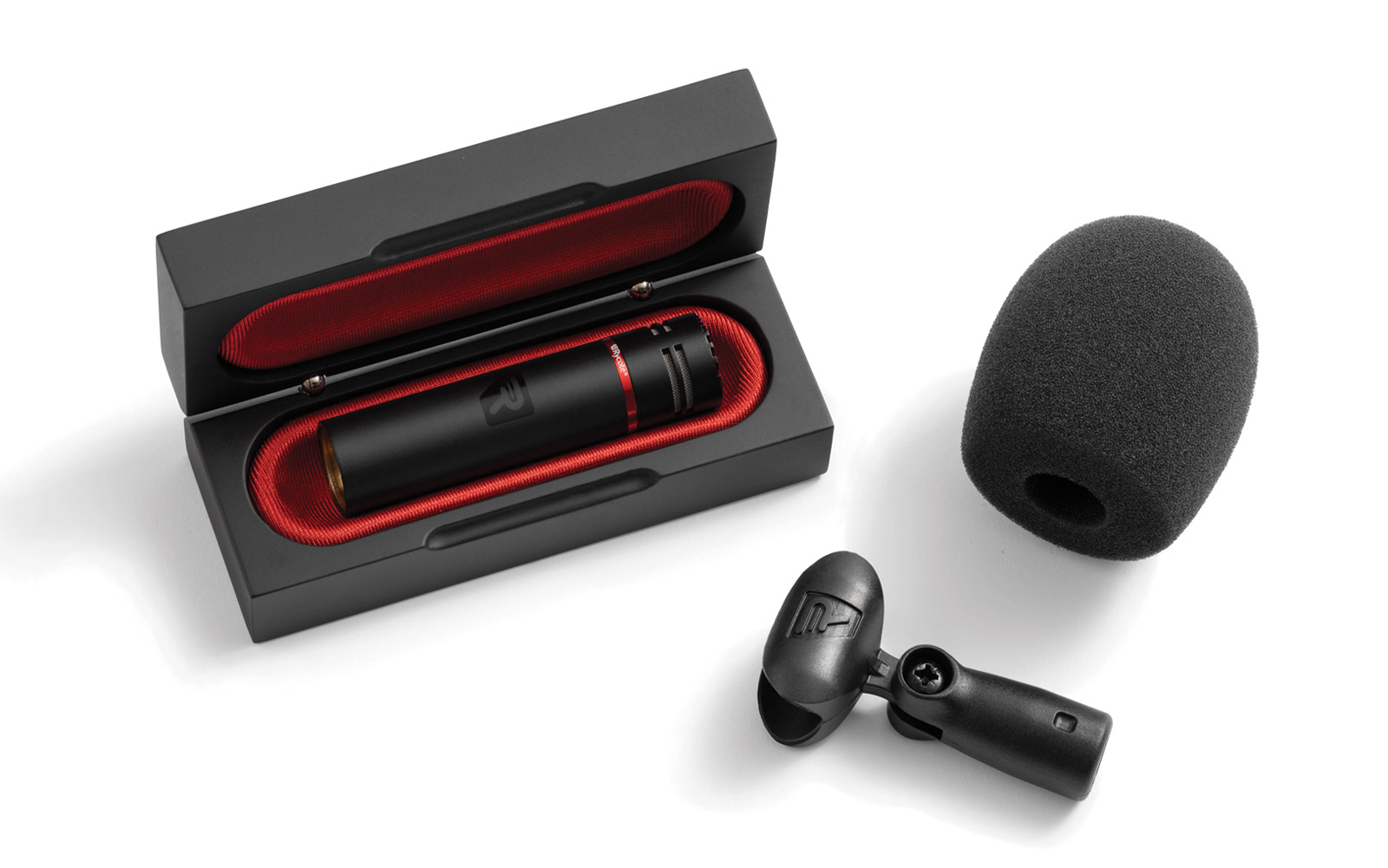

RYCOTE CA-08 MICROPHONE Pencil condenser, cardioid Stock code: 92-641
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£345.80
RYCOTE SC-08 MICROPHONE Pencil condenser, supercardioid Stock code: 92-642
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£345.80
RYCOTE OM-08 MICROPHONE Pencil condenser, omnidirectional Stock code: 92-643
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£345.80

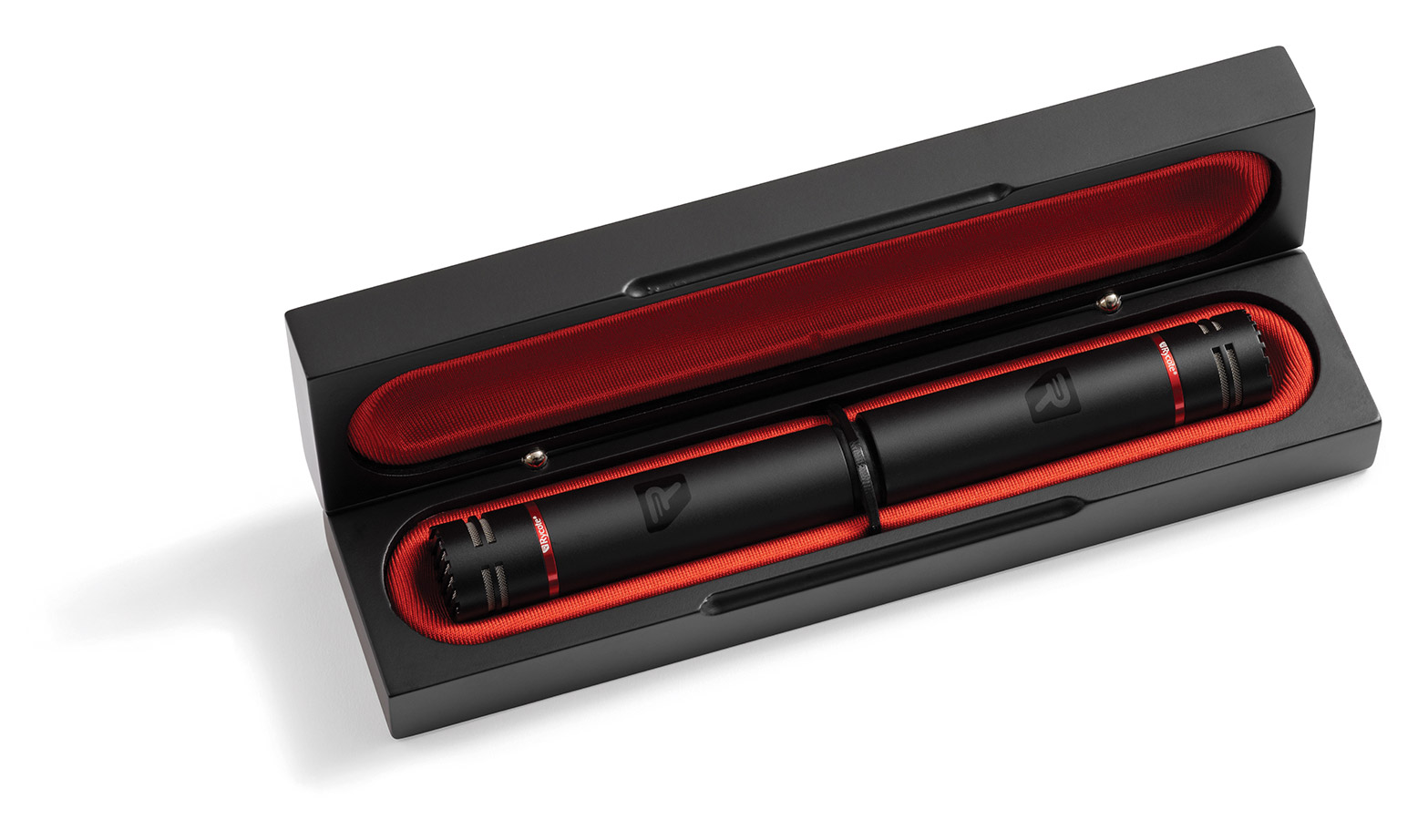

RYCOTE CA-08 SP MICROPHONE Pencil condenser, cardioid, matched pair Stock code: 92-645
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£620.00
RYCOTE SC-08 SP MICROPHONE Pencil condenser, supercardioid, matched pair Stock code: 92-646
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£620.00

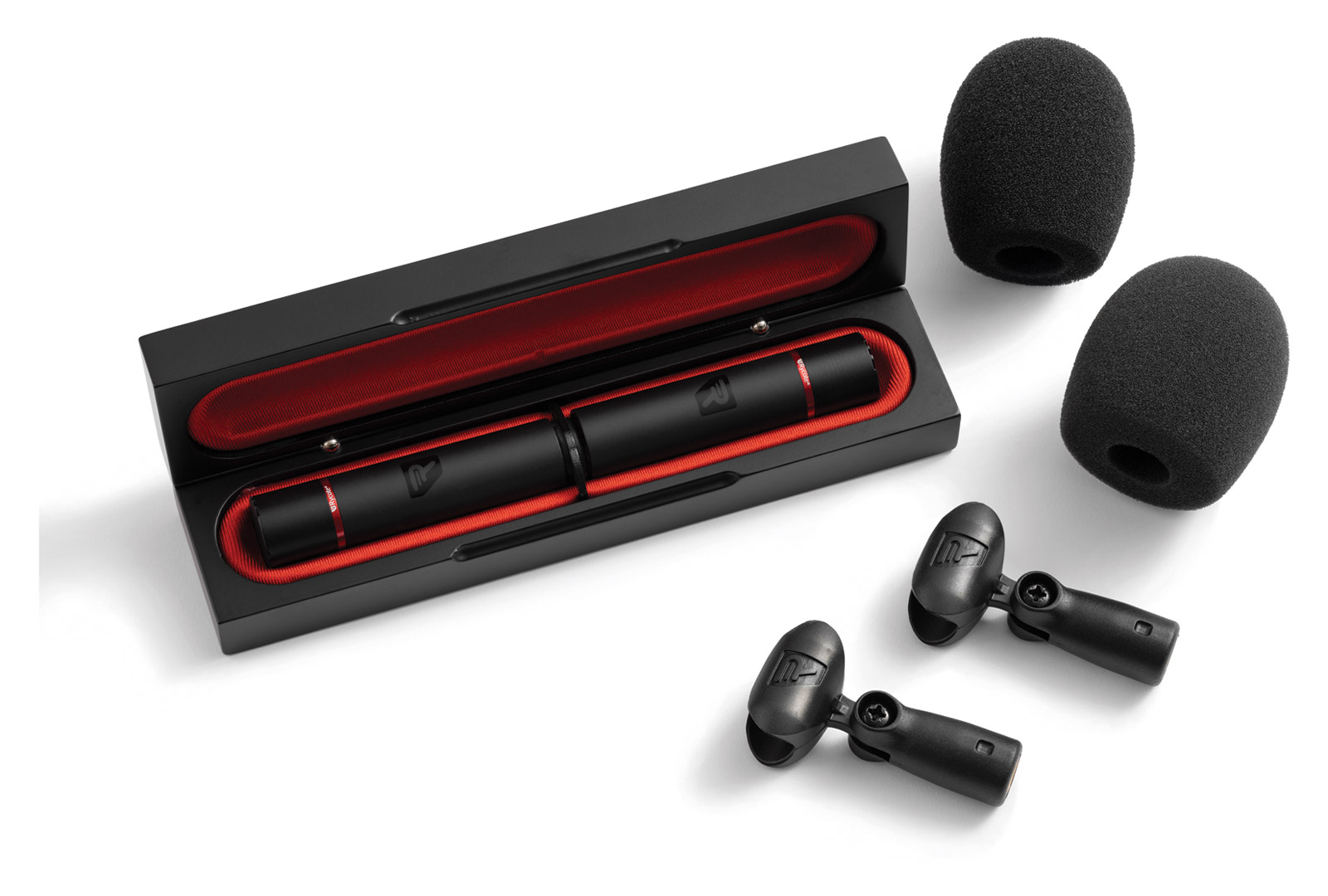

RYCOTE OM-08 SP MICROPHONE Pencil condenser, omnidirectional, matched pair Stock code: 92-647
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£620.00
RYCOTE MIC MS KIT With SC-08, BD-10, Cyclone MS Kit 5 and Windjammer Stock code: 92-649
Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
£1,250.00
