CANFORD CAT6A RJ45 FEEDTHROUGH PRO PATCH PANELS - Screened

6 items

A range of panels supplied fully populated with feed-through (also known as double-sided or back-to-back) screened RJ45 CAT6A sockets enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap-on cover and a lacing-bar are fitted as standard.

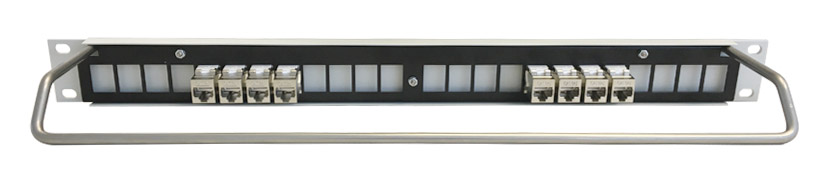

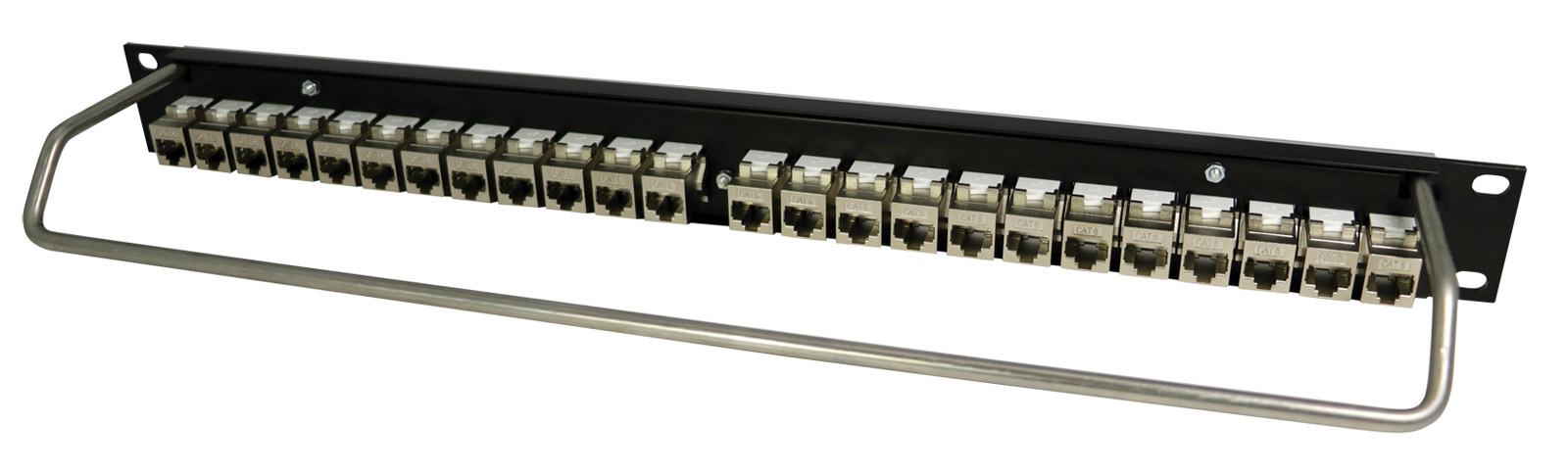

Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar, giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder with snap-on cover is fitted on the front panel to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Available finished in Dawn Grey (BS4800-10A03), Dark Grey or Black.

Optional accessories: see Canford Rackbracket - Recess mounting brackets.

Technical note:

The CAT6A (or CAT6 'Augmented') system utilises all four pairs of copper wires and supports 10GBASE-T (10Gb/s) Ethernet over distances up to 100m.

Maximum transmission distances:

CAT6 10/100/1000BASE-T: 100m (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment.
CAT6 10GBASE-T: 55m (45m + 10m patch) in favourable alien crosstalk environment, 37m (27m + 10m patch) in hostile alien crosstalk environments, i.e. where data cables are bundled together.
CAT6A 10GBASE-T: 100m (90m + 10m patch) in any alien crosstalk environment.
Description Price £
Add to basket
CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x8 FEEDTHROUGH, Screened, grey Grey Stock code: 45-3531
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ £76.08
5+ £73.04
CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, Screened, grey Grey Stock code: 45-3532
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ £111.60
5+ £107.10

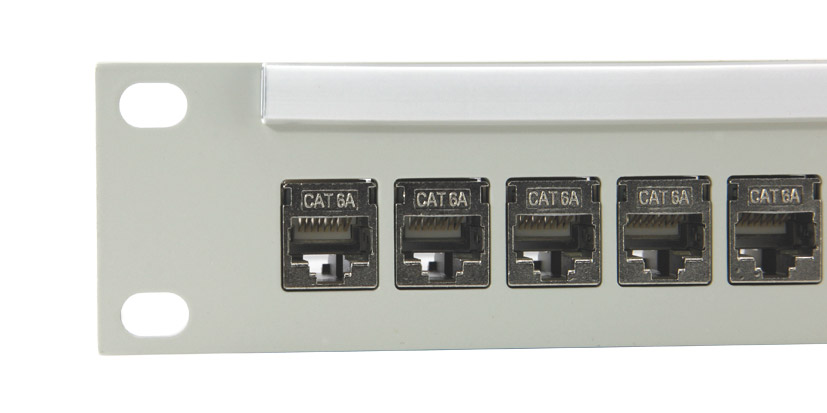

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x24 FEEDTHROUGH, Screened, grey Grey Stock code: 45-3533
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ £145.80
5+ £140.00

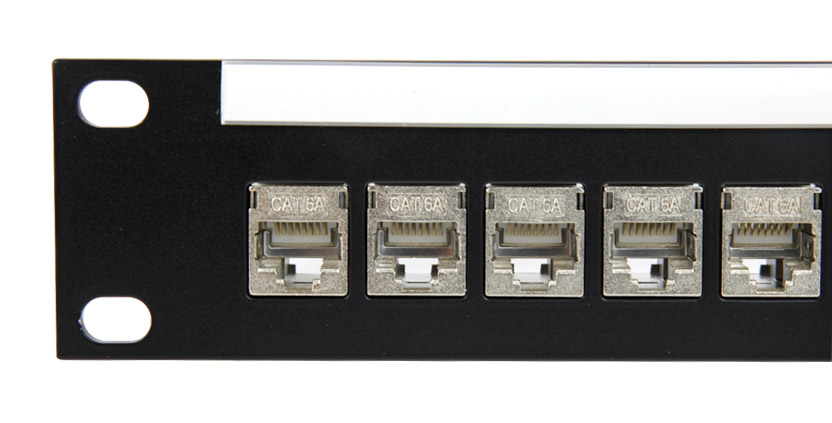

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x8 FEEDTHROUGH, Screened, black Black Stock code: 45-3534
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ £76.08
5+ £73.04
CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, Screened, black Black Stock code: 45-3535
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ £111.60
5+ £107.10
CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x24 FEEDTHROUGH, Screened, black Black Stock code: 45-3536
19 in stock Need more?
1+ £145.80
5+ £140.00
