NEUTRIK POWERCON AC MAINS POWER CONNECTORS - 20 Amp

27 items

'Powercon' offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the 'Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure Neutrik strain-relief chuck cable strain relief accepts cables 5-15mm diameter using the twistlock principle with metal latch (as on current 'Speakon' connectors) to lock the connection.
Note: for the NAC3FXXA & NAC3FXXB variants the -S denotes cable diameters of 6-12mm and the -L denotes cable diameters of 10-16mm.

NAC3FXXA-W-S Mains input Cable OD range 6-12mm
NAC3FXXA-W-L Mains input Cable OD range 10-16mm
NAC3FXXB-W-S Mains output Cable OD range 6-12mm
NAC3FXXB-W-L Mains output Cable OD range 10-16mm

Cable connectors have screw terminals (max. wire size 4mm), panel connectors have 'Faston' 4.8 ×0.5mm 'spade' terminals. NAC3MPXX panel connectors are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles. Panel connectors offer two plain holes for M3 screws and bolts offering D-series ‘Universal’ mounting.

The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.

Type A is for power inlet, and is colour coded blue (equivalent in function to IEC 60320 C13 cable female and C14 panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC 60320 type F panel female and type E cable male)

A number of accessories are available for use with the Powercon 20 Amp series:

42-025 In-line coupler to permit linking of cables, this has one type A and one type B connector
42-029 Red moulded PVC insulating cover for panel types
46-4022 Black moulded PVC insulating cover for panel types
43-047 Faston 4.8mm crimp spade terminals, for use with panel connectors
40-790 M3 tapped mounting frame for NAC3MP (fits behind connector to avoid using nuts)
40-793 Dummy plug, used to blank unused NAC3MP connectors
43-066 Dust protection cover for NAC3MPA and NAC3MPB, used when no connector is mated
40-77* Hinged cover for panel connectors, gives protection to IP54 when closed, available in several colours
40-76* Sealing gasket and colour coding for D-size panel connectors

Note 1: Cable connectors will only mate with their corresponding panel connector type. e.g. Mains Input cable connectors will only mate with Mains Input panel connector (both blue). Mains Output cable connectors will only mate with Mains Output cable connectors (both grey).

Note 2: Neutrik Powercon connectors are certified to the IEC 62368-1 standard which is defined as "appliance couplers for household and similar general purpose". If these connectors are required for use in a building installation, the installer must ensure that the necessary protective measures and applicable standards are complied with. This series of connectors can be used in an application such as a building installation, but Neutrik cannot offer certification or declaration of conformity for this use.

Note 3: Neutrik NAC3FXXA-W-L, NAC4FXXA-W-S, NAC3FXXB-W-L and NAC3FXXB-W-S are certified to be fully compatible with IEC 60320-1 and cUL 60320-1 standards meaning that they are accepted as components for cordsets according to IEC 60799, UL817 as well as equipment according to IEC 62368-1.

Description Price $
ex. VAT
Add to basket
Delivery
NEUTRIK NAC3FXXA-W-S POWERCON Mains input cable connector, 20 Amp, 6-12mm Stock code: 42-0020
351 in stock Need more?
1+ $9.11
10+ $8.29
50+ $7.83
100+ $6.92
NEUTRIK NAC3FXXA-W-L POWERCON Mains input cable connector, 20 Amp, 10-16mm Stock code: 42-0021
394 in stock Need more?
1+ $9.11
10+ $8.29
50+ $7.83
100+ $6.92
NEUTRIK NAC3FXXB-W-S POWERCON Mains output cable connector, 20 Amp, 6-12mm Stock code: 42-0022
152 in stock Need more?
1+ $9.11
10+ $8.29
50+ $7.83
100+ $6.92
NEUTRIK NAC3FXXB-W-L POWERCON Mains output cable connector, 20 Amp, 10-16mm Stock code: 42-0023
117 in stock Need more?
1+ $9.11
10+ $8.29
50+ $7.83
100+ $6.92

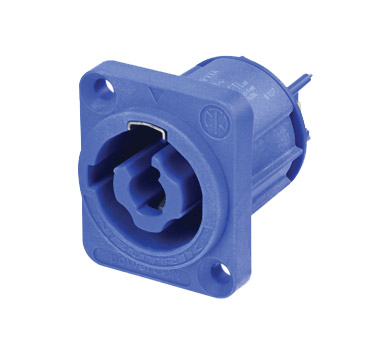

NEUTRIK NAC3MPXXA POWERCON Mains input panel connector, 20 Amp Stock code: 42-023
510 in stock Need more?
1+ $4.17
10+ $3.80
50+ $3.58
100+ $3.17
NEUTRIK NAC3MPXXB POWERCON Mains output panel connector, 20 Amp Stock code: 42-024
516 in stock Need more?
1+ $4.22
10+ $3.84
50+ $3.64
100+ $3.21
NEUTRIK NAC3MPXXA-WOT POWERCON Mains input panel connector, 20 Amp Stock code: 42-0391
69 in stock Need more?
1+ $4.22
10+ $3.84
50+ $3.64
100+ $3.21

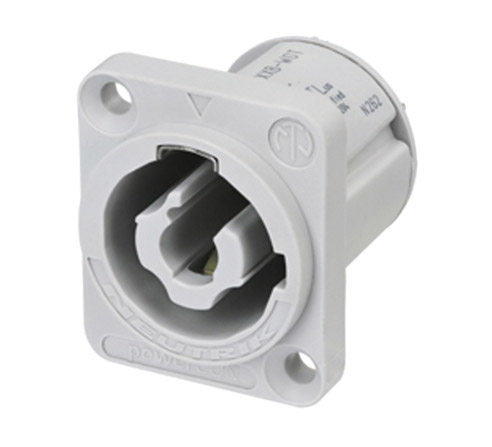

NEUTRIK NAC3MPXXB-WOT POWERCON Mains output panel connector, 20 Amp Stock code: 42-0392
104 in stock Need more?
1+ $4.22
10+ $3.84
50+ $3.64
100+ $3.21
NEUTRIK NAC3MM-1 POWERCON In-line cable coupler, 20 Amp Stock code: 42-025
48 in stock Need more?
1+ $24.68
10+ $22.45
50+ $21.22
100+ $18.75
CANFORD SCDR-NAC Insulating cover for NAC3MP, NAC3MPX-TOP, NAC3MPX-WOT-TOP panel connectors, red Red Stock code: 42-029
484 in stock Need more?
1+ $4.17
10+ $3.80
50+ $3.58
100+ $3.17
NEUTRIK SCDR Insulating cover for D-series panel connectors, black Black Stock code: 46-4022
14 in stock Need more?
1+ $2.36
10+ $2.14
50+ $2.02
100+ $1.79
NEUTRIK NLFASTON Crimp spade terminals 4.8mm (pack of 100) Stock code: 43-047
6 in stock Need more?
1+ $29.91
5+ $28.12
per pack
CANFORD MOUNTING FRAME Tapped M3, for Neutrik D-series and similar connectors Stock code: 40-790
5652 in stock Need more?
1+ $0.68
10+ $0.61
50+ $0.59
100+ $0.51
NEUTRIK NDL DUMMY PLUG, Speakon and Powercon Stock code: 40-793
Out of stock but available to backorder, stock expected: 23/01/2025.
1+ $0.82
10+ $0.74
50+ $0.70
100+ $0.63
NEUTRIK SCL Dust cover for NL2M*, NL4M*, NLT4MP*, NAC3MPA, NAC3MPB Stock code: 43-066
18 in stock Need more?
1+ $2.56
10+ $2.33
50+ $2.20
100+ $1.95
NEUTRIK SCDX-0 HINGED COVER For D-series connectors, black Black Stock code: 40-770
113 in stock Need more?
1+ $1.48
10+ $1.36
50+ $1.28
100+ $1.13
NEUTRIK SCDP-5 SEALING GASKET For D-series connectors, green Green Stock code: 40-765
1361 in stock No longer manufactured, available only while stocks last.
1+ $3.02
10+ $2.75
50+ $2.60
100+ $2.29
NEUTRIK SCDP-6 SEALING GASKET For D-series connectors, blue Blue Stock code: 40-766
1016 in stock No longer manufactured, available only while stocks last.
1+ $3.02
10+ $2.75
50+ $2.60
100+ $2.29
NEUTRIK SCDP-9 SEALING GASKET For D-series connectors, white White Stock code: 40-769
9 in stock No longer manufactured, available only while stocks last.
1+ $3.02
10+ $2.75
50+ $2.60
100+ $2.29

Discontinued products

NEUTRIK NAC3FCA-1 POWERCON Mains input cable connector, 20 Amp Stock code: 42-021
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK NAC3FCB-1 POWERCON Mains output cable connector, 20 Amp Stock code: 42-022
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDX-5 HINGED COVER For D-series connectors, green Green Stock code: 40-775
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDX-6 HINGED COVER For D-series connectors, blue Blue Stock code: 40-776
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDX-9 HINGED COVER For D-series connectors, white White Stock code: 40-779
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDP-0 SEALING GASKET For D-series connectors, black Black Stock code: 40-760
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDP-2 SEALING GASKET For D-series connectors, red Red Stock code: 40-762
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK SCDP-4 SEALING GASKET For D-series connectors, yellow Yellow Stock code: 40-764
No longer manufactured. See the product page for suggested alternatives.
