LANDE RACKS - Hinged rear sections - For Proline Series

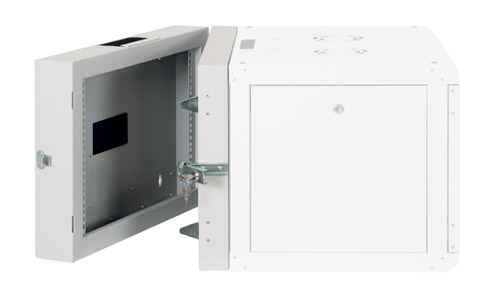

These upgrade the standard Lande Proline Series single-section wall cabinets by adding a rear section. This gives extra depth, but more importantly gives access to the rear of the equipment, without taking it out of the cabinet, while the cabinet remains fixed to the wall. The rear section which has two, hinged, parts, is fixed to the wall. The front section is attached, and can then be swung away for rear access when a lock is released. The rear sections can also be used in free-standing or under-desk applications, providing lockable access to the rear.

The rear section is 150mm deep overall. The split construction gives extra rigidity to the whole rack. The back part is 100mm deep, which fixes to the wall. This has cable access at the top and bottom via brushed entry ports, and in the centre of the rear panel, complete with a cover plate. The front frame, which is 50mm deep, is hinged to the rear section, and has fixings to connect it to the cabinet. When the rear section is fitted, equipment mounted in the front may extend back a further 50mm, without colliding with the rear section as the front section swings open. Alternatively, 19-inch panels may be mounted in the rear section, with 75mm clearance behind. (In this case, the equipment in the front must be chosen to avoid collision with the rear panels).

Finish: Light grey, RAL 7035, or black, RAL 9004, powder coat.
Maximum load in cabinet: 450mm deep: 50kg, 600mm deep: 35kg
