NEUTRIK ETHERCON CAT5E CONNECTORS - True outdoor protection - Cable types

The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are IP65 and UL50E rated when mated with related connectors from the TOP range.

The Ethercon TOP is a heavy-duty, locking, RJ45 system for outdoor applications, designed for data transfer interconnections where a more robust connector is required than the basic RJ45, optimized for pro audio, video and lighting network applications.

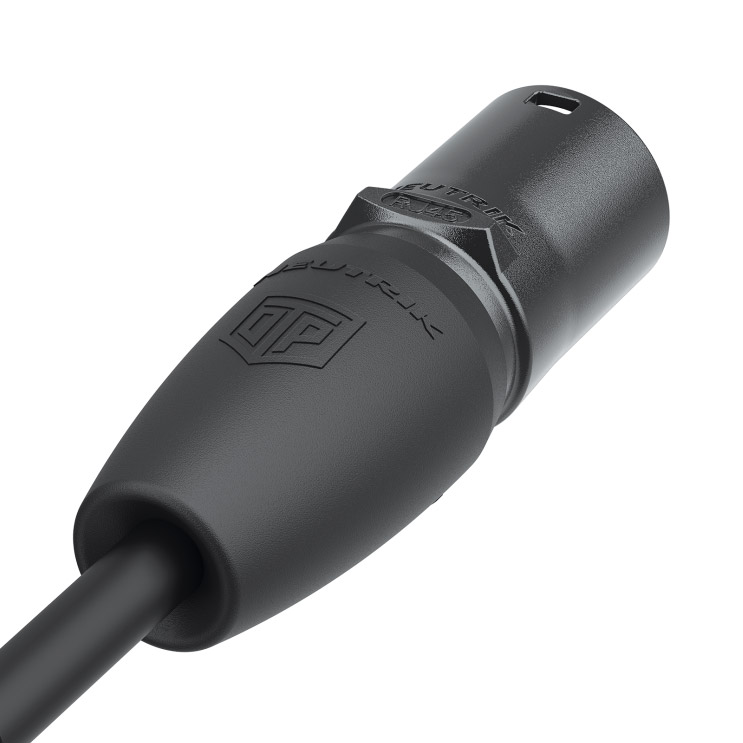

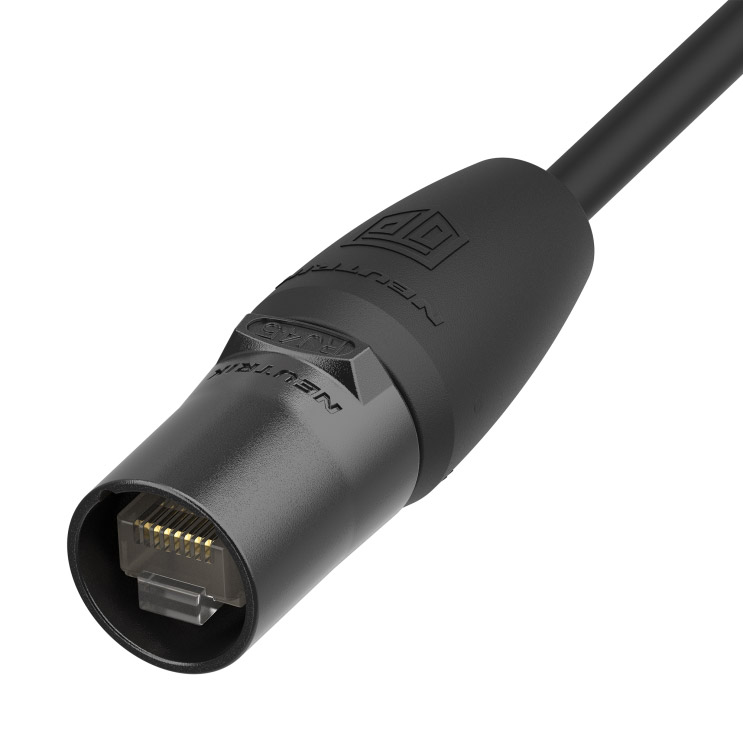

Cable connector carrier consists of a shell, chuck and boot. The NE8MX-B-TOP is suitable for cable diameters of 5-8mm, the NE8MX-B-TOP-14 is suitable for cable diameters of 8-10mm and the NE8MXR-B-TOP is suitable for cable diameters of 5.5-8mm.

Ordering note:

The cable carriers are designed for use with none pre-assembled cables only, they cannot be fitted retrospectively. All variants are supplied WITHOUT an RJ45 plug, which should be ordered separately as required. Please see RJ CONNECTORS for options.

Note: Does not intermate with NE8FDY-C6 and NE8FDY-C6-B.
